Product Details:
Payment & Shipping Terms:
|
Usage Scope: | Entrance Of Residential Area ,Park, Amusement Park;School;Play Center | Size: | 1400 X 330 X 1000 Mm (H) |
---|---|---|---|
Height Of Sliding Arms: | 1m, 1.2m, Or Custom-made 1.4 Meter | Material: | SS 304, Thick 1.5mm ~ 2.0mm |
Weight: | 70kg | Warranty: | 2 Years |
Pass Rate: | 35~40 Person/min | Type: | Single Core & Double Core,Fully Automatic Speed Lane Turnstile |
Communication Interface: | TCP/IP/R485 | Power Supply: | AC220V/110V |
Passage Width: | 600MM | ||
High Light: | turnstile security gate,security swing gate |

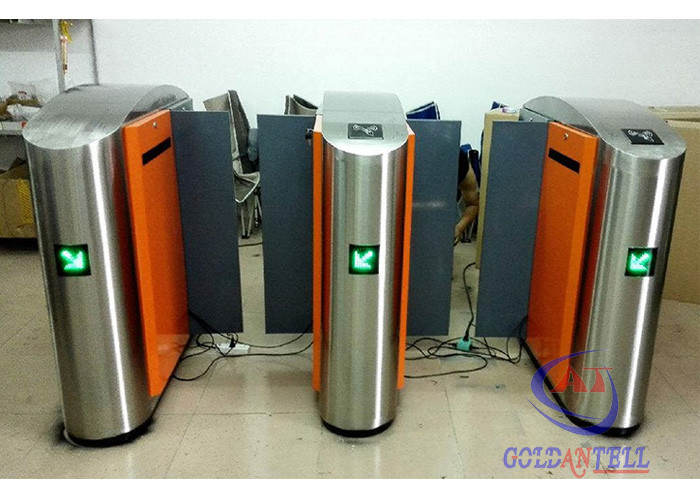

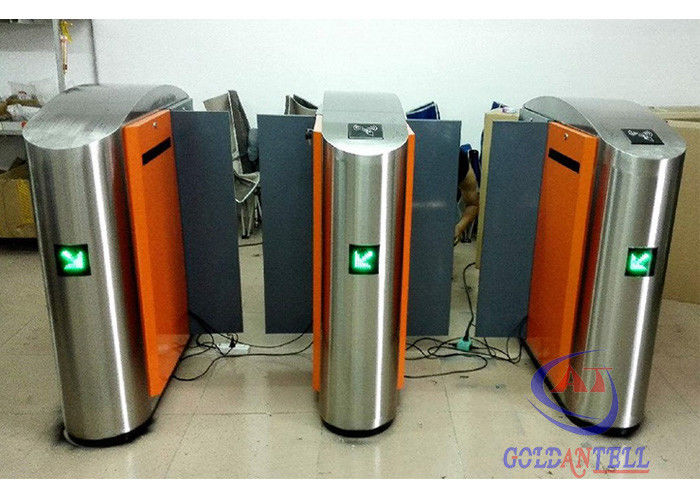

Speed lane flap barrier / speed gate / steel flap turnstile for airport access control
Working Performance
Specification
Product Model
|
GAT-647 |
Product Size
|
1400*300*1000mm |
Path width
|
in 900mm (for one pair) |
Direction
|
single or bi-directional (optional) |
Time of opening/closing
|
0.6 second |
Pass speed
|
40 persons/min (open), 25-30 persons/min (closed) |
Reset time after break down | 10 seconds |
Normal running life | 3 million |
Working environment | indoor/outdoor (with a tent over) -10℃~70℃ |
Drive motor | DC24V brush motor |
Indoor Application
Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
1 Speedlane type: customization for the shape of Retractable sliding arm: arc-shaped ( as below), standard is square
Field Installation
Assembly in factory
Function and characteristics
1. With function of self-examine and alarm, it is convenient for maintenance and use.
2. Being able to program running status by the small keyboard in the main board
3. Preventing pedestrians from being nipped and from hurt
4. Light and sound alarm function including the illegal in and the tail
5. Doors are automatically locked until opening signal is received.
6. Doors synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t passed through the channel in the pre-set time after the opening. The passing time is adjustable
8. Information display option (LCD display screen)
9. Audible sound prompt
