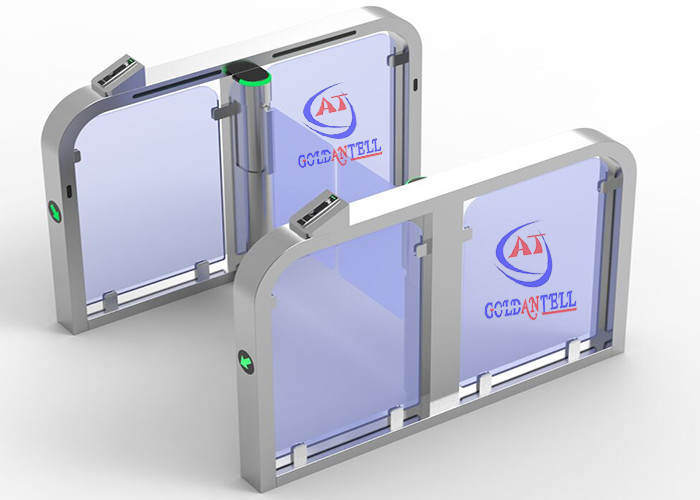

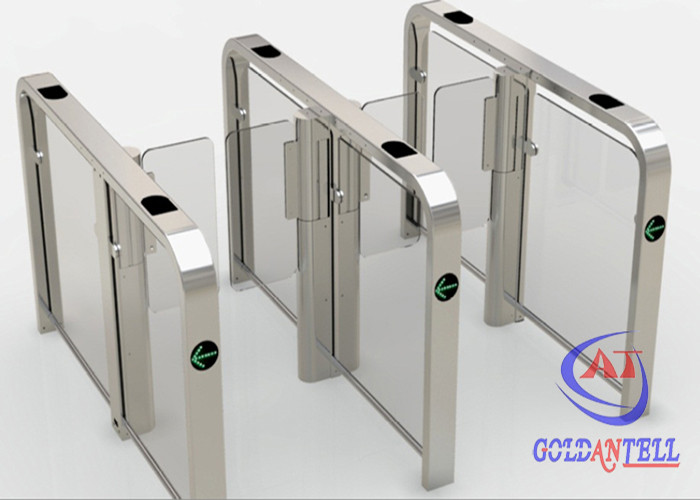

High Security Brushless Speed Gate Turnstile

High Security Brushless DC20V Motor Swing Speed Gate Turnstile RFID

Biometric Access Control Systems


Description

1. Goldantell smart translational swingspeed gate turnstile is s a high- tech product which mainly provides
intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing
barrier. this product is finely processed with complete functions and high level, suitable for high- level
neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
2. This equipment is subtly integrated with machine, electronics, micro- processor control and ID
identification, provides convenience for the use of card reader identification equipment, such as IC card,

ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway
through choosing various identification equipment and adopting fair, reliable security protection, alarming
equipment and direction indicating equipment...
3. Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);

Double motors (suitable for multiple passageways)

Functions & features
Goldantell Speed Gate Turnstile uses glass security barriers in conjunction with state of the art optical

technology to provide a high throughput security gate. The glass security barriers are designed to work in

a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the

authorised user to pass. The fast moving glass barriers close behind the authorised person to deter

tailgaters.


The barriers are positioned in the middle of the pedestal to allow true bidirectional control and automatic

free exit if desired. 3 variants are available: Compact, Standard and Wide; giving a lane width anywhere

between 550 mm to 914 mm. The Compact is a cost effective solution for areas with space constraints

and allows for lanes of 550 mm. The Standard variant gives a wider lane width of up to 700 mm, which is

greater than the industry standard and provides greater flexibility of movement to users, particularly when

they are carrying briefcases etc. The Wide variant is designed for wheelchair accessible lanes, giving a

lane width of 914mm.



Advantages:

More Secure - Different height glass barrier options available for Speed Gates to deter people from

climbing over.
- 24 beam IR detection matrix provides unsurpassed tailgate detection and deterrence; tailgaters are

detected following as close as 5 mm behind authorised users.

- Barriers are designed to close quickly and safely behind users after they have cleared the lane

therefore deterring tailgaters.


stage alarm response: early audible warning alarm followed by a secondary output for a higher security

response e.g. to trigger CCTV or lock doors.
Goldantell Throughput - Throughput of up to 1 pedestrian per second through Goldantell pedestrian

speed gates means a greater return on investment and often means fewer lanes are required, with less

wasted time in queues leading to greater user acceptance.
Intelligent Security Gates - Retracting or swinging glass barriers intelligently control traffic flow while

maximising throughput. Barriers stay open while additional authorised people walk through - even if they

are walking in the opposite direction.


Unsurpassed Accuracy - Virtually eliminates false alarms. The intelligence of Goldantell enables the

system to differentiate between body mass and small objects such as umbrellas etc. This increases user

and guard acceptance, avoiding "tune-out" from excessive false alarms.


Fast Throughput - The Goldantell Speedgates feature a Throughput Management system. When

activated the barriers stay open after an authorised entry for a defined period of time to await another

authorised card. This negates the need for the barrier to open and close in between authorised people at

peak traffic times.

Disabled Access - Goldatell Spee Gate can be installed in a number of ways to allow for wheelchair

access to make the installation compliant with the UK Disabilities and Discrimination Act (DDA) as well as

most similar international standards. Audio and visual feedback is provided as standard.


Easiest Installation and Ongoing Maintenance - CAT 5 interconnections provide plug ‘n' play

simplicity. Industry proven technology and onboard diagnostics to ensure maximum system up-time.



Safety - Goldantell Speedgates feature up to 8 safety beams designed to stop the barriers from moving in

the event that any of the beams are broken. The units feature a fire alarm input to allow for unimpeded

emergency egress and the units can be configured to fail safe in the event of power fail.

Specifications:





System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.





Site picture
