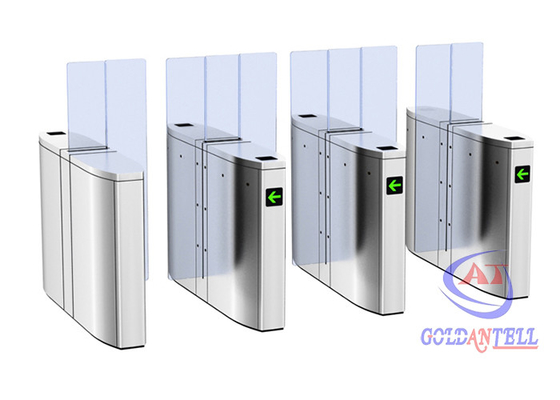

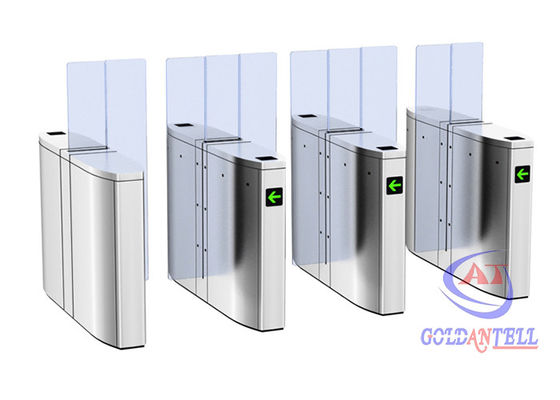

Luxury Speedlane barrier flap door optical rapid lane turnstile with visible LED high sliding glass

Luxury Speedlane barrier flap door optical rapid lane turnstile with visible LED high sliding glass
Luxury Speedlane barrier flap door optical rapid lane turnstile with visible LED high sliding glass

Large Image :  Luxury Speedlane barrier flap door optical rapid lane turnstile with visible LED high sliding glass

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-619
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 1,000pcs per month
Detailed Product Description
Glass Fence Height: 1.8m, 1.4m, 1.2m, Less Than 1m Type: Sliding Style High Speed Gate
Application: Airport,Office,hotel,hospital Entrance Passing Speed: 45persons/min
Housing Material: SUS 304 Dimension: 1400 * 310 * 1000 (mm),size Can Be Customized
Passage Width: 600mm Per Channel Power Supply: 110~240 V(AC)
Highlight:

turnstile security gate

,

waist high turnstiles

Luxury Speedlane barrier flap door optical rapid lane turnstile with visible LED high sliding glass



Brief Description

1. It is a upgrade product of intelligent flap turnstile and swing barrier.It has high glass panel that prevent user from climbing over the gate to gain unauthorized access.

2. Glass panel slides open horizontally to provide unobstructed passage way.It is finely processed with complete functions and high security level, suitable for high-level neighborhoods, commercial building, hotel, subway and club,etc.Its stylish design can easily fit into any modern contemporary building.



Technical specification

Item NO. GAT-619
Cabinet dimension 1400 (L) x 300 (W) x 1000 (H) mm
Cabinet material 304 stainless steel (316 ss can be custom-made)
Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
Flap opening/closing time 0.2s
Lane width 600 mm, or custo, 900mm
Access mode single in/out or Bidirectional
Optimal flow rate 40 persons/min (open),35 persons/min (closed)
Reset time after break down default 10s,can be changed to fit different demands



Security Features

Smart card reader compatible with a variety of card such as IC and ID card.

Can be expanded to automatic identification system, realizing function of access control, pedestrian flow control,attendance check or fare collection.

Equipped with international standard electrical interface, can be easily integrated with other R/W device, also can be controlled and management through remote supervision computer

Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian

LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.

Can open the turnstile by two input signals (signal can be input by access controller, button or other equipments)

Provide audible sound prompt and information display function.

The flaps will open automatically during power interruption, and recover N/C mode after poweron(optional)



GAT-619 DISPLAY

Visible sliding panels which can add colorful led lighting.

IR sensors

scanner or reader windows

Led directional indicator



Luxury Speedlane barrier flap door optical rapid lane turnstile with visible LED high sliding glass 0

GAT-619 Clear Photos

Luxury Speedlane barrier flap door optical rapid lane turnstile with visible LED high sliding glass 1



Luxury Speedlane barrier flap door optical rapid lane turnstile with visible LED high sliding glass 2
