Product Details:
Payment & Shipping Terms:
|
| Channel Width: | Single Wing In 600mm; Double Wing In 900mm | Application: | Sporting Venues / Gym / Buildings |
|---|---|---|---|
| Open Ways: | Rfid / Barcode / Ticket Scanner Approval | Size: | 1200 * 300 * 1000mm |
| Input Signal: | RS485/Remote | Switching Power Supply: | AC220±10%V 50Hz Or AC110±10%V 60Hz |
| High Light: | pedestrian turnstile gate,turnstile entry systems |
||

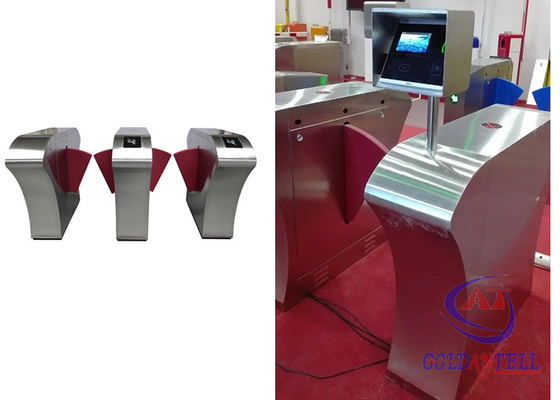

Bidirectional nfc access control scanner electronic turnstile enter insert card exit card acceptor flap turnstile GAT-214
Good Features & Functions
—SAFETY IS PRIORITY—
1. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
2. LED indicator function. LED indicator light is available at both directions to indicate if the lane is available to use (green arrow) or lane is closed for maintenance (red cross).
3. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
4. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.
5. Anti-tailgating/ anti-retrogradation function: Flap wing can be set to pause if IR sensor detected obstacle nearby wing area during closing. Flap will resume closing once the obstacle is removed. This is to make it very difficult for following user to tail gate the first user.
GAT-214 Technical Data
| Cabinet dimension | 1200/1400 (L) x 300 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap opening/closing time | 0.6-0.8s |
| Stretching-out flap length | 285 mm for single wing; if for the disable access, can lengthen |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s,can be changed to fit different demands |
Card Acceptor Specification
1,Collection card speed: less than 0.5 seconds
2,Card Size adaptation: 76-86MM (long), 53-56MM (width), 0.2-2.0MM (thickness)
3,Life: more than 500 million times
4,Communication and interfaces: RS485, RS232, I / O level
5,Operating temperature: -25 ° C ~ +70 ° C
6,Humidity: 10% -95% (non-condensing)
7,Shock resistance: in line with GB / T 2423.5-1995 second part of the relevant requirements
GAT-214 Standard design
GAT-214 Customized Series
|
No.1 |
No.2 the shape of retractable wings |
|
|
Our services
1. For all your inquires about us or our turnstiles, we will reply you in detail within 24 hours.
2. We own well-trained and passional sales & after- sale services who can speak fluent English language.
3. We offer OEM services. Can print your own logo on turnstile, can customize the retail box packing and other things.
4. We have very experienced engineers, can help you better use turnstiles.
