Product Details:
Payment & Shipping Terms:
|
| Product Name: | 304 SUS Tripiod Turnstile | Application: | Indoor&outdoor |
|---|---|---|---|
| Size Of Product: | 1200*280*1000mm | Package Size: | 1280*370*1090mm |
| Communication Port: | RS485 ,TCP/IP | Material: | 304 Stainless Steel/316 Stainless Steel |
| Type: | Half Height Swing Turnstile | Warranty: | 2 Years |
| OEM: | OEM & ODM Available | ||
| Highlight: | waist high turnstiles,turnstile entry systems |
||
Unique High Standard 304 Staniless Steel Swing Gate For Public Area Fast Pass 40 Person One Minute
Specification:
| Technical parameters | |
| Housing material | 304 stainless steel |
| Dimensions | L1200 x W280 x H980mm |
| Arm length | 550mm |
| Weight | 80Kg |
| Power of motor | DC24V |
| Voltage | AC220V±10% |
| Frenquency | 50Hz |
| MCBF | 5 million cycles |
| Transit speed | 40 persons/min |
| Operating environment | Indoor/outdoor (Shelter) |
| Operating temperature | -30°C ~ 60°C |
| Operating humidity | ≤95% no condensation |
Features
1. Problem-self-checking function.
2. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read,swing turnstile will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: if there is no open single, arm will be holding tightly.
9. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
11. Swing barrier can count how many passenger has passed and will show it in the LED display.
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Swing barrier can control the population inside in the control of software.
15. Stable running with little noise.
Application
Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition, Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special Access Control

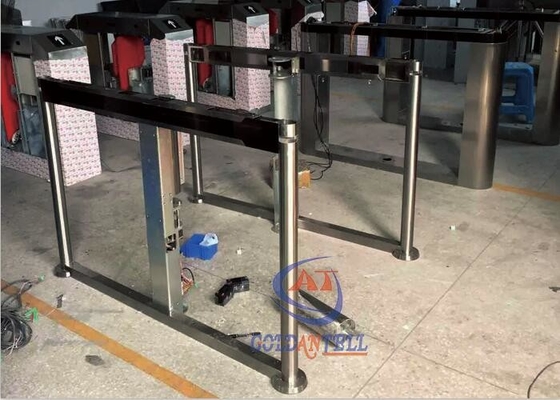

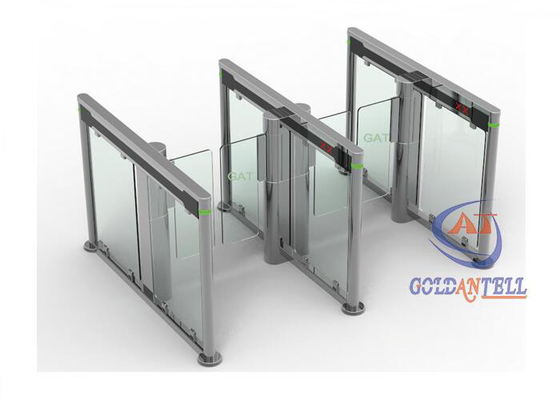

Product Pictures
