Passage Access Automatic Security Swing Barrier Gate For Metro Station / Stadium / University

  • Passage Access Automatic Security Swing Barrier Gate For Metro Station / Stadium / University
  • Passage Access Automatic Security Swing Barrier Gate For Metro Station / Stadium / University
  • Passage Access Automatic Security Swing Barrier Gate For Metro Station / Stadium / University
  • Passage Access Automatic Security Swing Barrier Gate For Metro Station / Stadium / University
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/SGS/IS9001
Model Number GAT-618
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details carton+wooden case/crate
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Swing Barrier Gate Type Full Automatic
Size Of Product 1400*200*1000mm Normal Running Life 5 Million
Communication Interface Standard RS485 Interface, Distance ≤1200m Wing Arm Angle 180 Degree
Direction Single Or Bi-directional (optional) Passage Width 600-1800mm For Optioin
Highlight

waist high turnstiles

,

turnstile entry systems
Leave a Message
Product Description



Passage Access Automatic Security Swing Barrier Gate For Metro Station / Stadium / University



Feature:



1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.

2. Running stable, no noise and no mechanical impact.

3. Self-checking-power-on function, if power on, turnstile will auto get to be held.

4. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.

5. If power off, arm will fall automatically while power on later, arm will be automatically lift.

6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.

7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.

8. It will count the persons who have been passed through automatically and will show the number by LED directly.(LED is optional).

9. Passing direction will be shown by LED and passengers will know which direction is allowed to pass.

10. Card reading memory or card reading without memory function can be set in the control panel menu according to your request.







Technial Parameters



Technical parameters
Housing material 304 stainless steel
Dimensions L1400 x W280 x H980mm
Arm length 550mm
Weight 80Kg
Power of motor DC24V
Voltage AC220V±10%
Frenquency 50Hz
MCBF 5 million cycles
Transit speed 35 persons/min
Operating environment Indoor/outdoor (Shelter)
Operating temperature -30°C ~ 60°C
Operating humidity ≤95% no condensation





Pictures

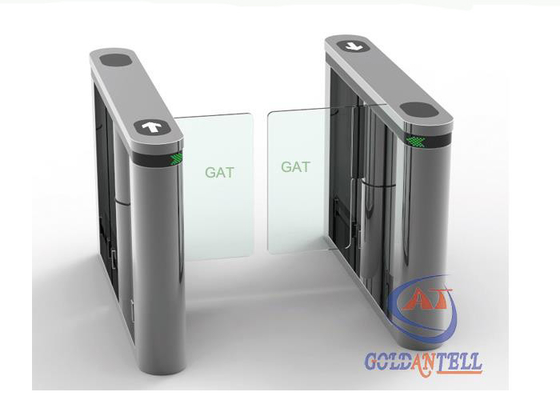

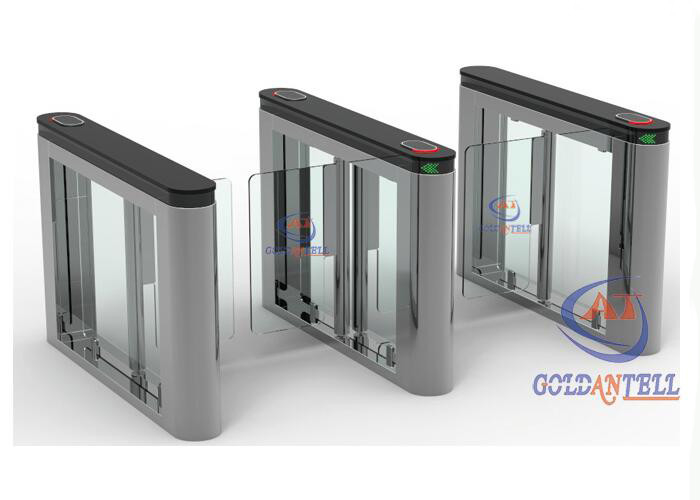

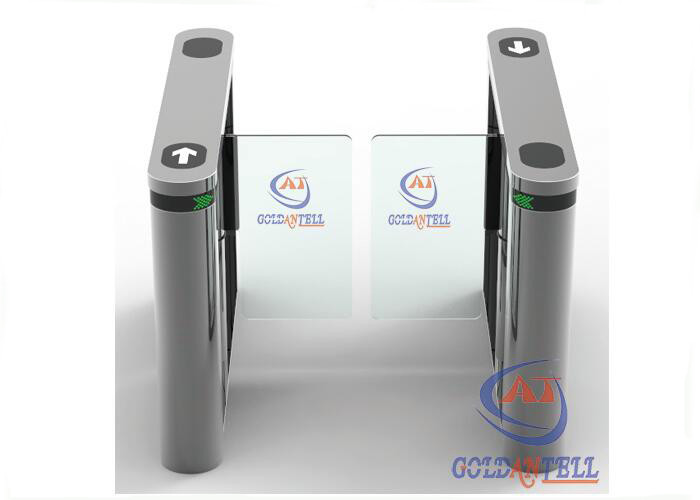

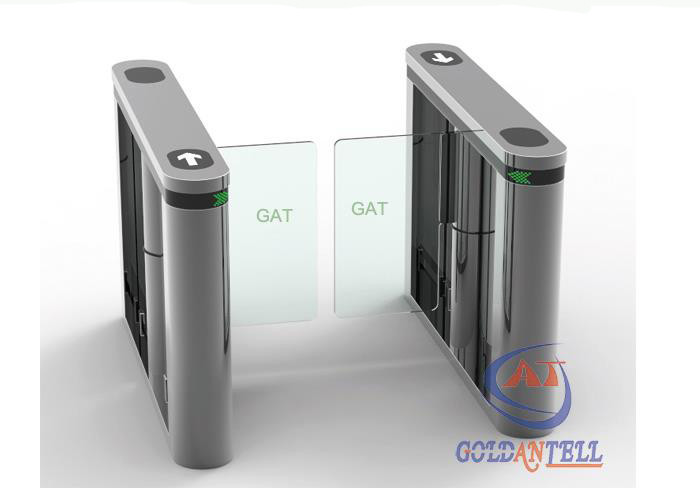

Passage Access Automatic Security Swing Barrier Gate For Metro Station / Stadium / University 0

Passage Access Automatic Security Swing Barrier Gate For Metro Station / Stadium / University 1





FAQ



1.What is the MOQ?



We accept 1 unit order.



2.Can you install for us?

We have engineer support you online or we teach your engineer how to install in our factory.

3.How about the warranty?

We provide 2 years warranty.

4.What about payment terms?

We accept L/C,TT,PAYPAL,WESTERNUNION.

5.How about lead time?

We will ship in 10-15 days after payment.
