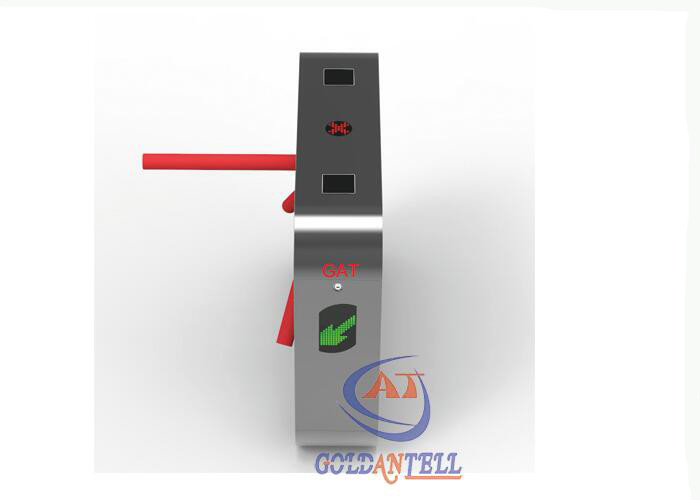

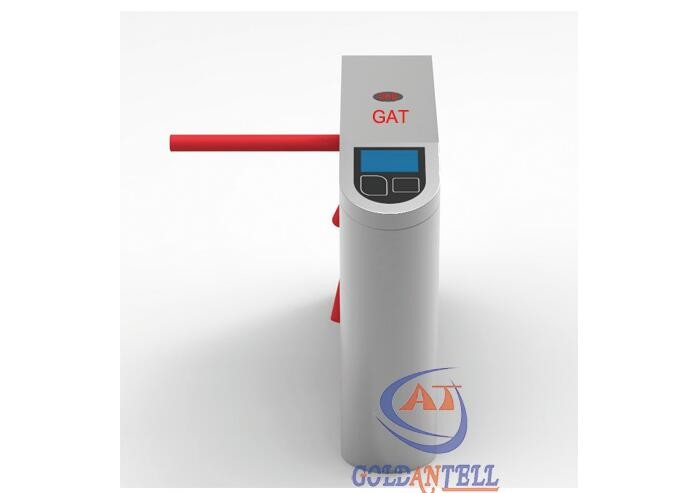

Security Access Control Turnstiles Bi Direction One Lane Half Full Height Tripod Turnstile

  • Security Access Control Turnstiles Bi Direction One Lane Half Full Height Tripod Turnstile
  • Security Access Control Turnstiles Bi Direction One Lane Half Full Height Tripod Turnstile
  • Security Access Control Turnstiles Bi Direction One Lane Half Full Height Tripod Turnstile
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/SGS/IS9001
Model Number GAT-318
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details carton+wooden case/crate
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Access Control Tripod Turnstile Material 304# Stainless Steel
Directional Bi-Direction(Can Be Set) Max Lane Width 550mm
Pass Speed 35person Per Min HS Code 8608009000
Communication Interface RS485, TCP / IP Net Weight Including Bars About 70kg
Warranty 2 Years Leading Time 7 Working Days
Highlight

waist high turnstiles

,

turnstile entry systems
Leave a Message
Product Description



Access Control Security Automatic Bi Direction One Lane Half Full Height Tripod Turnstile







Parameter:


· Material: 304stainless steel
· · work voltage: AC220V±10% 50HZ±10%
· · Core: DC24V solenoid valve
· · Size: 1200*280*980MM
· · Arm length: 500mm
· · Max bearing force : 80KG
· · Max lane width: 550MM
· · Rotation direction for arm: left or right, or bi-directional
· · Led direction indicator
· · Card reading window: standard or customized
· · Work envirnoment: indoor or outdoor, 10ºC~70ºC ,
· · relative humidity: :≤90%, no condensation
· · Barrier open time: 0.2s
· · Transit speed: 30 people/minute
· · Emergency : auto drop for arm
· · Normal work life: 3,000,000 times
· · Communication interface: RS 485, distance ≤1200m
· · Input interface: relay switch signal, 12V level signal or 12V pulse signal,
pulse width>100ms,drive current >10mA





Functions:



Functions and features full-auto semi-auto manual
Malfunction self-check and alarm reminder, ease of maitenance and use √ × ×
Running method can be set through small buttons on the control panel √ √ ×
How arm reacts in emergency drop automatically drop automatic no movement
How arm reacts when power on go up automatically go up by hand no movement
Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable) √ √ ×
Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on √ √ ×
Unique positioning, self reset, one arm always in the horizontal level √ √ ×
LED lamp indicator √ √ ×
when open signal is given, arm rotate to a certain degree √ × ×
how arm reacts when people passing rotate automatically push by hand push by hand
one direction or bi-direction flow control √ √ adjust by hand
work directly with PC for remote control and management √ √ ×
LED counter Display √ √ ×
Bi-direction Anti reverse rotation √ √ ×








Application Area:

Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on





Half Height Turnstile With Access Control:

Security Access Control Turnstiles Bi Direction One Lane Half Full Height Tripod Turnstile 0
