CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Alex Wong in Philippines

Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Asif Khan in Bahrain

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Michael Fusco in USA

I'm Online Chat Now

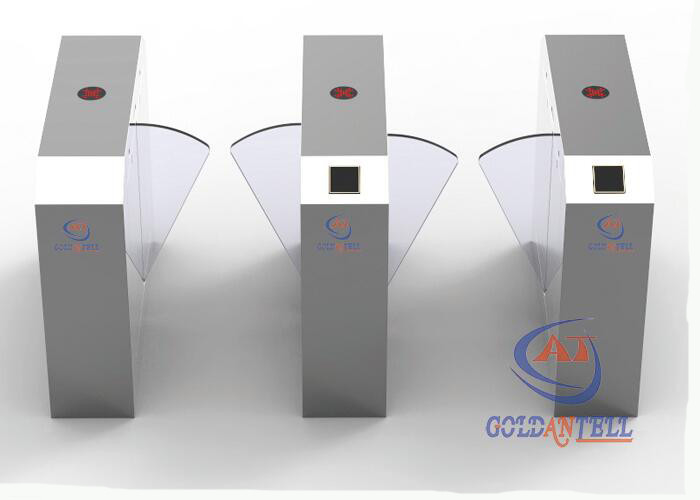

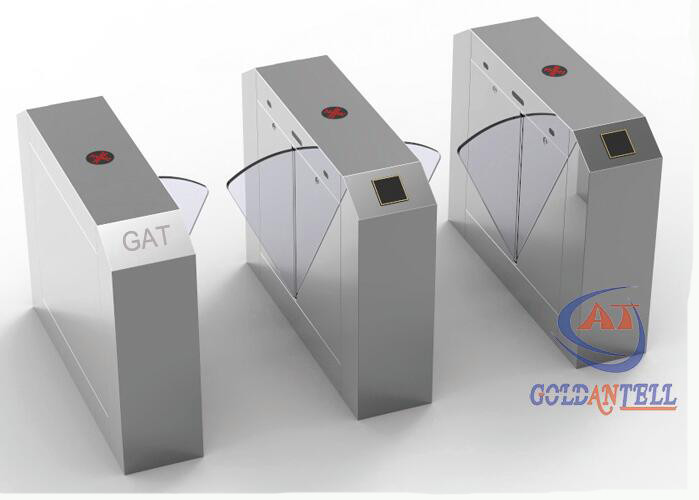

CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V

CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V
CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V

Large Image :  CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-206
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 10-12 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 1000pcs per month
Detailed Product Description
Product Name: Access Control Flap Turnstile Material: 304 Stainless Steel
Type: Full Automatic Gross Weight: 75KG/PC
Size: 1200/1400mm (L) * 300mm (W) * 1000mm (H) Drive Motor: DC24V Brush Motor
Passage Width: ≤600mm Normal Running Life: 3 Million
Working Voltage: AC220/AC110 ±10%V 50±10%HZ Warranty: 2 Years
Highlight:

waist high turnstiles

,

turnstile entry systems

 CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V





Product Parameter

Meterial of housing 304 Stainless Steel
Meterial of flap door Organic Glass & Resin for option
Width of passage 600 mm & 900 mm
Transit speed 30-40 Persons/min
Power supply 220V/110V±10% 50Hz, 110V±10% 60Hz
Working voltage of motor DC24V
Time for Opening or Closing 3 sec
Starting time after power on 3 sec, Adjustable
Working Environment Indoor / Outdoor (Shelter)
Working Temperature -25°C~50°C
Relative Humidity ≤95%, no condensation


CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V 0

CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V 1



Features & Functions:
(1) Directional VFD Optical Signals----Green Arrow or Red Cross signage
(2) Only one person can pass with one card
(3) Collect the break-in information
(4) Installed in indoor or outdoor
(5) Well lightning and grounding
(6) Multi-working mode----Forbidden, Controlled or Free Passing optional
(7) Easily integrated with any type of readers---such as Magnetic card, Barcode card, RFID Card and so on
(8) Card-swiping memory function
(9) Statistics collection automatically
(10) Manual release when meet the outside push
(11) NO/NC mode. In an emergency, the passage will be freely pass automatically
(12) Bi-directional passing or single way passing
(13) Self-inspection and alarm
(14) Can program the running status online by setting the built-in keys
(15) LED Counter, Direction indicator
(16) Infrared detector to sense the passing status.





Our stength:

Access control flap barrier, Stainless steel wing barrier, Flap barrier turnstile Gate
Quality is the life of our company!

1. 10 senior QC engineers with 3-5years working experience

2. Quality is controlled strictly from the very beginning of sourcing

by every stuff works in Goldantell company.

3. Whats more, Our company is equipped with high level testing machineries and labs:

A. Powder coating Test equipment, testing the quality of the powder, making sure the color does not fade in 3to 5 years.

B. High temperature aging test room, examining if the control panel functions normally in the high temperature environment.

C. Low temperature, humidity aging cabinet, examining if the control panel functions normally under the low temperature circumstances.

D. Tin stove, welding the control board and electronic parts all by ourselves.

4) Low-Returning rate as the rate of theSroducts returned for repair is 1percent.

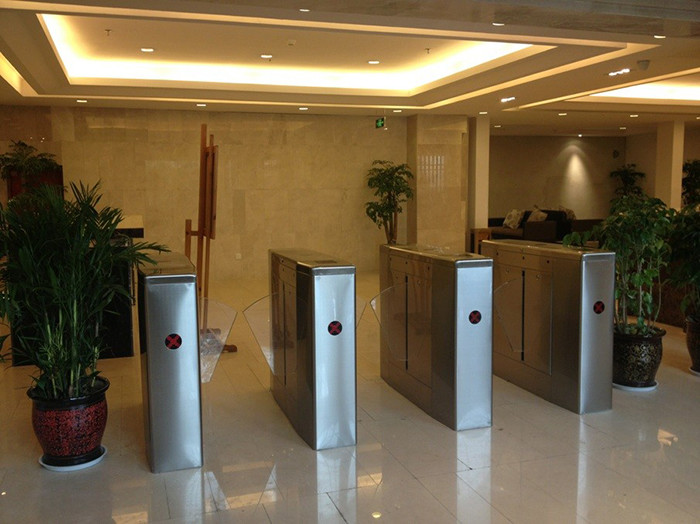

Application:

Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition, Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special Access Control

CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V 2





Packing&Delivery:

CE Approved Transparent Glass Access Control Flap Turnstile Retractable 110V / 220V 3





Our service:

Goldatnell with outstanding after service,2 years quality guarantee!
