Product Details:
Payment & Shipping Terms:
|
Product Name: | Access Control Tripod Turnstile | Size Of Product: | 1200mm (L) * 280mm (W) * 980mm (H) |
---|---|---|---|
Arm Width: | 510 Mm | Passage Width: | ≤600 Mm |
Material: | 304# Stainless Steel | Gross Weight: | 70KG |
Net Weight: | 65KG | Working Environment: | Indoor/outdoor (with A Tent Over) -10℃~70℃ |
Input Interface: | +12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA | Normal Running Life: | 3 Million |
Highlight: | pedestrian turnstile gate,waist high turnstiles |
Semi Automatic Access Control Tripod Turnstile Shock Absorption Motor Low Noise Long Life Time
Technical Data
TypeGAT-303 | Motor voltage | 24V | |
Dimension | 1200*280*980(mm) | Temperature | -25℃~+70℃ |
Net weight | 56kg | Environment | Indoor/Outdoor |
Lane width | ≤550mm | Input signal | Dry contact/Relay signal |
Housing material | 304 Stainless steel | Emergency open | Yes |
Surface finish | Standard hairline polish | IP | 67 |
Arm status when power off | Arm will be dropped down automatically | MCBF | 3.2million |
Pass rate | 35 persons/minute | Supply voltage | 100V~240V |
Control | Access control system/manual control when power off both directions are free | Optional accessories | proximity card reader, finger print reader, Bar code reader, access controller, Push Button, USP |
Features& functions
Architectural esthetic design, high quality brushing 304 SS, stainless steel frame.
The hydraulic shock absorber can not only avoid the equipment vibration well, but also ensure a smooth operation to achieve nice usage experience
Drop down arm design ensure users safety when emergency happened.
When the turnstile rotates over 60°,the arms will be locked automatically to stop it from rotating back to avoid the tailing people pass through.
Flexible extendibility. Operated by access control system and manual control both are available.
Easy installation and low cost maintenance due to modular design.

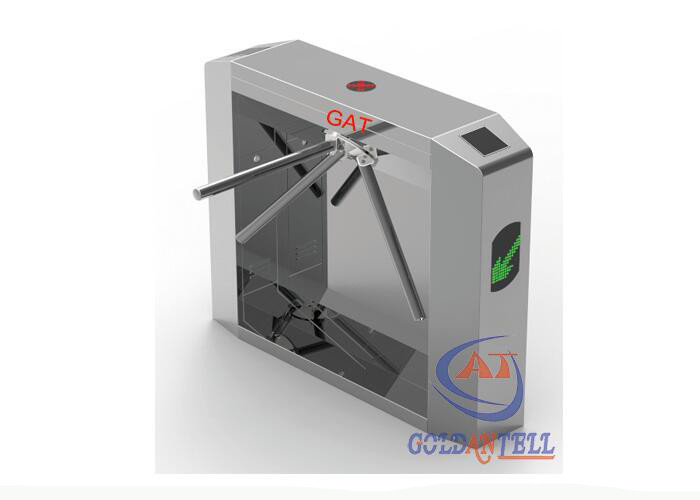

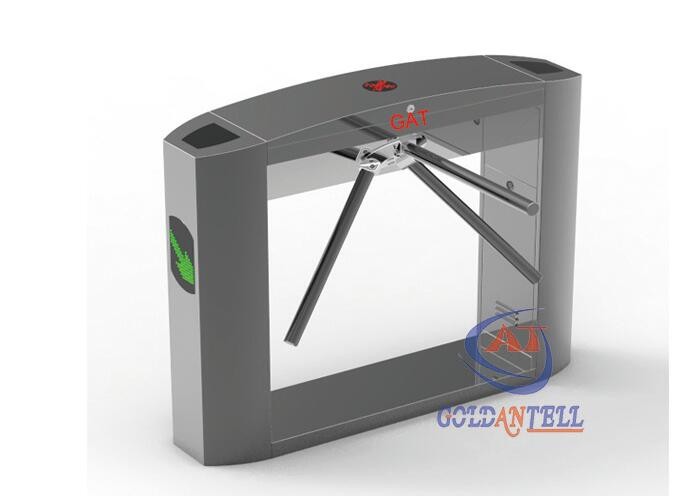

Detailed picture
Delivery detail
1 . If by sea,it normally takes 15-60 days depend on different countries.
2 . By UPS/DHL/FEDEX/TNT express which is door to door,it normally takes 3~ 5 days to arrive;
3 . By air cargo ,it takes about 2-7 days to arrive ;
Our services
1 . For all your inquires about us or our parking barrier locks, we will reply you in detail within 24 hours
2 . We own well-trained and professional sales & after- sale services who can speak fluent English language
3 . We offer OEM services. Can print your own logo on parking barrier locks , can customize the retail box packing and other things.
4 . We have very experienced engineers ,can help you better use parking barrier locks.
