Intelligent control Tripod Turnstile Gate / DC24V controlled access gates

Large Image : Intelligent control Tripod Turnstile Gate / DC24V controlled access gates

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-305

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal, L/C
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Motor:	DC24V Solenoid Valve	Housing Material:	Domestic Standard 304# Stainless Steel
Time Of Opening/closing:	0.2second	Passage Width:	600mm
Application:	Indoor And Outdoor	Input Interface:	+12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA
LED Light:	Direction Arrow	Direction:	Single Or Bi-directional (optional)
Arm Width:	530-550 Mm	Normal Running Life:	3 Million
Highlight:	pedestrian turnstile gate , turnstile entry systems

Intelligent control Tripod Turnstile Gate / DC24V controlled access gates

Specifications:

Item	GAT-305
Working voltage:	AC220±10%V 50±10%HZ
Time of opening	0.6second
Passage width	600mm
Reset time after break down	10 seconds
Integration	machine, electronics, micro-processor control and ID identification
Direction:	single or bi-directional (optional)
Transit speed	30-40 people/minute

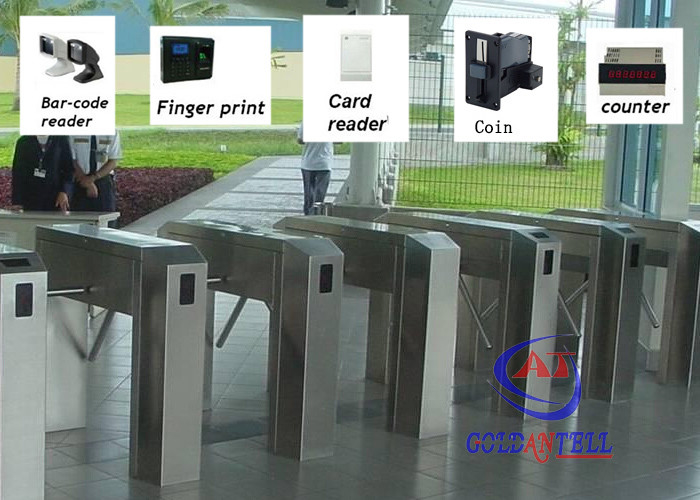

Input interface:	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, Bar code System,ESD Tester Access Control, remote button
LED light	direction arrow
Relative humidity	≤90% coagulation free

Appearance, Dimension, Material & Surface Finish

Appearance: customized according to customer’s requirement.
Material of the cabinet: 304 / 316 grade stainless steel.
Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Surface finish of the cabinet: satin finish / polishing / anti- fingerprint/frosted finish / electroplating /baking finish

Brief Introdutions:

Multiple-lane turnstiles GAT-305 is mainly installed in entrance and exit of shopping mall which has a large flow rate; it is most popular in supermarket.

multiple-lane turnstiles GAT-305 is designed to work in a normally closed mode and retract inside the pedestal, normally free exit by sensors, and entrance forbidden.

multiple-lane turnstiles GAT-305---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.

Detailed Profiles:

Direction Indications:

The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized

Application:

1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
Attendance.

3. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.

Intergration:

The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized
