Vertical Tripod Access Control Turnstiles 420mm ( L ) * 330mm ( W ) * 990mm ( H )

  • Vertical Tripod Access Control Turnstiles 420mm ( L ) * 330mm ( W ) * 990mm ( H )
  • Vertical Tripod Access Control Turnstiles 420mm ( L ) * 330mm ( W ) * 990mm ( H )
  • Vertical Tripod Access Control Turnstiles 420mm ( L ) * 330mm ( W ) * 990mm ( H )
  • Vertical Tripod Access Control Turnstiles 420mm ( L ) * 330mm ( W ) * 990mm ( H )
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/SGS/IS9001
Model Number GAT-306
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details carton+wooden case/crate
Delivery Time 7 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Small Size Turnstile Material 304 Stainless Steel
Net Weight 40kg Size 420mm (L) * 330mm (W) * 980mm (H)
Working Environment Indoor/outdoor (with A Tent Over) -10℃～70℃ Relative Humidity: ≤90% Coagulation Free Time Of Opening 0.2 Second
Normal Running Life 3 Million Communication Interface Standard RS485 Interface, Distance ≤1200m
Direction Single Or Bi-directional (optional) Warranty 2 Years
Highlight

pedestrian turnstile gate

,

turnstile entry systems
Leave a Message
Product Description

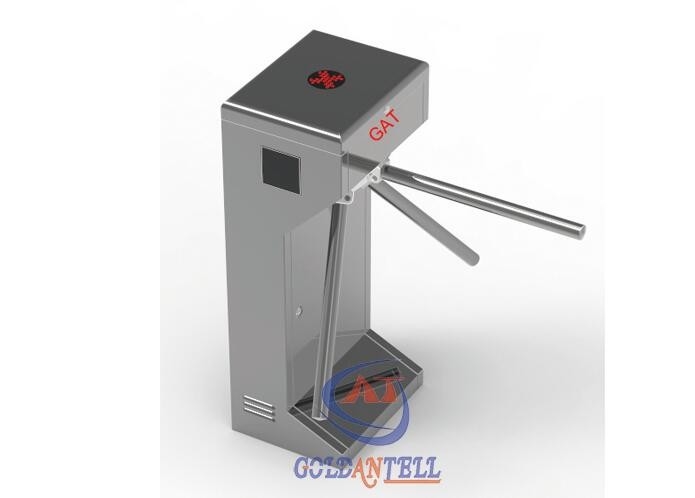

Small Space Vertical Tripod Turnstile Size 420mm ( L ) * 330mm ( W ) * 990mm ( H )





Features of Goldantell Turnstile:



1.Turnstile can setting the working condition by press the button of main control board.

2.Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.

3.Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off.

4. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you)

5. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on





Technical Data:



Technical Parameters of Goldantell Vertical Tripod Turnstile GAT-306

Main performance parameters
Size
mm
420*330*980
Bar Length
mm
510
Weight

kg

 45

Main Features
Barrier open time
s
0.2
Travel speed (max. & min.)
°
<=30
MCBF
cycles
3,000,000

Main Functions
work voltage
v
AC220V±10% 50HZ±10%
Input signal optional
.
DC12V level signal or DC12V pulse signal
Communication interface
.
RS485 or TCP

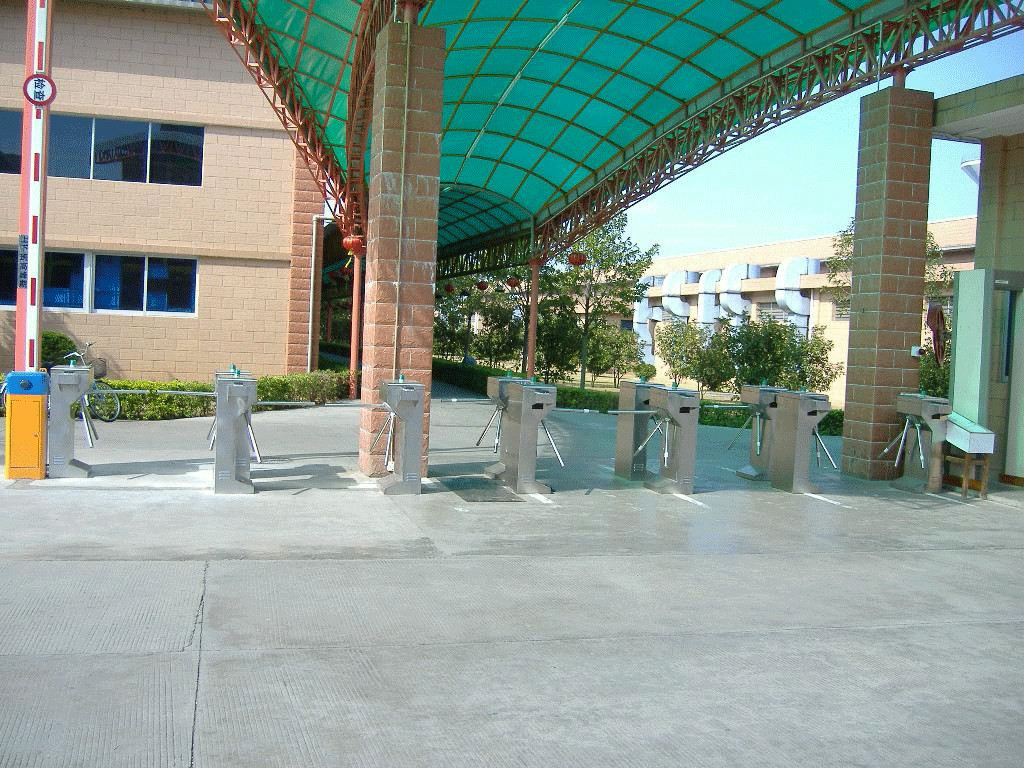

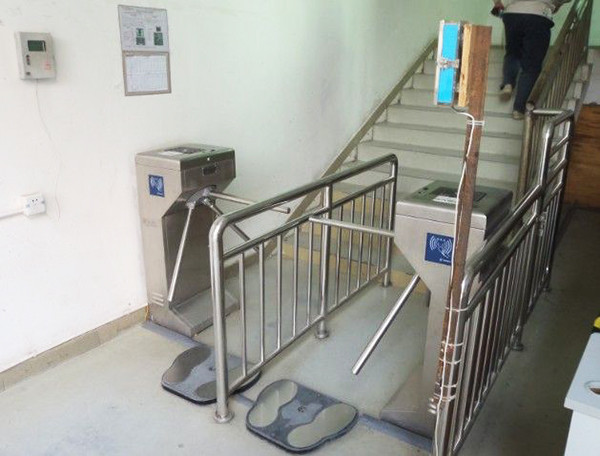

Applications:



This item is widely used



Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.





Goldantell Turnstile Procedure​:



Vertical Tripod Access Control Turnstiles 420mm ( L ) * 330mm ( W ) * 990mm ( H ) 0



FAQ:



Vertical Tripod Access Control Turnstiles 420mm ( L ) * 330mm ( W ) * 990mm ( H ) 1



Our Services:



1.you dont need to worry about the aftersale service, we got good aftersale service for you to do replacement and whole lifetime repair.



2 . you dont need to worry about the installation and technical problems, we got 9 year expericed engineer always stand-by for your service.



3.you dont need to worry about that we will cheat you about the money. you got alibaba trade assurance, you can totally rely on alibaba.
