Product Details:
Payment & Shipping Terms:
|
| Product Name: | Luxtry Electronic Tripod Turnstile | Materail: | 304 Stainless Steel |
|---|---|---|---|
| Dimension: | 1200*280*980mm | Operating Environment: | Indoor/Outdoor |
| Communication Interface: | RS485, TCP/IP | Finish: | Brushed Surface |
| Delivery Way: | Sample Normally By Air Cargo Or Express,quantity Purchase By Sea | Warranty: | 2 Years |
| Trade Terms: | EX-W,FOB,CIF,DDU（select Area) | Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Highlight: | waist high turnstiles,turnstile entry systems |
||

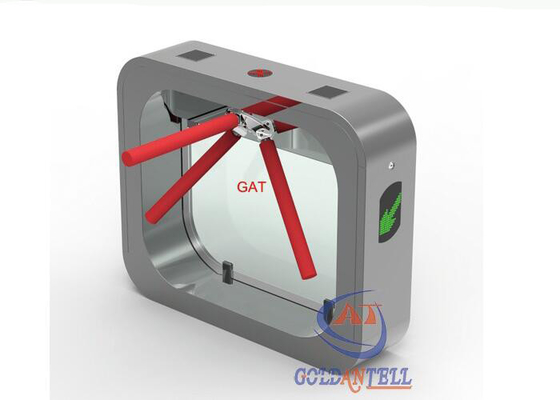

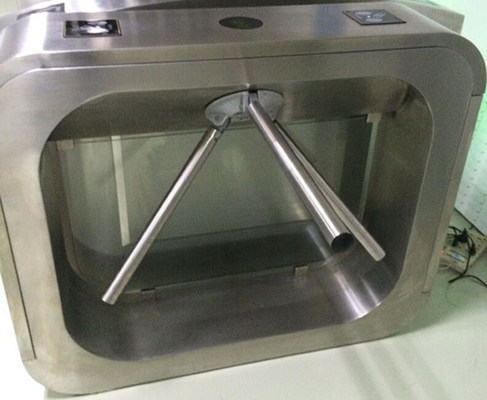

Luxtry Electronic Tripod Turnstile , Custom Size Turnstile Security Systems for High Class Building
1.Technical Parameters
| No. | Item | Specification |
| 1 | Model | GAT-342 |
| 2 | Type | Auto |
| 3 | Dimension: | 1200*280*990mm |
| 4 | Power | AC220C±10V,50HZ |
| 5 | Operating Temperature | -20°C-60°C |
| 6 | Relative Humidity | <95%, No Sensation |
| 7 | Communication Distance | ≤1200m |
| 8 | Passing Speed | ≤40 Persons/min |
| 9 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
| 10 | Communication Connection | RS485 Communication |
| 11 | Material | SUS304 or Carbon Steel Powder Coating |
| 12 | Protection class | IP54 |
| 13 | Color | SSB(US32D)- Stainless Steel Brushed / Powder Coating/Customized Color |
| 14 | Application | Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on |
| 15 | Optional |
1.Counter and counter display 2.Access controller or card reader 3. Key by-pass |
2. Functions and Features:
1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.
2. Running stable, no noise and no mechanical impact.
3. Self-checking-power-on function, if power on, turnstile will auto get to be held.
4. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5. If power off, arm will fall automatically while power on later, arm will be automatically lift.
6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
8. It will count the persons who have been passed through automatically and will show the number by LED directly.(LED is optional).
9. Passing direction will be shown by LED and passengers will know which direction is allowed to pass.
10. Card reading memory or card reading without memory function can be set in the control panel menu according to your request.
11. If working with software, the total-in-population can be set to satisfy special request.
12. Re-position function. After card reading, if passenger not through within the specific time, system will auto cancel passing right for this time and the limit passing time length can be set.
13. Card Mounting is available.
14. Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more reliable and accurate.
3 . Application
Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on
