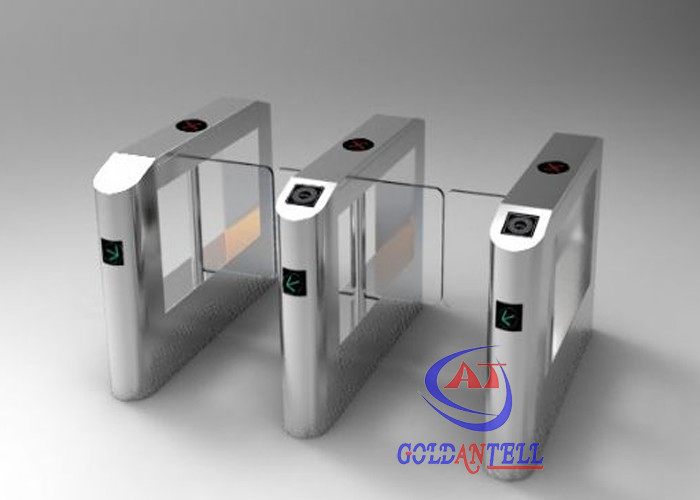

Sliding Baffle security turnstiles with alarming equipment and direction indicating

Large Image : Sliding Baffle security turnstiles with alarming equipment and direction indicating

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-616

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal, L/C
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Sliding Baffle Swing Barrier Gate With Alarming Equipment And Direction Indicating	Motor:	DC24V Solenoid Valve
Compatible:	RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button	Time Of Opening/closing:	1 Second
Passage Width:	530-830mm	Pass Speed:	Pass Speed: 40 Persons/min (open), 25-30 Persons/min (closed)
Material:	304 Stainless Steel	Communication Port:	RS485 ,TCP/IP
OEM:	OEM Arm Length,custom Logo,custom Size
Highlight:	waist high turnstiles , security swing gate

Sliding Baffle security turnstiles with alarming equipment and direction indicating

Specifications:
Item	GAT-616-1( single motor ) GAT-616-2( double motors )
Working voltage:	AC220±10%V 50±10%HZ
Time of opening	1-2second
Pass speed:	40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down:	10 seconds
Direction:	single or bi-directional (optional)
OME	OEM arm length,custom logo,custom size
Input interface:	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, Bar code System,ESD Tester Access Control, remote button
Time to work after power on	3 seconds

Function:

1. The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)

4. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.

5. Before received the open signal, the turnstile will lock automatically

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.

7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs

8.The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on

9. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)

10. Can manager and long-range control the turnstile directly by managing the computer.

Extended Function:

1.LED counting function

2.Box house can lengthen, swing arm lengthen

3.Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared)

4. Normally open or closed can be adjust to meet the requirements of the different place.

5.Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately

6.Voice Prompt Function

7.Sound and light alarm prompt functions

Application:
