Rfid System Speed Gate Turnstile Access Control For Metro Railway Subway

Rfid System Speed Gate Turnstile Access Control For Metro Railway Subway

Technical parameters

1 . Housing material: domestic standard 304# stainless steel, 2.0mm thickness
2 . Working voltage: AC220/110 ±10%V , 50±10%HZ
3 . Drive motor: DC24V brush motor
4 . Size: 1400mm (L) * 330mm (W) * 1000mm (H)
5 . Retractable arm length: 235 mm(custom)
6 . Passage width: within 600 mm
7 . Working environment : indoor/outdoor (with a tent over)-10℃~70℃
8 . Communication interface: standard RS485 interface, distance ≤1200m
9 . Pass speed: 40 persons/min (open), 30 persons/min (closed)
10 . Input interfac: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
11 . Normal running life: 3 million

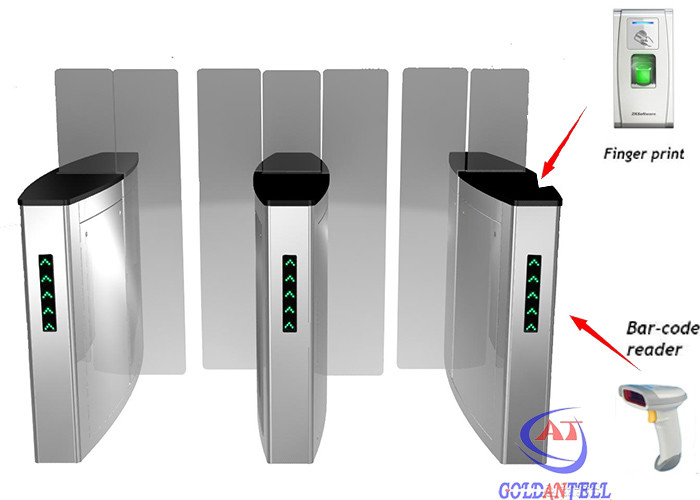

The intergration of sliding turnstile

Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&Barcode System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote(this is free gift to you).

Direction Indicator

The installation position of direction indicator can be adjusted.

The pattern of direction indicator can be customized.

Application

Subway Station, Bus Station,Airports, Hoverport, Terminal,Tourism Sports,Exhibition,

Hotel,Factory,Bank,Prison,Hospital,School,Library,Theater,Canteen,Swimming Hall,Fitness Gym,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management,Special Access Control..

Standard functions & features

1)Alarm function: when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. Self-examine

2)Function: it is good for customer to maintain and use.

3) Turnstile can set the working condition by press the button of main control board.

4) Anti-pinch function: turnstile have Mechanical / infrared induction Anti-pinch functions (when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed),small intensity (≤2Kg).

5) The turnstile will close the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.

6) Before received the open signal, the turnstile will lock automatically.

7) The retractable can be adjustable (specific to double swing gate).

8) Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the

system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). Totally

meet the fire protection needs.

9) Infrared sensor reset, infrared induction anti-pinch function (3 or 5 infrared optional).

10) The turnstile can work with door access control system/ consumption system / biometric recognition system/ ESD system and so on.

The package

Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:crate package and closed wooden package.
