Product Details:
Payment & Shipping Terms:
|
Type: | Vertical Tripod Turnstile | Size Of Product: | 420mm (L) * 330mm (W) * 980mm (H) |
---|---|---|---|
Package Size: | 500mm (L) * 410mm (W) * 1060mm (H) | Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
Communication Port: | RS485 ,TCP/IP | Application: | Pulic Toilelt, Park, Office Building, Club, Etc. |
Net Weight: | 55KG | Gross Weight: | 60KG |
Material: | 304 Stainless Steel/316 Stainless Steel | ||
Highlight: | waist high turnstiles,turnstile entry systems |
M1 Card Reader Pedestrian Vertical Tripod Turnstile Gate Access
Control Portable
Vertical Tripod Turnstile Gate Specifications:
Item Number | GAT-306 |
Technical Parameters | |
Size | 420mm (L) * 330mm (W) * 980mm (H) |
Working voltage | AC220±10%V 50±10%HZ |
Working movement | DC24V solenoid valve |
Arm width: | 510 mm |
Support force of arm: | 60kg |
Passage width: | ≤600 mm |
Time of opening: | 0.2 second |
Pass speed: | 30 persons/min |
Emergence: | When power off, arm open |
Normal running life: | 3 million |
LED light: | direction arrow |
Direction: | single or bi-directional (optional) |
Working environment: | indoor/outdoor (with a tent |
Relative humidity: | ≤90% coagulation free |
Communication interface: | standard RS485 interface, |
Housing material | domestic standard 304# |
Input interface: | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Comparison of three kinds of tripod turnstiles:
Tripod turnstile function & Features | Fully | Semi | Manual |
1. Turnstile can setting the working condition by press the button | √ | √ | × |
2. Auto-lift-arm function: the arm can lift automatically with alert | Auto- | Auto- | NO action |
3. Auto- drop- arm function: the arm can drop down automatically | Auto-lift-arm | manual- | NO action |
4. Automatic Reset Functions: after you swap the card, during | √ | √ | × |
5. The turnstile can work with door access control system/ | √ | √ | × |
6. Once an open signal is give, the arms will rotate | √ | √ | × |
| √ | √ | × |
| Automatic-rotation | manual | manual |
| √ | √ | × |
| √ | √ | × |
| √ | × | × |
| √ | √ |
Competitive Advantage:
Our advantage:
Communication with customers:
1 - Does the turnstile come with a RS485 PC software?
The turnstile itself doesn’t come with a RS485 PC software,you need purchase the RS485 door access control and card reader.But we suggest you purchase TCP/IP door access control and card reader.Because it doesn’t need converter,and use internet cable it can directly communicate with a computer.Compare with RS485 door access control,It is more convenient and transfer speed much faster.
2- Can I communicate the turnstile direct with a PC?
No,you can’t communicate the turnstile directly with a pc,because the main board just out put low level signal,but pc can not receive low level signal,so the turnstile must connect a door access control then can connect with a pc.
3 - They come with the complete command manual (if we want to develop our own software)?
For normal passage control,we have compete command manual for you.,Many clients from different countries use our software,don’t need second develop.If your company has the ability to develop your own software, we can provide SDK to you.
4- can I use just one access control control 2 pcs turnstile?
You can use one one access control for double doors to control 2pcs turnstile,but the 2 turnstiles must be very close,because if the distant is far,first,it will not convenient to set up the cable,second the single will be less then can influence the whole facility.So,for 2 doors,we suggest you use 2 access control.

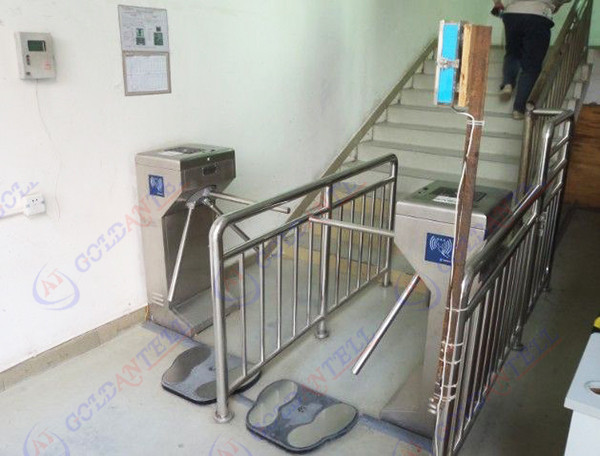

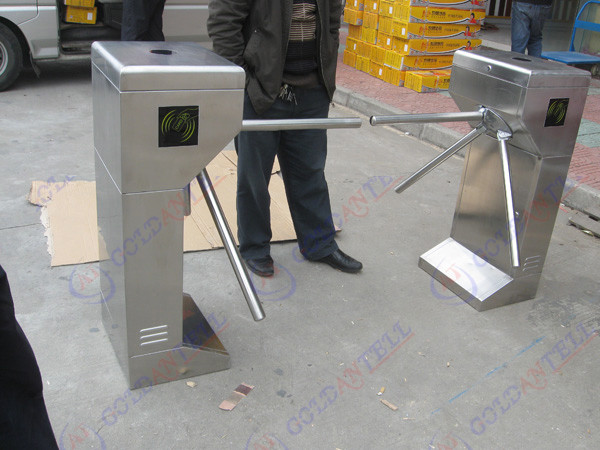

Vertical Tripod Turnstile Gate Picture:
