Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
Product Details:
Payment & Shipping Terms:
|
Product Name: | Tripod Turnstile Mechanism | Application Place: | Gym , Amusement Park , Stadium , Pulic Area , Office Building , Club, Etc |
---|---|---|---|
Gross Weight: | 70KG | Material: | 304 Stainless Steel Or 316 Stainless Steel |
Size Of Product: | 1200mm (L) * 280mm (W) * 980mm (H) | Package Size: | 1280mm (L) * 360mm (W) * 1070mm (H) |

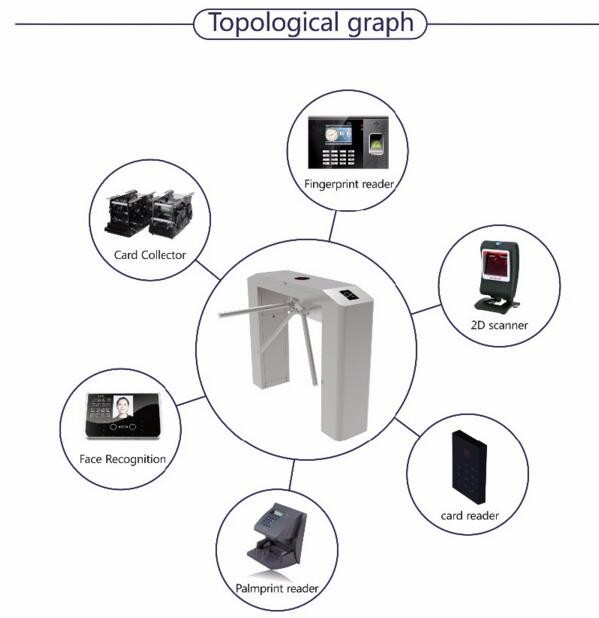

Compatible: | RFID Reader & Fingerprint Reader , Coin Acess , QR Code Reader,Bar Code System ,ESD Tester Access Contro L, Remote Button | Communication Port: | RS485 ,TCP/IP |
OEM: | Cusotmize Logo , Cusotmize Shape , Customize Color | ||
Highlight: | waist high turnstiles,turnstile entry systems |
Entry Semi Auto Access Control Subway Turnstyle Mechanism Cusotmize
Tripod Turnstile MechanismSpecifications:
Overall Dimension | 1200×280× mm |
Weight | 90kg |
Tripod Arm Length | ≤500mm |
Housing Material | SUS(304#),thickness is no less than 1.5mm |
Working Voltage | AC220V±10%,50HZ±10% |
Drive Motor | DC brushed motors(12V) |
Passage Width | ≤600mm |
MCBF | 3,000,000 cycle |
Communication Interface | TCP/IP |
Passing Speed | 30~50 people/min |
Readable Cards | IC/ID card |
Operating Time | 1s |
Protection Grade | IP54 |
Working Environment | Indoor; Outdoor (with shelter) |
Working Temperature | -40°C~60°C |
Relative Humility | ≤95%, no-condensation |
Operating Places |
Government agency, Subway station, Residential area, School, Enterprise, Factory, etc. |
Functions & Features
1 - Available in single walkway or bi-directional passage
2 - A valid lock action can allow one passage at one time
3 - It will lock automatically if passage through turnstile is not completed within pre-set time, the 4-set time
can be set up with the built-in small keyboard or software.
4 - Emergency configuration: the tripod will drop automatically by power off to provide a clear walkway for
escape in the event of an emergency
5 - Anti backup function to prevent reverse rotation once the arm has move 60 degree from home
6 - Interface: one standard port-RS485
7 - Control panel with count and LED digital function
8 - Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a
green arrow indicate the direction of allowable passing
FAQ:
1 - Can you install RFID card reader on the turnstile?
Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd
system,etc.
2 - How about the guarantee and after sale service?
We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who
can speak fluent English language
3 - How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer
4 - How about the payment terms?
TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order
security.
5 - How do you send the product to me,how long?
For sample,normaly send by air or express,about 3-5 days
For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.
6 - Can you do OEM service?
We offer below OEM services:
1 ) We can make custom design turnstile,or you tell me your requirements ,we can make a design for you.
2 ) Can print your logo on turnstiles, can customize the retail box packing and other things.
