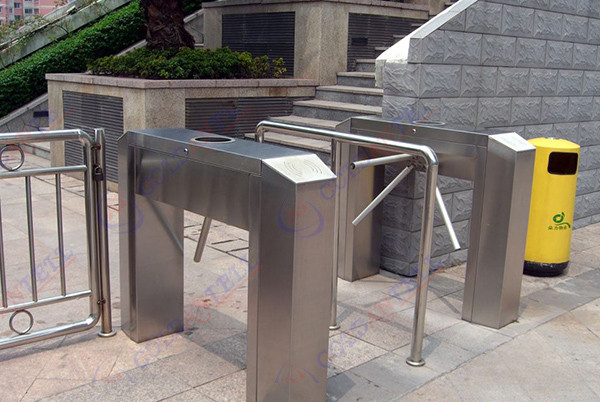

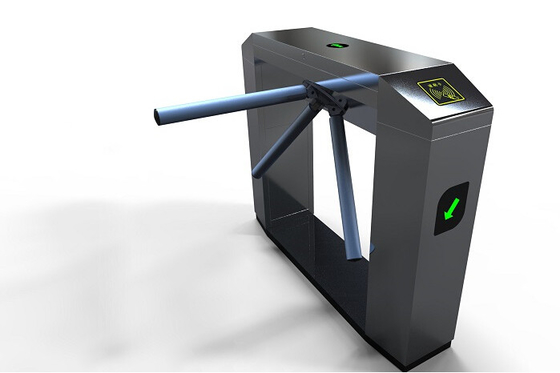

LED Indicate Access Control Tripod Turnstile Gate / CE Waist
Height Turnstiles
Access Control Tripod Turnstile Specifications:
| Technical Parameters |
| Size |
1200 mm (L) * 280 mm (W) * 980 mm (H)
|
| Working voltage |
AC220±10%V 50±10%HZ |
| Arm width: |
510 mm |
| Support force of arm: |
60 kg |
| Passage width: |
≤600 mm
|
| Time of opening: |
0.2 second |
| Pass speed: |
30 persons/min |
| Emergence: |
When power off, arm open
automatically
|
| Normal running life: |
3 million |
| LED light: |
direction arrow |
| Direction: |
single or bi-directional
(optional)
|
| Working environment: |
indoor/outdoor (with a tent
over)
-10℃～70℃
|
| Relative humidity: |
≤90% coagulation free |
| Communication interface: |
standard RS 485 interface,
distance ≤1200m
|
| Housing material |
domestic standard 304#
stainless steel
|
| Working movement |
DC 24V solenoid valve |
| Input interface: |
+12V level signal or pulse
width>100 ms
12V pulse,
drive current>10 mA
|
Access Control Tripod Turnstile Functions And Features:
1 . Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.
2 . Running stable, no noise and no mechanical impact
3 . Self-checking-power-on function, if power on, turnstile will auto get to be held.
4 . Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5 . If power off, arm will fall automatically while power on later, arm will be automatically lift.
6 . It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7 .It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
8 . It will count the persons who have been passed through automatically and will show the number by LED directly.(LED is optional)
9 . Passing direction will be shown by LED and passengers will know which direction is allowed to pass.
10 . Card reading memory or card reading without memory function can be set in the control panel menu according to your request.
11 . If working with software, the total-in-population can be set to satisfy special request.
12 . Re-position function. After card reading, if passenger not through within the specific time, system will auto cancel passing right for this time and the limit passing time length can be set.
13 . Card Mouting is avaliable.
14. Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more realiable and accurate.
15 . Optional:
1 ) Counter and counter display
2 ) Access controller or card reader
3 ) Key by-pass
