Building Factory Entrance Automatic Speed Gate Turnstile Under 240 Volt

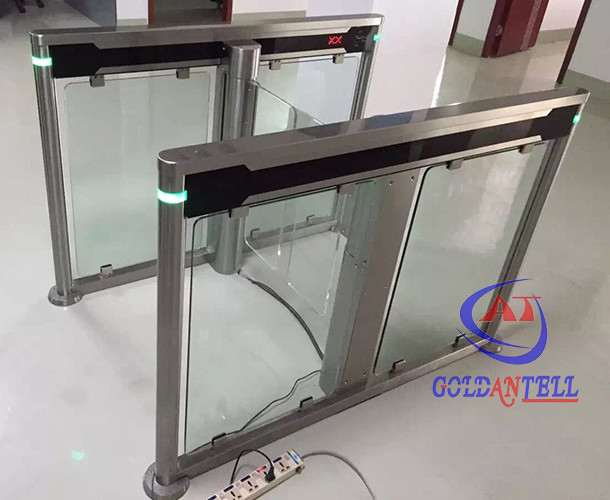

Large Image : Building Factory Entrance Automatic Speed Gate Turnstile Under 240 Volt

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS/FCC/IS9001
Model Number:	GAT-644

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7-9 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Size Of Product:	1400 X 65 W X 1000 Mm	Net Weight:	80KG
Material:	304 Stainless Steel /316 Stainless Steel (custom)	Compatible:	RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Gross Weight:	90KG	Application:	Office, Building, Hotel, Club, Etc.
Product Name:	304 SUS Speed Turnstile Gate	Type:	Single Core & Double Core,high Speed Gate
Passage Width:	600~900mm, Or Widen 1000~1250mm	Power Supply:	AC220V / 110V
Highlight:	turnstile security gate , waist high turnstiles

Building Factory Entrance Automatic Speed Gate Turnstile Under 240 Volt

Description:

Goldantell smart translational speed gate turnstile is s a high- tech product which mainly provides intelligent management to passageway.
It is a upgrade product of intelligent tripod turnstile and swing barrier. this product is finely processed with complete functions and high level, suitable for high- level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
Classified into two kinds: single motor (suitable for single passageway and multiple passageway.); Double motors (suitable for multiple passageways)

Specifications:

Technical Parameters
Working environment:	indoor/outdoor (with a tent over) -10℃～70℃
LED light:	direction arrow
Housing material:	domestic standard 304# stainless steel
Size:	1400mm (L) * 85mm (W) * 1000mm (H)
Working voltage:	AC220±10%V 50±10%HZ
Drive motor:	DC24V brush motor
Swing arm length:	250~600 mm for single unit
Time to work after power on:	3 seconds
Passage width:	600 mm , 900mm, or 1100mm for wheelchair
Time of opening:	0.6 second
Pass speed:	40 persons/min (open), 25-30 persons/min (closed)
Emergence:	When power off, arm open automatically
Normal running life:	3 million
Direction:	single or bi-directional (optional)
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface,distance ≤1200m
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Building Factory Entrance Automatic Speed Gate Turnstile Under 240 Volt 0

Functions & features:

Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). Totally meet the fire protection needs.
Infrared sensor reset, infrared induction anti-pinch function (3 or 5 infrared optional).
The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
Alarm function: when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked. Self-examine.
Before received the open signal, the turnstile will lock automatically.
The retractable can be adjustable (specific to double swing gate).
The turnstile direction: single or bidirectional optional (pedestrian can enter and exit from one pair of turnstile). Can manager and long-range control the turnstile directly by managing the computer.

System Integration

Integrate with access control system required by customers, and built-in reader appointed by customer.

Integrate with visitor management system.

Integrate with ticketing system.

Application Site:

Building Factory Entrance Automatic Speed Gate Turnstile Under 240 Volt 1

Competitive Advantage:

1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.

2. Special service from Goldantell:

For repairing,no need you return back product,only need you take a video,our engineer will instruct you, if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.

3. Friendly and professional customer service people help you in 16 hours.

4. We can provide not only product, but also system software management.Save your time and cost.
