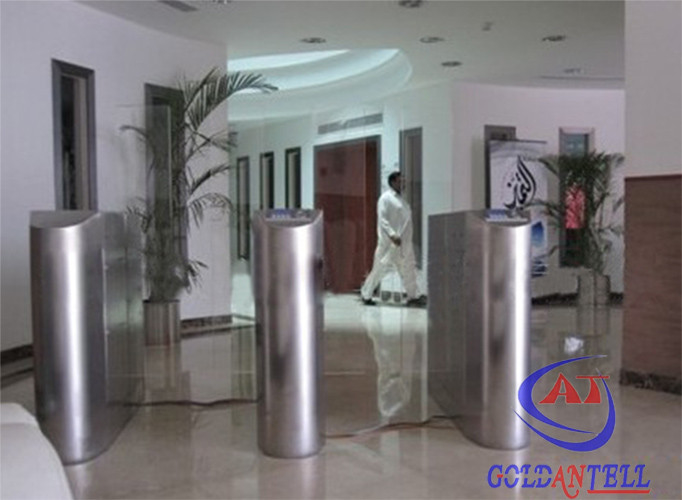

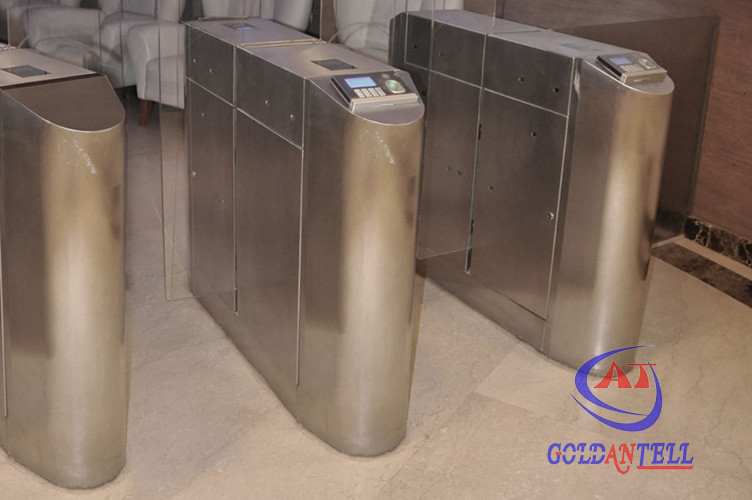

Airport Metro Intelligent Glass Entrance Turnstiles Nice Shape Design
Description:
1. This equipment is subtly integrated with machine, electronics, micro- processor control and ID
identification, provides convenience for the use of card reader identification equipment, such as IC card,
ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway
through choosing various identification equipment and adopting fair, reliable security protection,
alarming equipment and direction indicating equipment...
2. Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);
Double motors (suitable for multiple passageways)
Functions & features:
1. Turnstile can set the working condition by press the button of main control board.
2. Anti- pinch function: turnstile have Mechanical / infrared induction Anti- pinch functions (when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the
turnstile will default the delayed and reset again till reset succeed), small intensity (≤2Kg).
3. The turnstile will close the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
4. Before received the open signal, the turnstile will lock automatically.
5. The retractable can be adjustable (specific to double swing gate).
6. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). Totally meet the fire protection needs.
7. Infrared sensor reset, infrared induction anti-pinch function (3 or 5 infrared optional).
8. The turnstile can work with door access control system/ consumption system /biometric recognition
system/ ESD system and so on.
9. The turnstile direction: single or bidirectional optional (pedestrian can enter and exit from one pair of turnstile). Can manager and long-range control the turnstile directly by managing the computer.
Specifications:
| Housing material: |
domestic standard 304# stainless steel
|
| Size: |
1400mm (L) * 310mm (W) * 1000mm (H)
|
| Working voltage: |
AC220±10%V 50±10%HZ |
|
Drive motor:
|
DC24V brush motor
|
|
Retractable arm length:
|
235 mm
|
|
Time to work after power on:
|
3 seconds
|
| Passage width: |
550 mm
|
| Time of opening: |
1second |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed)
|
| Emergence: |
When power off, arm open automatically
|
| Normal running life: |
3 million |
| LED light: |
direction arrow |
| Direction: |
single or bi-directional (optional)
|
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃
|
| Relative humidity: |
≤90% coagulation free |
| Communication interface: |
standard RS485 interface, distance ≤1200m
|
| Input interface: |
+12V level signal or pulse width>100ms
12V pulse, drive current>10mA
|
Competitive Advantage:
1. We have more than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you, if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4. Friendly and professional customer service people help you in 16 hours.
