Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
Product Details:
Payment & Shipping Terms:
|
Product Name: | Swing Speed Gate | Material: | 304 Stainless Steel/316 Stainless Steel |
---|---|---|---|
Net Weight: | 70KG | Gross Weight: | 80KG |
Application: | Office, Building, Hotel, Club, Etc. | Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
Color: | Silvery | Delivery: | By Air Or Sea |
Warranty: | 2 Years | ||
High Light: | turnstile security gate,waist high turnstiles |

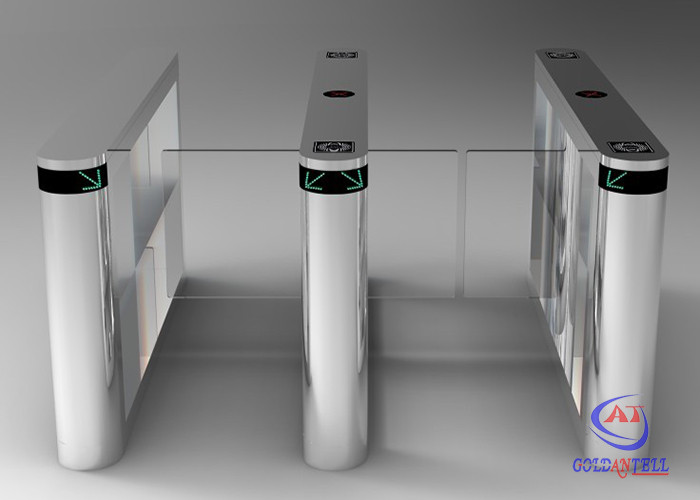

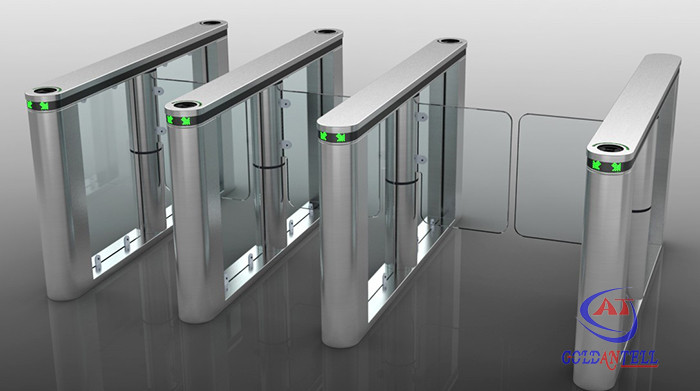

Office Time Attendance Swing Gate With LED Lights Swipe Card Biometric
Speedgate
Specifications:
Housing material: |
domestic standard 304#
|
Size:
|
1400mm (L) * 310mm (W) * 1000mm (H) |
Working voltage:
|
AC220±10%V 50±10%HZ |
Drive motor:
|
DC24V brush motor |
Retractable arm length:
|
235 mm |
Time to work after power:
|
3 seconds |
Passage width:
|
550 mm |
Time of opening:
|
1second |
Pass speed:
|
40 persons/min (open), 25-30 persons/min (closed) |
Emergence:
|
When power off, arm open |
Normal running life:
|
3 million |
LED light:
|
direction arrow |
Direction:
|
single or bi-directional (optional) |
Working environment:
|
indoor/outdoor (with a tent over) |
Relative humidity:
|
≤90% coagulation free |
Communication interface:
|
standard RS485 interface, |
Input interface: |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Description:
1. Goldantell smart translational swingspeed gate turnstile is s a high- tech product which mainly provides
intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing
barrier. this product is finely processed with complete functions and high level, suitable for high- level
neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
2. This equipment is subtly integrated with machine, electronics, micro- processor control and ID
identification, provides convenience for the use of card reader identification equipment, such as IC card,
ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway
through choosing various identification equipment and adopting fair, reliable security protection, alarming
equipment and direction indicating equipment...
3. Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);
Double motors (suitable for multiple passageways)
Functions & features
Goldantell Speed Gate Turnstile uses glass security barriers in conjunction with state of the art optical
technology to provide a high throughput security gate. The glass security barriers are designed to work in
a normally closed mode and retract inside the pedestal after a valid card has been presented to allow the
authorised user to pass. The fast moving glass barriers close behind the authorised person to deter
tailgaters.
The barriers are positioned in the middle of the pedestal to allow true bidirectional control and automatic
free exit if desired. 3 variants are available: Compact, Standard and Wide; giving a lane width anywhere
between 550 mm to 914 mm. The Compact is a cost effective solution for areas with space constraints
and allows for lanes of 550 mm. The Standard variant gives a wider lane width of up to 700 mm, which is
greater than the industry standard and provides greater flexibility of movement to users, particularly when
they are carrying briefcases etc. The Wide variant is designed for wheelchair accessible lanes, giving a
lane width of 914mm.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.
Contact Person: Charlene Lu
Tel: 86 18025437918
Fax: 86-755-27209118
