Product Details:
Payment & Shipping Terms:
|
Product Name: | Access Control Tripod Turnstile | Size: | 1200*280*990mm |
---|---|---|---|
Material: | 304 Stainless Steel | Gross Weight: | 78KG |
Power Supply: | 220~240 V(AC) | Direction: | Single Or Double Direction For Optional |
Shipping Way: | By Sea,by Air,by Express | Type: | Full Automatic , Semi Automatic , Manual For Option |
Access Control: | RFID Card , ESD ,Token , Coin , Bimetric System , Barcose Scanner | ||
Highlight: | pedestrian turnstile gate,turnstile entry systems |

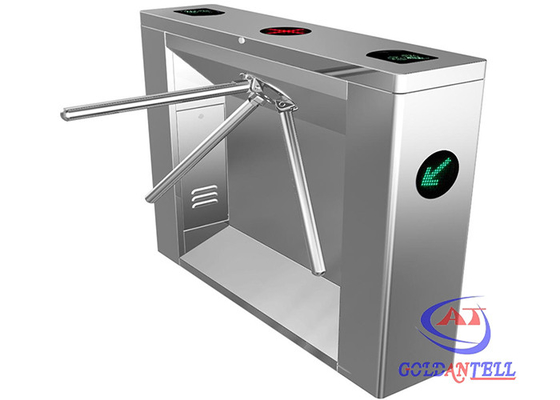

Fingerprint ESD Barcode ID / IC Card Access Control Rfid Tripod Turnstile
for Subway Station Access Control Tripod Turnstile Brief Introduction
Product Introduction
This portable tripod turnstile is intergrated with mechanism,electric and micro-controller and various kinds
of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide
intelligent control and management to flow control.
Made of 304 /316 stainless steel,Goldantell portable tripod turnstile with nice and elegant
shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a
passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.
Access Control Tripod TurnstileTechnical Parameters
1 |
Power |
AC220C±10V,50HZ |
2 |
Operating temperature |
-15°C--75°C |
3 |
Relative Humidity |
≤95%, No Condensation |
4 |
Arm length |
60~90cm |
5 |
Passing Speed |
30~40 persons/min(IC Card) |
6 |
Motor |
0.5NM/24V(Fully Automatic) |
7 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V |
8 |
Communication Connection |
RS485 Communication Module Standard. |
9 |
Material |
SUS304,thickness is no less than 1.3mm |
10 |
Protection Grade |
IP54 |
11 |
Colour |
SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
12 |
Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
Portable tripod turnstile divided into 3 kinds:1)full automatic 2)semi-automatic 3)manual,the semiautomatic is the most widely used,below is the comparation for the 3 kinds of versions:
Goldantell Tripod Turnstile Standard Functions & Features
|
||||||
Tripod turnstile function & Features |
Fully automatic |
Semi automatic |
Manual operation
|
|||
1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.
|
√ |
× |
× |
|||
2. Turnstile can setting the working condition by press the button of main control board.
|
√ |
√ |
× |
|||
3. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.
|
Auto-drop-arm |
Auto-drop-arm |
NO action |
|||
4. Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off.
|
Auto-lift-arm |
manual- lift –arm |
NO action |
|||
5. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on
|
√ |
√ |
× |
|||
6. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you)
|
√ |
√ |
× |
|||
7. LED indicator light
|
√ |
√ |
× |
|||
8. Once an open signal is give, the arms will rotate automatically to a certain angle, and prompt the pedestrian to pass the gate.
|
√ |
√ |
× |
|||
9. When pedestrian pass the turnstile, what should they do? |
Automatic-rotation |
manual push the arm |
manual push the arm |
|||
10. The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile)
|
√ |
√ |
× |
|||
12. LED counting function
|
√ |
√ |
× |
|||
11. Can manager and long-range control the turnstile directly by managing the computer.
|
√ |
√ |
× |
Appearance, Dimension, Material & Surface Finish
Appearance: customized according to customer’s requirement.
Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking fini
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Itegrate with ticketing system
P

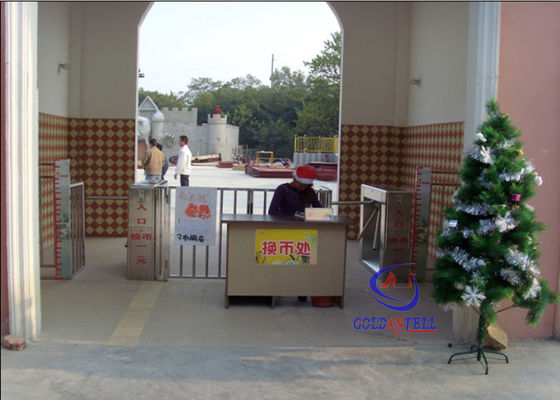

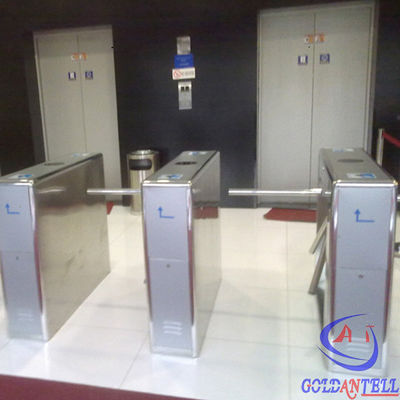

Access Control Tripod Turnstile Pictures
