Product Details:
Payment & Shipping Terms:
|
| Size Of Product: | 1400mm*310mm*1000mm | Direction: | Both Entry And Exist |
|---|---|---|---|
| Pathway Width: | 600mm | Material: | 304 SS |
| Type: | Fully Auto Speed Gate | Control Mode: | Rfid, Zk Access Reader, Barcode Scanner, Counter |
| Highlight: | pedestrian turnstile gate,waist high turnstiles |
||

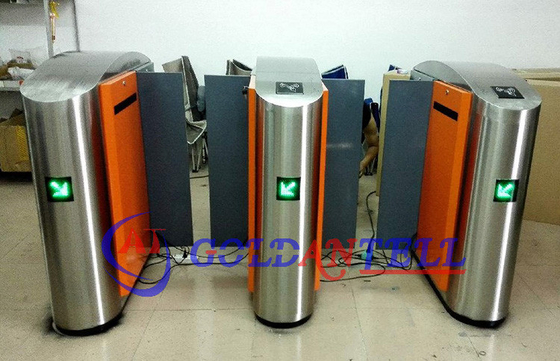

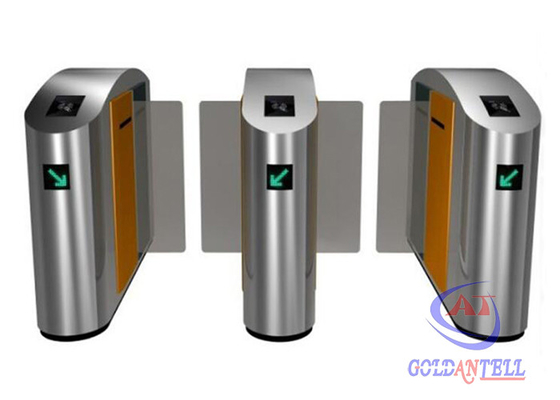

zk access reader Half height or Full High Turnstile Retractable Glass Barrier , speed gate for indoor theater
Goldantell Turnstile Performance
Goldantell intelligent Series of turnstile gates with excellent design and good performance are produced by utilizing innovative technology and high quality material, are available with unique features for wide range of security, commercial and industrial applications to meet customer satisfaction. Our pedestrian barrier Gates can provide a level of security to meet any challenging requirements, including anti-pinch, time attendance, or passing management, etc.
1. Standard features: made of 304 stainless steel; IP 54,waterproof , with nice and elegant shape, anti- rust,durable.
2. CE Certificated
3. Default system setting: free open for passing if the power is off.
4. System Integration: be compatible with RFID / fingerprint / QR or barcode / ESD access control system, to manage
Specification
|
Product Model
|
GAT-647 |
|
Product Size
|
1400*300*1000mm |
|
Path width
|
in 900mm (for one pair) |
|
Direction
|
single or bi-directional (optional) |
|
Time of opening/closing
|
0.6 second |
|
Pass speed
|
40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | 10 seconds |
| Normal running life | 3 million |
| Working environment | indoor/outdoor (with a tent over) -10℃~70℃ |
| Drive motor | DC24V brush motor or brushless motor |
Function and characteristics
1. With function of self-examine and alarm, it is convenient for maintenance and use.
2. Being able to program running status by the small keyboard in the main board
3. Preventing pedestrians from being nipped and from hurt
4. Light and sound alarm function including the illegal in and the tail
5. Doors are automatically locked until opening signal is received.
6. Doors synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t passed through the channel in the pre-set time after the opening. The passing time is adjustable
8. Information display option (LCD display screen)
9. Audible sound prompt
Indoor Application
> Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
> Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
> Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
