NFC Cards Speed Gate Turnstile Bidirectional Optical Turnstile Flap Gate


Feature & function
1. Safety function(anti-pinching). By default flap wing will auto- reverse if IR sensor detected obstacle within the flap wing area. This avoid flap wing to accidentally hit onto to user. Can adding green/red/blue light lining effect along the edge of the flap wing to ensure flap wing is easily visible.
2. Anti-tailgating/ anti-retrogradation function: Flap wing can be set to pause if IR sensor detected obstacle nearby wing area during closing. Flap will resume closing once the obstacle is removed. This is to make it very difficult for following user to tail gate the first user.
3. Auto-close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
4. LED indicator function. LED indicator light is available at both directions to indicate if the lane is available to use (green arrow) or lane is closed for maintenance (red cross).
5. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
6. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.

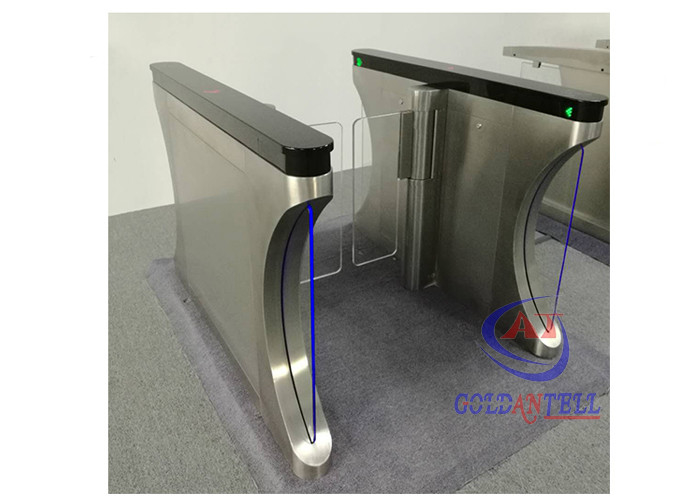

Product Photos
