110 volts full automatic Hs code tripod turnstile barcode scanner for stadium

  • 110 volts full automatic Hs code tripod turnstile barcode scanner for stadium
  • 110 volts full automatic Hs code tripod turnstile barcode scanner for stadium
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/SGS/IS9001
Model Number GAT-SERIES
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Arm Length 51cm Working Temperature -15℃~+75℃
Max Access Width 600mm Passing Speed 30people/min
Type Full Automatic Or Semi-auto Application Hotel,school,Subway,Office Building
Material 304 Stainless Steel Size L1200*W280*H1000mm
Highlight

pedestrian turnstile gate

,

turnstile entry systems
Leave a Message
Product Description

110 volts full automatic Hs code tripod turnstile barcode scanner for stadium



Quick Description

1. Goldantell intelligent Series of turnstile gates with excellent design and good performance are produced by utilizing innovative technology and high quality material, are available with unique features for wide range of security, commercial and industrial applications to meet customer satisfaction.

2. Our pedestrian barrier Gates can provide a level of security to meet any challenging requirements, including anti-pinch, time attendance, or passing management, etc.The complete stainless steel construction is suited for interior or exterior application.

3. support to work with various ( multiple) kinds or third access control system like nfc cards, face scanner, fingperint reader, etc.



Specifications

Power AC220,110 C±10V, 50HZ
Operating Temperature -15°C--75°C
Housing Size 1200*280*1000mm
Relative Humidity ≤95%, No Condensation
Access Width ≤600mm
Passing Speed 30-40 persons/min(IC Card)
Motor DC Brushless Motor, 0.5NM/24V(Fully Automatic)
N.W. 90KG
Input Connection +12V Level Signal or Pulse Wide>100ms DC12V
Communication Connection RS485 Communication Module Standard.
Material SUS304,thickness is no less than 1.5mm
Protection grade IP 54
Color SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)
Operation Place Subway Station, Hoverport,Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control



Functions and features

1. Designed reasonable and reliable movement, noise small, the internal hydraulic device automatically Buffer, run a smooth, long service life.

2. With the power drop-shot function, can also carry out additional remote control rod ,it in the management and deal with emergencies .

3. Prompted with the direction of LED lights.

4. Can be set "with memory " or "not to bring memory " function (when set to "bring Memory", the brush can be used in a scenic spot ticket too many people groups occasions).

5. With automatic reset function ,namely ,access to lock permissions, set at the time Three is no inter-lock, three roller gates automatic cancellation of this authority back to the lock Set state.

6. Waterproof ,sunscreen ,cold and high temperature.

7. Installation with personalized interface, compatible with IC,ID cards and other smart cards.

8. A unified ,standard external electrical interface with a variety of reading and writing equipment Freely articulated ,easy system integration .

9. Can be extended to automatic identification systems, achieve access control ,attendance, fees Functions.

10. Be integrated with other types channels with the use of Products.

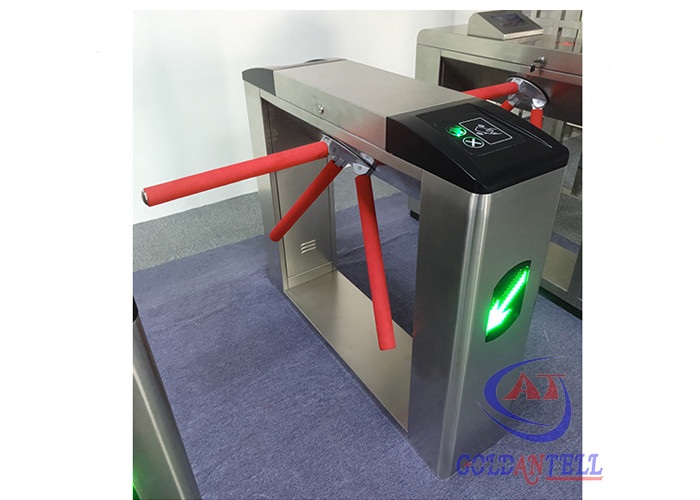

Real Photos

110 volts full automatic Hs code tripod turnstile barcode scanner for stadium 0

1, Main Parts

Name: Rotary three arms
Material: stainless steel
Color: red cover

2, Main Parts

Name: Reading / scanning Area
Reader type: rfid cards as right, or fingerprint.
Access Indicator signal: two signs, if no entry or invalid access, for "red cross" ; only valid access with right rfid cards for " green arrow".



FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If the order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
5. How about your package?
Vivian: Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap.
