Stainless Steel Speed Gate Turnstile with RFID 0.2s Barrier Time

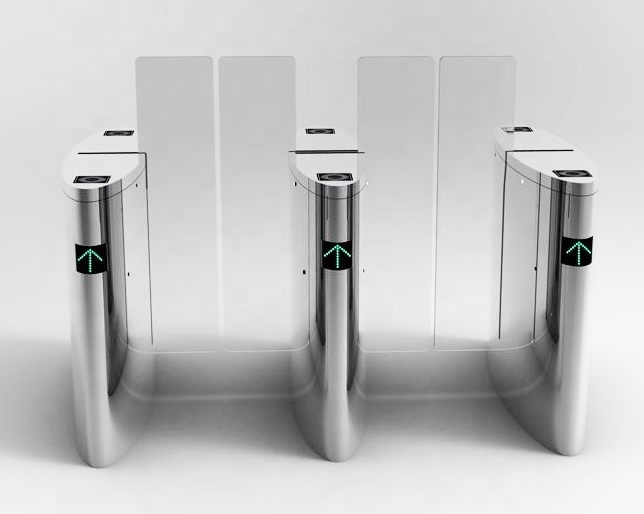

Large Image : Stainless Steel Speed Gate Turnstile with RFID 0.2s Barrier Time

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	OEM/GOLDANTELL
Certification:	CE/ROHS/FCC/IS9001

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7-9 working days after received your payment
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Communication Interface:	Rs232, Rs485	Barrier Open Time:	0.2s
Barrier Close Time:	0.2s	Access Control Type:	RFID Card
Barrier Motor:	Brushed Motor	Protection Level:	IP54
Material:	Stainless Steel	Operation Direction:	2-way
Cabinet Dimension:	1400 (L) X 300 (W) X 1000 (H) Mm	Switching Power Supply:	AC220±10%V 50Hz Or AC110±10%V 60Hz
Passthrough Width:	900mm (or Custom)	Mechanism:	DC Brushed Motor+Clutch (or Servo Motor)
Infrared Sensor:	6~10 Pairs	Optimal Flow Rate:	40 Persons/min (open), 35 Persons/min (closed)
Working Humidity:	30%~95%
Highlight:	Stainless Steel Speed Gate Turnstile , RFID Speed Gate Turnstile , 0.2s Barrier Speed Gate Turnstile

Airport Security Turnstile With Automatic RFID | Dual Barcode Reader Speed Gates with Access Control

Product Description

Complete stainless steel construction suitable for interior or exterior applications
Double core engine for both sides access, applicable to multi-channel configurations
Provides high-level security features including anti-pinch, time attendance, and passing management
RS232/485 interface for long-distance control
IP54 rating for both outdoor and indoor use
Smooth operation with minimal noise
Minimum order quantity: 1 unit

Specifications Of High Speed Gate

1	Cabinet dimension	1400 (L) x 300 (W) x 1000 (H) mm
2	Cabinet material	304 stainless steel (316 ss can be custom-made)
3	Switching power supply	AC220±10%V 50Hz or AC110±10%V 60Hz
4	Opening/closing time	0.2s
5	Arm material	Thickness 10mm Acrylic, or tempered glass or steel (custom)
6	Access mode	Single in/out or Bidirectional
7	Passthrough Width	900mm (or custom)
8	Mechanism	DC Brushed motor+Clutch (or Servo motor)
9	Communication interface	RS485, TCP/IP
10	Infrared sensor	6~10 pairs
11	Optimal flow rate	40 persons/min (open), 35 persons/min (closed)
12	Reset time after break down	Default 10s can be changed to fit different demands
13	MCBF	5,000,000 Cycles
14	Working humidity	30%~95%

Functions Of High Speed Gate

304 standard stainless steel construction with IP54 rating for moisture, dust, and water protection
Standardized housing design with full CNC laser cutting, drilling, and molding technology for easy maintenance
Infrared sensors for safety features including automatic bounce-back, anti-trailing, and anti-pinch functions
Automatic reset function if person doesn't pass within specified time
Smooth system operation with low noise and double core engine for multi-channel access
Standard external interface compatible with various card readers and remote management

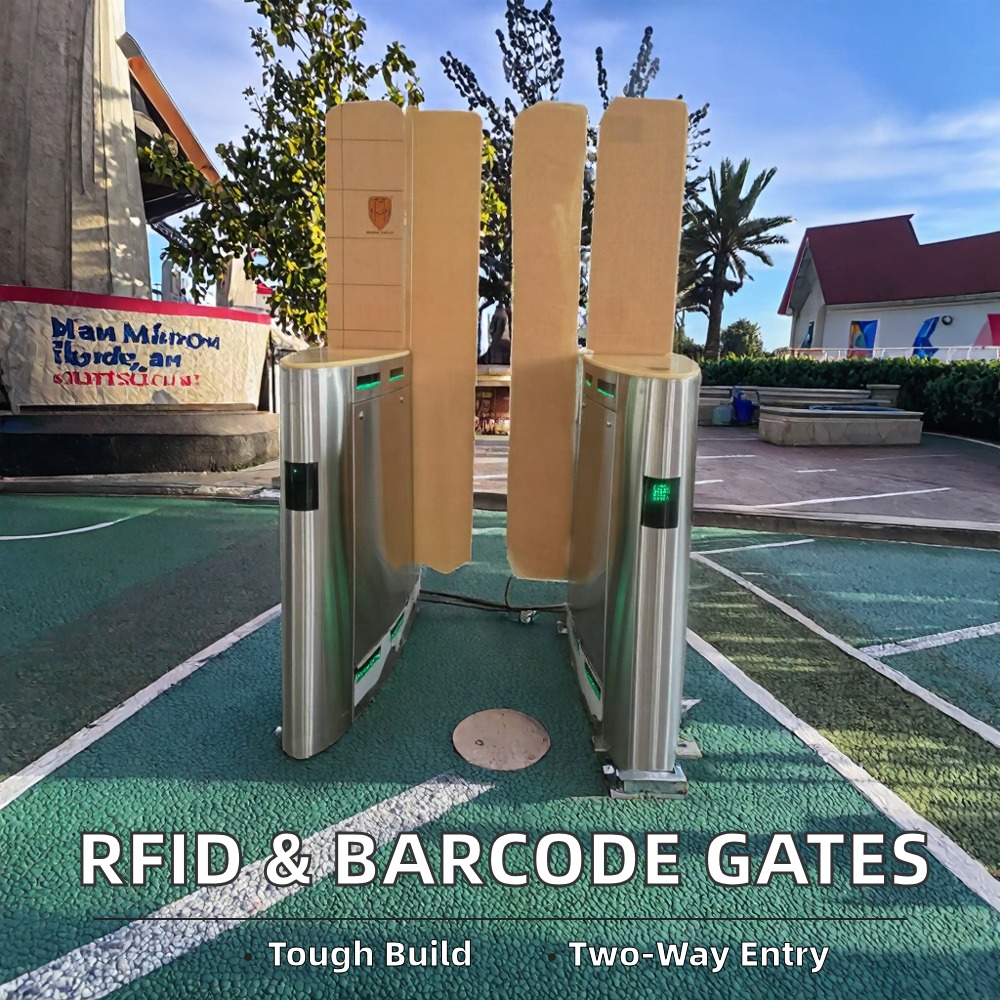

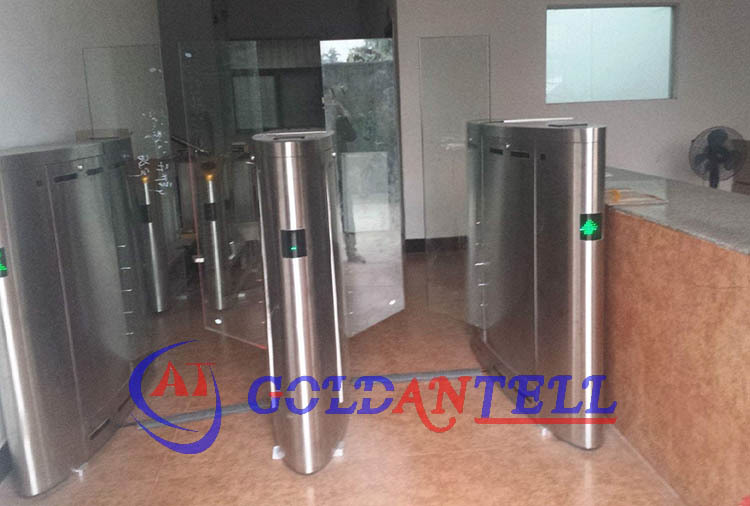

Project Sites

Exhibition halls, Commercial buildings, Parks, Offices, Stadium, Library, Museums

Advantages Of High Speed Gate

16-hour professional customer service support
10+ years ODM/OEM experience with custom design capabilities
Comprehensive system software management solutions
Special repair service with video support and free spare parts within warranty

FAQ Of High Speed Gate

Q1. What is your terms of packing?

A: First, we will pack our goods in a protective film. Then we will put it in neutral cartons. Third, we will pack it in a standard export wooden case to protect the goods perfectly.

Q2. What are your terms of payment?

A: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.
