Dual lane stainless steel electronic mechanical turnstile double access control for entrance management for supermarket
Description Of Mechanical Turnstile
◊ Application: outdoor or indoor
◊ Pass direction: one way or two ways to set for you.
◊ Safety: Gate auto open when power is off to meet the fire protection requirements.
◊ LED indicator light: green and red indicate the passing information.
◊ Unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration.
◊ Custom: we can make a visible high glass panel that prevents a user from climbing over the gate to gain unauthorized access.
◊ Glass panel slides open horizontally to provide an unobstructed passageway.
Technical Parameters Of Mechanical Turnstile
| Size of housing: |
1400mm (L) * 200mm (W) * 1000mm (H) |
| Pass through width |
widely 60 /90cm ,or (120cm and custom-made) for a pair |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor: |
standard DC 24 V brush motor ( or brushless motor) |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
| Time to work after power on: |
3 seconds |
| Reset time after break down: |
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: |
AC100-240V, 50±10%HZ |
Functions Of Mechanical Turnstile
1.With function of self-examine and alarm, it is convenient for maintain and use
2. being able to program operation state by the small keyboard in the main board.
3. Swing arm stops moving when it is blocked, which prevents pedestrians from being nipped and from hurt
4. Arms are automatically locked until an opening signal is received
5. Arms synchronization (adjustable)
6. Light and sound alarm is generated when the illegal invasion and the tail followed.
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening.
8. The passing time is adjustable.

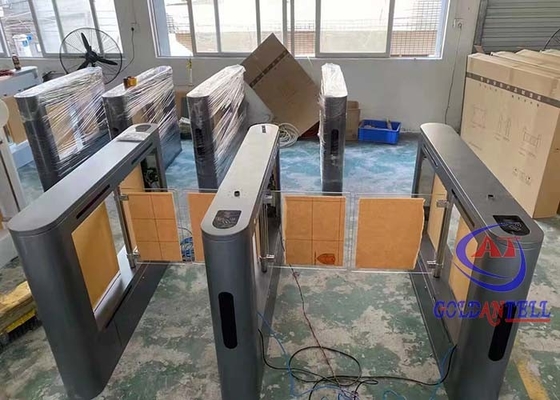

Photo Of Mechanical Turnstile

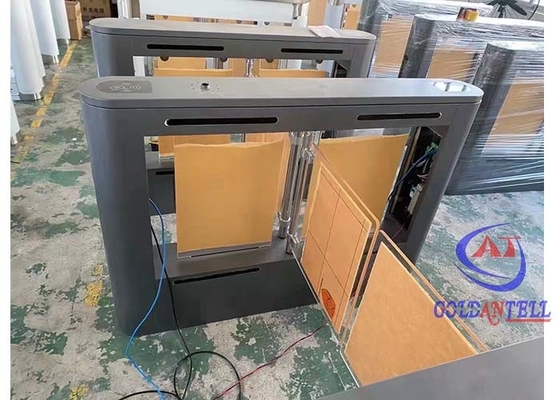

Photo Of Mechanical Turnstile
Features & Mechanical Turnstile
◊ Fast recognition
◊ Support photosensitive sensor infrared and led fill light.
◊ Support serial port driver, Wiegand 26 / 34 bit output.
◊ Dynamic face detection and tracking based on a video stream.
◊ Dynamic face detection and tracking based on a video stream.
◊ Multiple access control: add esd tester for each entrance.
Project Of Mechanical Turnstile
1. Hotel, Factory, Bank, Prison, Hospital, School, Enterprise’s Entrance and Exit Attendance
2. Movie theaters, fitness halls, Clubs, Swimming Hall, Gym.
Service Of Mechanical Turnstile
1. Security solution provider, can help you save time and costs.
2. Good quality with competitive price, offer OEM and ODM service.
3. Professional technical supports and great after-sales service.
4. Custom design shape and logo,for large amount, custom logo available for free.
5. Fastest delivery and safe shipping way.
6. Warranty: One year Warranty, from the date of delivery, a lifetime technical support.
7. Feedback quickly: 24 hours online service and reply your inquiry within 8 hours.We could provide Online supports for you when need supports on testing.
FAQ Of MechanicalTurnstile
1.Can your machines be used outside?
Vivian: With waterproof function, could be used outside.
2) How about your package?
Vivian: Seaworthy wooden case + Foam.
3) How about the payment method?
Vivian: Standard products: 50% deposit, 50% balance payment before shipment.
4) How about the lead time?
Vivian: Regular products need 5-8 working days. The customized products need 9-13 working days.
