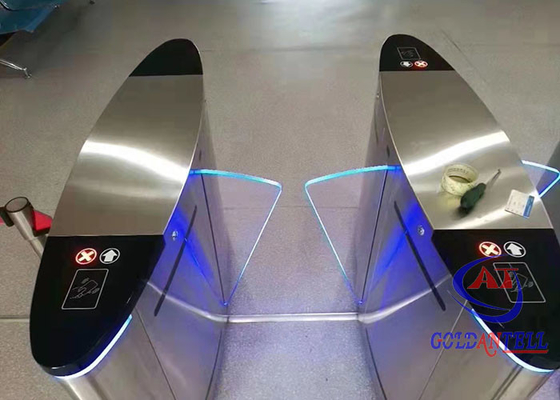

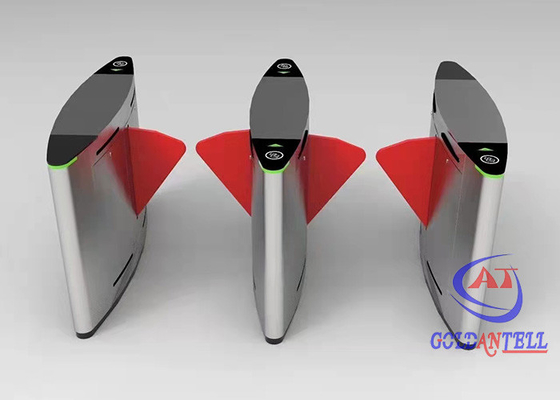

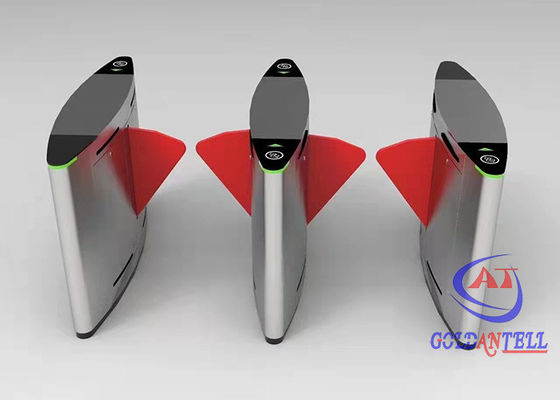

Theme park entry door access Automatic Fingerprint RFID Reader Turnstile Qr Code Reader Flap Type Barrier Turnstile Gate Mechanism
Esd turnstile functions and features
(1) Directional VFD Optical Signals----Green Arrow or Red Cross signage
(2) Only one person can pass with one card.
(3) Collect the break-in information.
(4) Installed in indoor or outdoor
(5) Well lightning and grounding
(6) Multi-working mode----Forbidden, Controlled or Free Passing optional
(7) Easily integrated with any type of readers---such as Magnetic card, Barcode card, FID Card and so on
(8) Card-swiping memory function
(9) Statistics collection automatically
(10) Manual release when meet the outside push
(11) Always open or close mode. In an emergency, the passage will be freely pass automatically
(12) Bi-directional passing or single way passing.
(13) Self-inspection and alarm.
(14) Can program the running status online by setting the built-in keys.
(15) LED Counter, Direction indicator.
(16) Infrared detector to sense the passing status.
Technology specifications for esd turnstile
| 1 |
Power |
AC 100~240V, 50/60HZ |
| 2 |
Operating temperature |
-15°C--75°C |
| 3 |
Relative Humidity |
≤95%, No Condensation |
| 4 |
Arm length |
60~90cm |
| 5 |
Passing Speed |
30~40 persons/min(IC Card) |
| 6 |
Motor |
0.5NM/24V(Fully Automatic) |
| 7 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V |
| 8 |
Communication Connection |
RS485 Communication Module Standard. |
| 9 |
Material |
SUS304, thickness is no less than 1.3mm |
| 10 |
Protection Grade |
IP54 |
| 11 |
Surface finish |
brushed or polished |
| 12 |
Colour |
SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 13 |
Dimension |
1200 x 300 x 1000 mm (the size can be adjustable) |
Operation Place
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
