Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Size: | L1500*W120*H1000mm |
|---|---|---|---|
| Application: | Airport,Office,hotel,hospital Entrance | Warranty: | 12 Months |
| Power Supply: | AC100V-240V | Net Weight: | 70KG |
| Material: | 304 Stainless Steel | Communication: | RS485 TCP/IP |
| High Light: | Goldantell Access Control Flap Barrier,QR Code Access Control Flap Barrier,Full Height Flap Turnstile Gate |
||

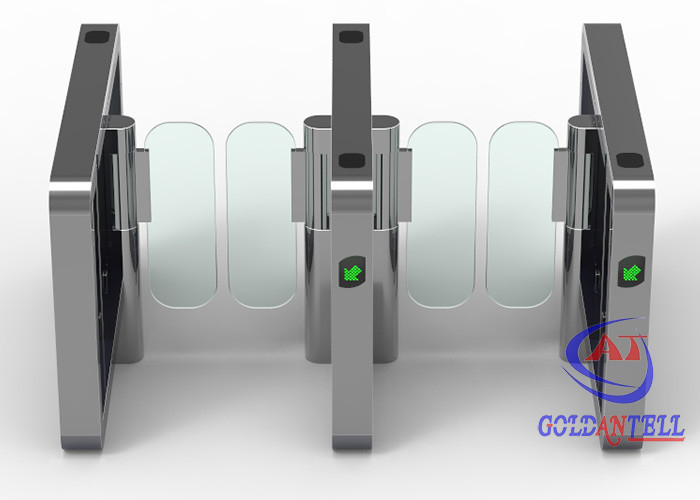

Full Automatic Smart Card Qr Code Reader Flap Barrier full height turnstile swinging
Onsite Application
Office, Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control.
Product Description
Standard Features
◊ LED gate direction indicator that displays the current operational state to pedestrian. Green arrow for entry free, Red cross for passage locked.
◊ Can open the turnstile by two input signals (signal can be input by access controller, button or other equipment)
◊ Provide audible sound prompt and information display function.
◊ The arms will open automatically during power interruption, and recover N/C mode after power-on(optional)
Technical specification
| Cabinet dimension | 1500 (L) x 120 (W) x 1000 (H) mm |
| Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/closing time | 0.6s |
| Lane width | normally 600mm or 900mm can lengthen |
| Access mode | single in/out or Bidirectional |
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset time after break down | default 10s, can be changed to fit different demands |
Product Display
FAQ
Q1, Can your machine work with our card reading system or any other access system required later?
Sales Service
1. For all your inquires about us or our turnstiles, we will reply you in detail within 24 hours.
2. We own well-trained and passional sales & after- sale services who can speak fluent English language.
3. We offer OEM services. Can print your own logo on turnstile, can customize the retail box packing and other things.
4. We have very experienced engineers, can help you better use turnstiles.
Package Info
1. Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:
2. crate package and closed wooden package.
