Slim Rfid Dual Full Height Turnstile Gate Access Control Barrier System

  • Slim Rfid Dual Full Height Turnstile Gate Access Control Barrier System
  • Slim Rfid Dual Full Height Turnstile Gate Access Control Barrier System
  • Slim Rfid Dual Full Height Turnstile Gate Access Control Barrier System
Place of Origin Guangdong,China
Brand Name Goldantell
Certification ROHS/FCC/IS9001
Model Number GAT-623
Minimum Order Quantity 1
Price negotiation
Packaging Details Bubble+ carton + closed wooden case
Delivery Time 7-9 working day
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC220V/110V Material SS 304, Thick 1.5mm ~ 2.0mm
Pass Rate 35~40 Person/min Passage Width 600MM
Height Of Sliding Arms 1m, 1.2m, Or Custom-made 1.4 Meter Size 1400 X 310 X 1000 Mm (H)
Usage Scope Airport ,Park, Amusement Park, School, Play Center Weight 70kg
Highlight

Dual Full Height Turnstile Gate

,

Rfid Full Height Turnstile Gate

,

SS304 Access Control Barrier System
Leave a Message
Product Description
Slim RFID Dual Full Height Turnstile Gate Access Control Barrier System
New Arrival Slim RFID access control dual full height turnstile 1.8m high professional entrance access control solution.
Working Performance
  • Stable performance, safe and reliable, ideal for high-traffic areas requiring monitoring such as office stations, lobbies, office buildings, airports, etc.
  • Heavy-duty, high size prevents unauthorized access by climbing over the gate.
  • Custom logo printing available on sliding panels or steel body.
  • Customization options available to match interior design requirements.
  • Compatible with various access control systems including face recognition terminals, QR code scanners, RFID devices, push buttons, and biometric devices.
Specification
1 Cabinet dimension 1400 (L) x 310 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 600mm (or custom)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s (adjustable)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Function and Characteristics
  • Automatic arm opening during power failure with automatic holding when power returns.
  • Safety anti-pinching function with auto-reverse when IR sensor detects obstacles.
  • Optional LED lighting (green/red/blue) along sliding wing edges for visibility.
  • Built-in problem self-checking function.
  • Alarm system for unauthorized passage attempts.
  • Adjustable arm closing delay (1-60s) via control panel.
Product Design
Slim Rfid Dual Full Height Turnstile Gate Access Control Barrier System 0
Field Installation
  • Lobby entry
  • Subway
  • Airports
  • Stations
  • Library, Bookstores
  • Parks, Exhibition halls
  • Hotel
  • Factory
  • Bank
  • Hospital

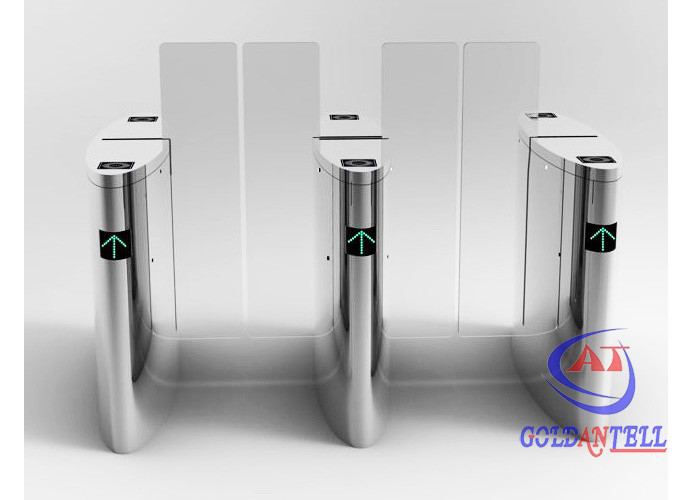

Slim Rfid Dual Full Height Turnstile Gate Access Control Barrier System 1
OEM / Custom Service
  • Custom sliding panel shapes: arc-shaped or standard square
  • Custom panel heights: half high, 1000, 1200, 1400, 1800mm
  • Custom sliding panel materials
  • Optional LED visible lighting: blue, green, red
  • Customizable passing width per lane (900mm requires body modification)
Our Service & Strength
  • 13+ years of turnstile specialization
  • Full customization and OEM services available
  • Cost optimization through feature customization and mold design
  • 3-minute response time for all customer inquiries
