Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Type: | Single Core & Double Core,high Spped Gate |
|---|---|---|---|
| Communication Interface: | RS485/Relay Signal | Power Supply: | AC100V-240V |
| Passing Speed: | 40 Person/min | Warranty: | One Year |
| Size: | L1500*W120*H1000mm | Material: | 304 Stainless Steel |
| High Light: | Rfid Card Speed Gate Turnstile,Intelligent Speed Gate Turnstile,Rfid Card fastlane turnstile |
||

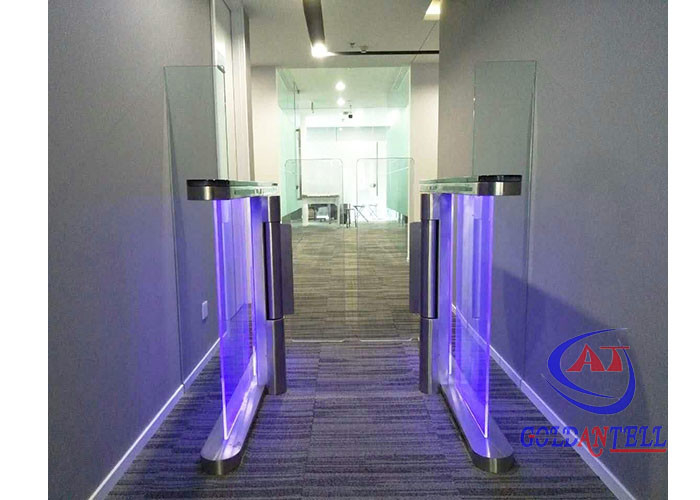

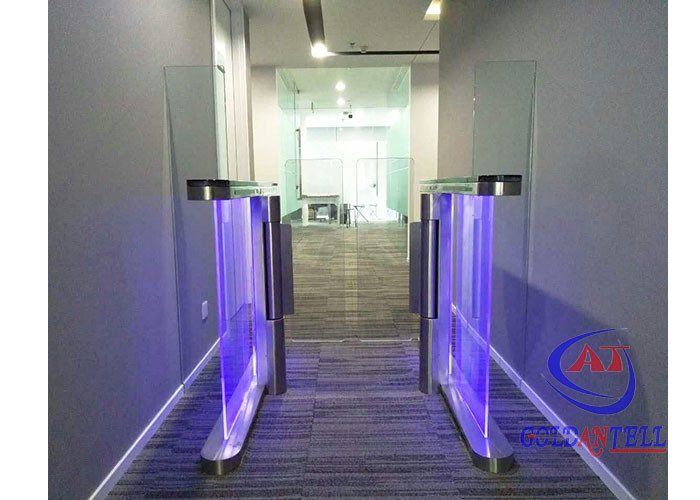

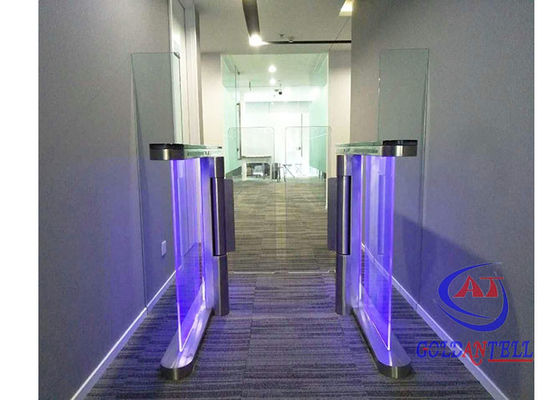

China Quick Pass intelligent rifd card entrance full high turnstile Temperature detector for office entrance control
Product Description
◊ This product is a special type of face temperature rapid detection products, can replace the traditional market thermometer.
◊ Has dual-motor movement type and single-movement type, to make multiple passageway lanes.
◊ Equipping with intelligent Tripod turnstile, flap turnstile, and swing barrier.
◊ It is finely processed with complete functions and high-security level, suitable for high-level neighborhoods, commercial building, and so on.
Technical specification of Swing Turnstile
| 1 | Cabinet dimension | 1400 (L) x 300 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | opening/closing time | 0.2s |
| 5 | Arm material | thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | default 10s can be changed to fit different demands |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Project Application
1. Entertainment Places
Movie theaters,
Fitness halls,
Country clubs,
Fairground
Swimming Hall,
Fitness Gym.
2. Public Places
Subway, Stations,
Airports, Stadium,
Library, Museums
Parks, Offices,
Exhibition halls,
Commercial buildings.
Functions & Features
1. Low noise, no mechanical impact
2. Single directional or Bi-directional
3. High operation with quick response
4. Directional LED Optical Signals: Green Arrow or RED Cross signage.
5. With fault self-check function and Alarm function, convenience for maintains.
6. Single lane or multiple lane set-up.
FAQ
Q: What is the flap gate Working environment?
A: They can be used indoor and outdoor (added the rain shed)
Q. Can I customize it?
A: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
Q: How about your package?
A: Seaworthy wooden case + Foam.
Q: How about the payment method?
A: Standard products: 50% deposit, 50% balance payment before shipment.
