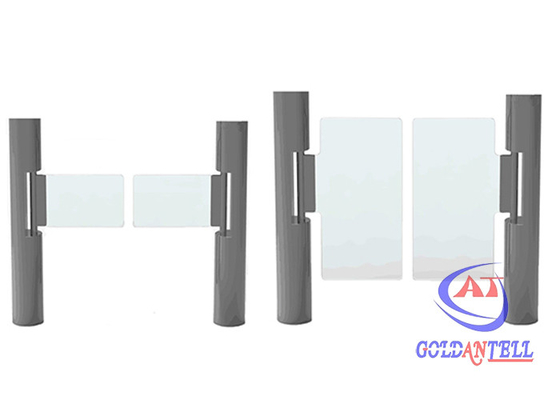

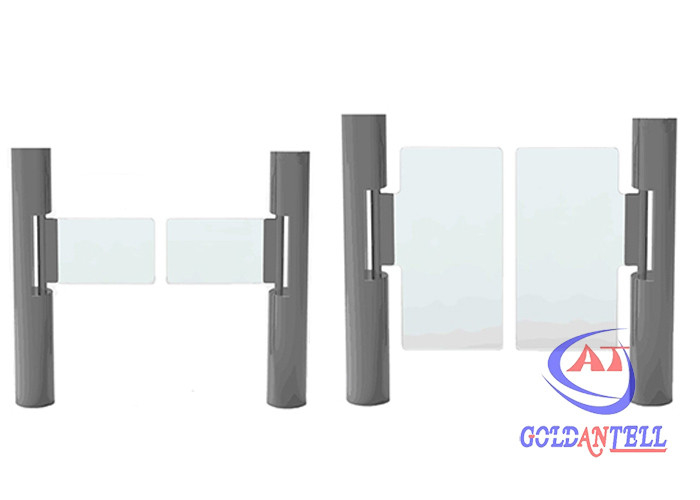

Anti-tailgating Pedestrian entrance 316 stainless steel cylindrical swing turnstile automatically half height
Description
Our pedestrian barrier Gates can provide a level of security to meet any challenging requirements, including anti-pinch, time attendance, or passing management, etc.The complete stainless steel construction is suited for interior or exterior application.
Access control system
1. multiple access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
Function& features
1. Support face recognition field photo preservation;
2. Support serial port, Wigan output, output content support configuration;
3. Supports offline LAN equipment deployment and online HTTP transmission cloud deployment;
4. All-black environment ir face detection after complementary recognition;
|
|
|
Cabinet dimension
|
pillar diameter 168mm,
height 1050mm
|
Running speed
|
30~40 persons/min
|
|
Cabinet material
|
304 stainless steel
|
Power supply
|
AC110~220volts
|
|
Passing width
|
60, 90cm, or more,
can be custom-made
|
Operating
temperature
|
-15°C--75°C
|
|
Passing Direction
|
single in/out or
Bidirectional
|
Communication
Connection
|
standard RS 485
|
Options & Custom service:
1. The dimension of glass panels could be custom-made.
2. can adding visible color LED lighting for glass panels, like green, blue, red, etc.
3. The material of swing panels can be steel / acrylic / tempered glass. So you can charge our standard swing panels if has a special requirement.
Project Application
1. Use independently, as shown below.
also, the swing panels can be replaced with steel material, also the size can be custom-made.
2. Use together with another access column
like picture , which can be integrated with different recognition terminal, as follows:
i) QR code, 1&2D barcode or ticket scanner;
ii). RFID cards, wristband,token, button, etc.
iii). Fingerprint.
iv) facial recognition.
