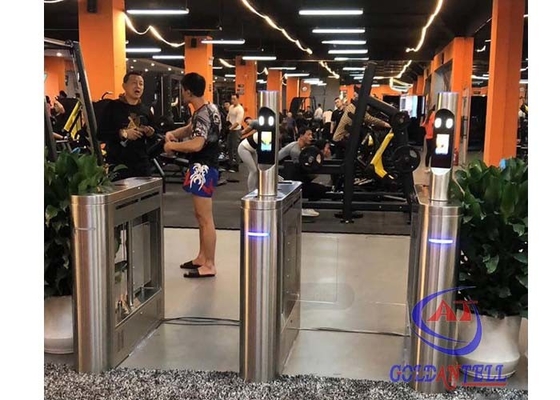

qr code door access control sport turnstile temperature rfid multiple face recognition for gym entry
Description
It is a complete epidemic prevention solution that integrates AI face recognition, body temperature measurement,mask recognition, access control and attendance capabilities. The site undertakes efficient temperature detection, identification and traffic management, effectively reducing the pressure on epidemic prevention and control, and also human resource costs.
Function& features
1.BODY TEMPERATURE MONITORING
Set the body temperature threshold, through the associated access control, do not open the door and push the alarm when someone is exceeding the threshold.
2.INTELLIGENT RECOGNITION
By comparison with the face photo database, recognize visitors who are in the whitelist, blacklist or a stranger; both can do face recognition, and also check for wear masks
3.ALARM PUSH
For abnormal body temperature, no mask, stranger or blacklisted person, push alarm to mobile APP.
Specifications
| Technical parameters of Face recognition terminal |
| Size of face terminal |
155mm*105mm*660mm (L x W x H ) |
| Operating system |
Android 5.1 |
| network support |
10M/100M adaptive Ethernet, support WIFI, external 4G module
|
| Display monitor |
7 inches
|
| Technical parameters of turnstile gate |
| Size of housing: |
1400mm (L) * 200mm (W) * 1000mm (H)
|
|
Pass through width
|
widely 60 /90cm ,or (120cm and custom-made) for a pair |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed)
|
| Drive motor: |
standard DC 24 V brush motor ( or custom brushless) |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
|
Time to work after power on:
|
3 seconds |
|
Reset time after break down:
|
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃
|
|
Communication interface:
|
standard RS 485 interface, distance ≤1200m
|
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
|
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel
|
| Working voltage: |
AC220±10%V 50±10%HZ |
Project Example
a. Fitness,Gym, Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall.
b. Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance
Special function
1. LED counting function
2. Box house can lengthen, swing arm lengthen
3. Infrared logical judgment function (you can choose 8 pairs or 10 pairs Infrared) Voice Prompt Function
4. Normally open or closed can be adjust to meet the requirements of the different place. Sound and light alarm prompt functions
5. Stroboscopic lamp prompt function: site administrator can find the turnstile problem quickly and accurately.
Access control system
1. we can offer the access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
