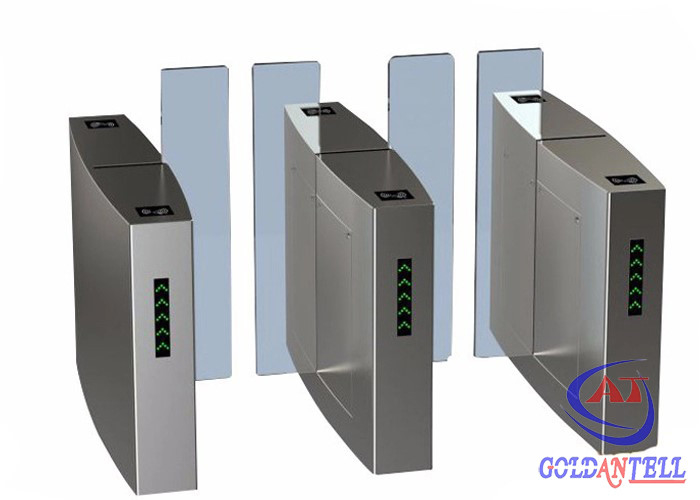

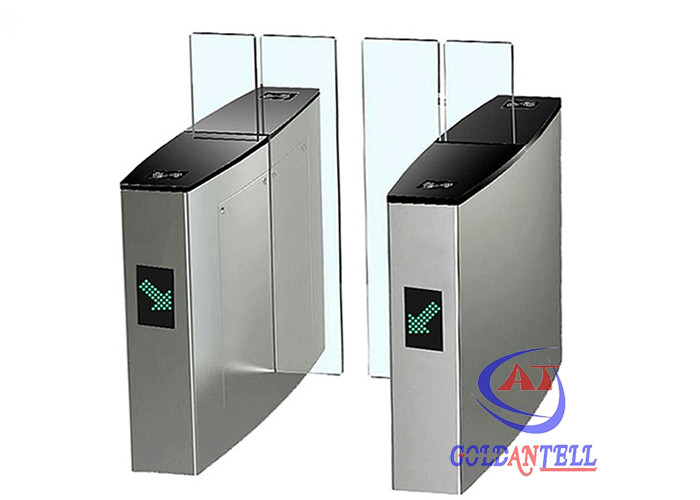

Automatic Pedestrian Sliding Speed Gate Turnstile for Access Control System
Futures:
1.We have proffeionsal R&D department,we can make design under your requirement.
2.Size,shape,materail can make under your requirement.
3.If you have any question,our after sale department will help you.
Speed Gate Turnstile Technical Parameters:
| 1 |
Power |
AC 220±10%Volt, 50HZ |
| 2 |
Operating temperature |
-15°C--75°C |
| 3 |
Relative Humidity |
≤95%, No Condensation |
| 4 |
Arm length |
51cm |
| 5 |
Passing Speed |
30~40 persons/min(IC Card) |
| 6 |
Motor |
0.5NM/24V(Fully Automatic) |
| 7 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V |
| 8 |
Communication Connection |
RS485 Communication Module Standard. |
| 9 |
Material |
SUS304,thickness is no less than 1.3mm |
| 10 |
Protection Grade |
IP54 |
| 11 |
Colour |
SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 12 |
Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
Introduction of swing barrier
1. Problem-self-checking function.
2. Many options of working ways: bi-direction card reading; one direction card reading and another no
reading; one direction card reading and another freely. And single direction photocell controlled passing
and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set
in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height
turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back
from the flap barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: if there is no open single, arm will be holding tightly.
|Package:
FAQ:
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life ,No Attrition ,Low-Noise ,Hight Intelligence .9 Pairs of infrared sensors , including 6 pairs for logic judgment function , and 3 pairs for protection .anti-tag after, anti-hit against .
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the flap gate Working environment ?
-------- They can be used indoor and outdoor(added the rainshed)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
--------2 years warranty .
