disabled convenient Access Control Turnstiles RFID automatic gate for outdoor

  • disabled convenient Access Control Turnstiles RFID automatic gate for outdoor
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/SGS/IS9001
Model Number GAT- custom
Minimum Order Quantity 1 set
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-9 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Automatic Swing Barrier Power Supply AC100V-240V
Usage Outdoor , Indoor, Subway Station Mall Access Width 550~1200mm
Function Waterproof Size L1500*W120*H1000mm
Operating Temperature -10°C To +75°C Passing Speed 40persons/min
Highlight

swing gate turnstile

,

waist high turnstiles
Leave a Message
Product Description

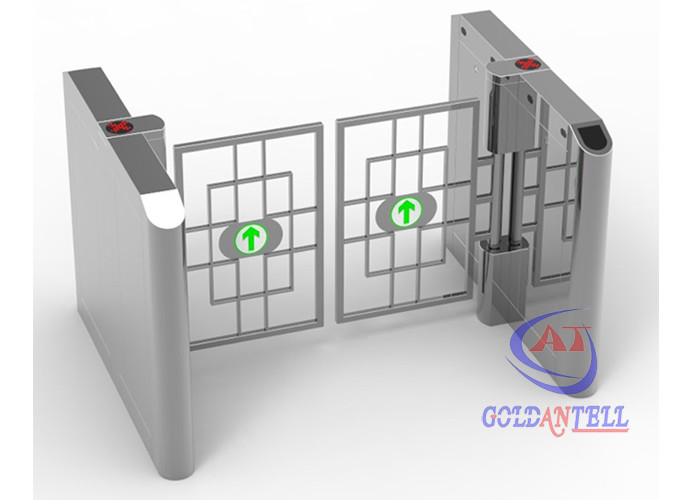

Disabled convenient access 1000mm wider barrier RFID automatic gate for outdoor

————————————————————————————



Working Performance

1. Heavy duty, high Size prevents user from climbing over the gate to gain unauthorized access.

2. Anti-crash funtion. even if pedestrian forcefuly crash the swings gate, it can run smoothly well.

3. Auto close timer protection. Arms will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.

5. Emergency evacuation.During power failure, swing arms will automatically open and will automatically close back after power supply resumed. Of course,the swing arms can be automatically locked if power failure and only be open by access control ,to meet different demand of users.

6. Easy integration. Reader holder bracket is available for installing RFID wristband / token / cards reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket as well.

7. With function of self-examine and alarm, it is convenient for maintenance and use.

8. Being able to program running status by the small keyboard in the main board.


Technology parameter
Optimal flow rate 40 persons/min (open), 25-30 persons/min (closed)
Cabinet dimension 1200(L)* 280(W)* 1000(H)MM
Open type push button/ access control
Passing direction single in/out or Bidirectional
Working temperature -15°C +75°C
communication with computer standard RS485, TCP/IP
Reset time after break down default 10s,can be changed to fit different demands
Wing Material stainless steel
Access Readers rfid cards , fingerprint, Barcode ,ticket scanners
Input Connection +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
More Optional function coin controller, counter , sound alarm, speakers
Running Life 3 Million(Continuous Opening and Closing Operation)
Protection Grade IP54



Site Appication

Access Width : within 900mm space, more comfortable for pedestrian to pass through the gate.

♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.

♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.

disabled convenient Access Control Turnstiles RFID automatic gate for outdoor 0



Feature & Function

1. With function of self-examine and alarm, it is convenient for maintenance and use.

2. Being able to program running status by the small keyboard in the main board

3. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.

5. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.

6. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.

disabled convenient Access Control Turnstiles RFID automatic gate for outdoor 1
