Product Details:
Payment & Shipping Terms:
|
| Size Of Product: | 1200*168*1000mm | Material: | 304 Stainless Steel/316 Stainless Steel |
|---|---|---|---|
| Type: | Pedestrian Barrier Gate | Passage Width: | Adjustable From 500mm-900mm |
| OEM: | OEM Arm Length,custom Logo,custom Size | Communication Port: | RS485 ,TCP/IP |
| Net Weight: | 45KG/set | Gross Weight: | 50KG/set |
| Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Trade Terms: | EX-W,FOB,CIF,DDU（select Area) |
| Support: | Operating Video& Instruction Will Be Sent To Clients To Help Them Better Use The Machines. | ||
| High Light: | swing gate turnstile,security swing gate |
||

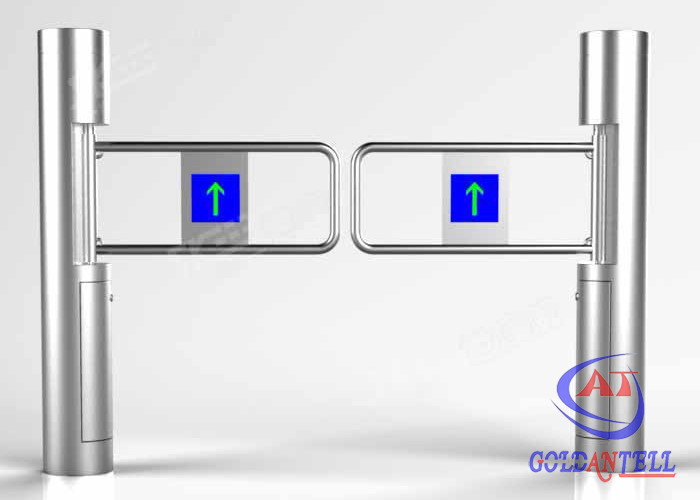

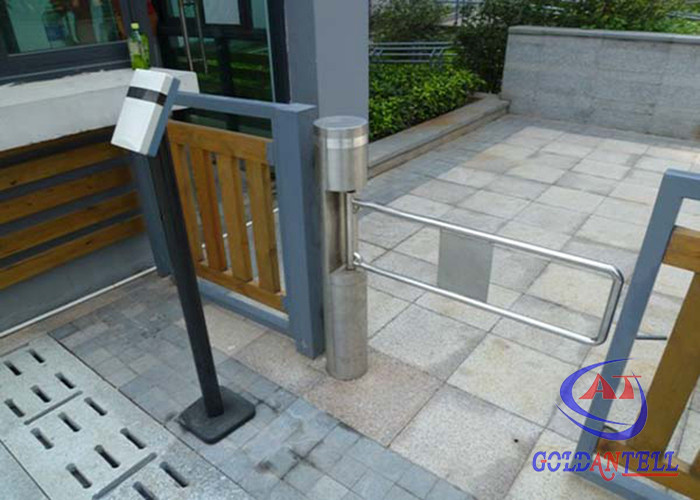

RFID / IR Sensor Cylinder pedestrian barrier gate For Residential Community
Pedestroam Barroer Gate Specification
| Power |
AC100V~240V, 50/60HZ
|
|
Operating Temperature
|
-15°C~75°C |
|
Relative Humidity
|
≤95%, No Condensation |
|
Access Width
|
≤600mm, If your projects need more space, it can be customized |
|
Passing Speed
|
30~40 persons/min(IC Card) |
|
Motor
|
0.5NM/24V(Fully Automatic) |
|
Input
Connection |
+12V Level Signal or Pulse Wide>100ms DC12V |
|
Communication
|
RS485, Communication Distance <=1200meters |
|
Material |
304 Stainless metals, thickness is 1.0~1.5mm, can be customized. |
|
Protection Level |
IP54 |
|
Color |
Stainless Steel Brushed / Coating(Optional) |
| Applications |
Supermarket
Metro Station,
Exhibitions,
Stadium,
Exhibition,
Sports Center,
Park, or other Amusement Arcade,
Tourism Area, Swimming Hall,
Factory, or ,Enterprises
For Entrance and Exit Attendance, Gateway Toll System, Charge Management,
and any other environments which need People Access Control Management. |
Goldantell Pedestrian Barrier Gate Introduction&Specification
Through many years research and development,Goldantell supermarket turnstile gate is a high-tech
product which mainly provides intelligent management to passageway.This product is finely processed
with complete functions and high evel, epecially suitable for baggage and disabled persons,etc.
Function of Pedestrian Barrier Gate
1 . The gate is Bidirectional, according the infrared sensing to enter and exit the passageways.
2 . Turnstile can setting the working condition by press the button of main control board.
3 . Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet
the hinder during the reset time, the electrical machine closed work automatically in specified time, the
turnstile will default the delayed and reset again till reset succeed)
4 . The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction
gate.
5 . Before received the open signal, the turnstile will lock automatically
6 . The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision,
the arm will open to protect the Transmission of inner machine.
7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you
didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is
1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
8. The turnstile can work with door access control system/ consumption system /biometric recognition
system/ ESD system and so on
9 . The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
10 . Can manager and long-range control the turnstile directly by managing the computer.
Appearance, Dimension, Material & Surface Finish
Appearance: customized according to customer’s requirement.
S stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Surface finish of the cabinet: satin finish / polishing / anti-fingerprint/frosted finish / electroplating / baking
finish.
System Integration of Pedestrian Barrier Gate
Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
