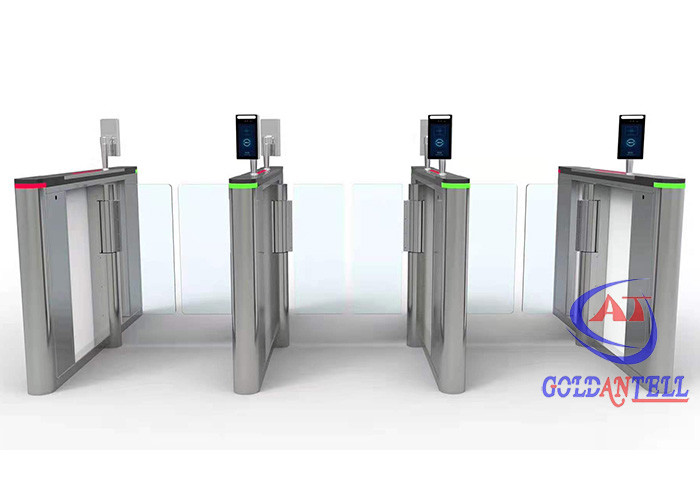

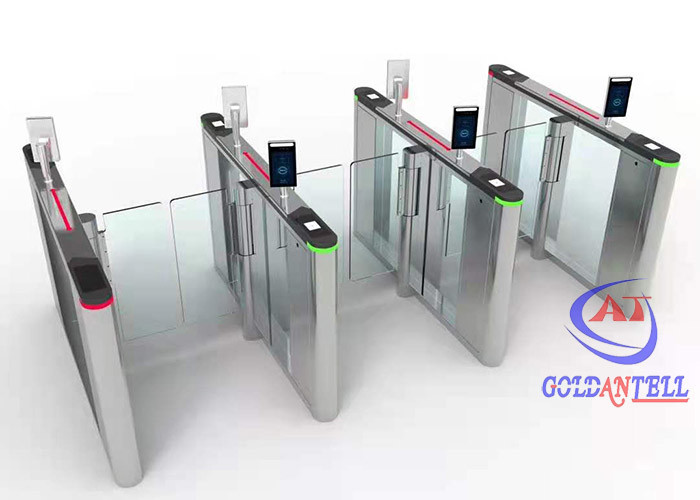

Crowd Control Passport Scanning Turnstile Swing Checkpoint Automatic For Immigration Hall
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-623 |
| Minimum Order Quantity | 1pcs |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Product Details
| Passing Speed | 45persons/min | Driving Motor | 24V Brushless DC Motor |
|---|---|---|---|
| Power Supply | AC100V-240V | Material | Stainless Steel 304/316 |
| Dimension | 1400 * 120 * 1000mm | Lane Width | 60,90,110cm Or Others |
| Working Voltage | AC110/220±10%V , 50±10%HZ | Operation Temperature | -10 °C - 70 °C |
| Highlight | DC24V Swing Barrier Gate,650mm Swing Barrier Gate,DC24V Automatic Barrier Gate |
||
Product Description
Crowd Control Passport Scanning Turnstile Swing Checkpoint Automatic For Immigration Hall
Crowd Control Passport Scanning Turnstile Swing Checkpoint Automatic For Immigration Hall
Turnstile Swing Checkpoint Description
- Goldantell barrier gate is designed to control pedestrians entering or exiting restricted areas, typically used in high pedestrian traffic flow environments with bidirectional access
- Sleek design and smaller footprint make it compatible with any upscale business or institutional environment
- Prevents illegal entry and exit with automatic arm release in emergency situations
- Combines slim line styling with one of the industry's widest passages, featuring clear bi-directional swinging motorized barrier panels
- Equipped with special fire control interface to meet fire control passage requirements, enabling rapid emergency response
Technical Specifications
| Specification | Details |
|---|---|
| Size | 1500mm (L) × 120mm (W) × 1000mm (H) |
| Working Voltage | AC110/220±10%V, 50±10%HZ |
| Working Environment | Indoor / Outdoor (Shelter) |
| Operation Temperature | -10°C to 70°C |
| Passage Width | 650mm (or customized 900mm) |
| Opening Time | 0.2 second |
| Pass Speed | 35 persons/min |
| Emergency Function | Arms open automatically when power is off |
| LED Light | Direction arrow indicator |
| Direction | Single or bi-directional (optional) |
| Relative Humidity | ≤90% coagulation free |
| Communication Interface | Standard RS485 interface, distance ≤1200m |
| Housing Material | Domestic standard 304# stainless steel |
| Input Interface | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Security Features
- Smooth system operation with long-life performance, high reliability, and fast response
- Alarm function for illegal intrusion and reverse intrusion detection
- Infrared sensor to prevent pedestrian pinching
- Anti-breakthrough function - gate locks automatically until opening signal is received
- Anti-trailing function - turnstile locks if someone attempts to enter without proper RFID card authentication
Applications
Public Places: Lobby entry, Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadium, Museums, Apartments, Residence Area, Offices, Commercial buildings
Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym
Business Organizations: Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance
Frequently Asked Questions
- Are you a factory or trading company?
Vivian: With waterproof function, could be used outside. - How about your package?
Vivian: Seaworthy wooden case + Foam. - How about the payment method?
Vivian: Standard products: 50% deposit, 50% balance payment before shipment. - How about the lead time?
Vivian: Regular products need 5-8 working days. The customized products need 9-13 working days.
Service & Shipping
- Any email will be checked in 5 minutes, any inquiry will be replied to within 1 hour, and any solution will be supplied in 1 day
- Professional R&D team and manufacturer, supply OEM & ODM services
- Best quality, Fashion design, reasonable & competitive price, fast lead time
- After-Sale Service: standard one-year warranty and whole-life technical support
Why Choose Our Turnstile Swing Checkpoint?
- We Focus on Turnstile for more than 13 years
- We do customize Service - OEM and ODM available
- We Optimize For Lower Cost - remove unnecessary features/use mould design to save your money
- We Timely Response every customer - respond to customers within 3 minutes and assist with project solutions
