Customized Rfid Reader Swing Gate Turnstile Half Height One Lane 850mm Width
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-635 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304 Stainless Steel/316 Stainless Steel | Application | Bank, Hospital, Airport, Office |
|---|---|---|---|
| Passage Width | 600-1200mm | OEM | OEM Arm Length,custom Logo,custom Size |
| Communication Port | RS485 ,TCP/IP | Net Weight | 50KG/set |
| Gross Weight | 60KG/set | Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Wing Material | Acrylic | ||
| Highlight | security swing gate,waist high turnstiles |
||
Product Description
Customized RFID Reader Swing Gate Turnstile Half Height One Lane 850mm Width
Standard Features
- Directional LED Optical Signals: Green Arrow or RED Cross signage
- Fault self-check function and alarm function for easy maintenance
- Specially processed mechanism for enhanced durability
- Always open or close modes with automatic acrylic retraction during fire alarms
- Ensures rapid, efficient and safe access control
- Individual installation interface for integration with various card systems
- Standard photo electric beams installed on all models
Product Introduction
The Swing Turnstile is available in Semi-Automatic, Manual, or Full-Automatic types. The turnstile arm rotates 180 degrees per cycle, providing comfortable space for users. Available in multiple configurations including bridge shape (this model), vertical shape, pillar shape, and with single or double motor options.
Technical Specifications
| Control Methods | Push button, RFID card, fingerprint recognition etc. |
|---|---|
| Normal Running Life | 3 million cycles |
| Opening/Closing Time | 1 second |
| Working Voltage | AC220±10%V 50±10%HZ |
| Dimensions | 1200mm (L) × 300mm (W) × 1000mm (H) |
| Passage Width | 600-1200mm |
| Swing Arm Angle | 90/180 degree |
| Direction | Single or bi-directional (optional) |
| Pass Speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Working Environment | Indoor/outdoor (with cover), -10℃～70℃ |
| Driving Motor | DC 24V brush motor |

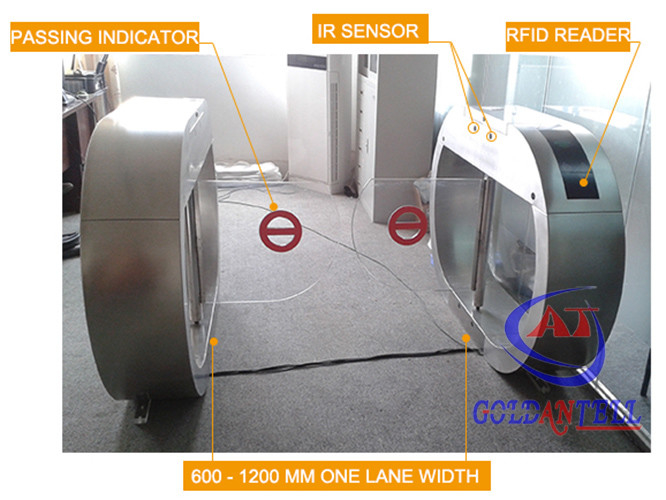

Product Display
Advanced Features
Multiple working modes including bi-directional card reading, single direction reading, and photocell controlled passing
Working modes configurable through control panel
Automatic arm opening during power failure with automatic holding when power restored
Adjustable closing delay from 1-60 seconds via control panel
Alarm system for unauthorized passage attempts
Standard electrical interface for integration with various readers
Option for card-reading with or without memory function
Quiet operation with stable performance
