Outdoor Durable Theftproof Fingerprint Turnstile Barrier Gate 304 Stainless Steel
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-303 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T, Western Union, L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 1200mm (L) * 280mm (W) * 1000mm (H) | Compatible | Fingerprint Control Software And System |
|---|---|---|---|
| Communication Port | RS485 ,TCP/IP | Application | Pulic Toilelt, Park, Office Building, Club, Etc. |
| Net Weight | 55KG | Gross Weight | 60KG |
| Product Name | Esd Testing Turnstile | Material | 304 Stainless Steel |
| Highlight | turnstile security gates,pedestrian security gates |
||
Product Description
Outdoor Durable Theftproof Fingerprint Turnstile Barrier Gate 304 Stainless Steel
Turnstile Specifications
| Turnstile Size |
1200 mm (L) * 280 mm (W) * 1000 mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Arm width: | 510 mm |
| Passage width: |
≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: |
When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Housing material |
domestic standard 304# stainless steel |
| Input interface: |
+12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
Fingerprint Reader Specifications
- Using the environment temperature 0 ℃ - 45 ℃
- Using the environment humidity 20% to 80%
- Size :73 * 148 * 34.5mm
- Fingerprint Capacity: 1500pcs
- Card Capacity: 10000pcs
- Record capacity: 100000 pcs
- Access port door sensor, alarm, electric lock, door switch
- Networking way TCP/IP port, RS485 network communications
- USB interface using USB data to upload, download
- Fingerprint readers collector new hd without film
- Resolution 500 dpi
- Display and operation hints the power indicator light, the double lamp LED status indicators
- Recognition rate for 2 seconds or less
- Misjudgment rate of 0.0001% or less
- From the rate of 0.01% or less
- Alarm processing teardown processing (alarm when conduction)
- Algorithm platform latest high-speed twin-engine fingerprint recognition algorithm
- Hardware platform 12 v DC, standby current < 500 mA, working current < 400 mA

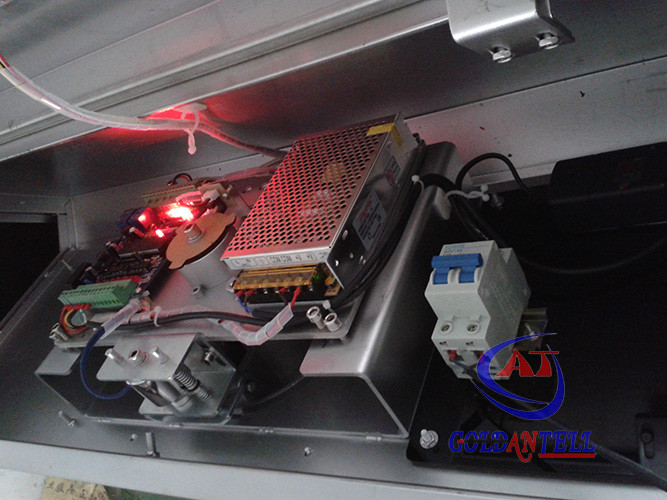

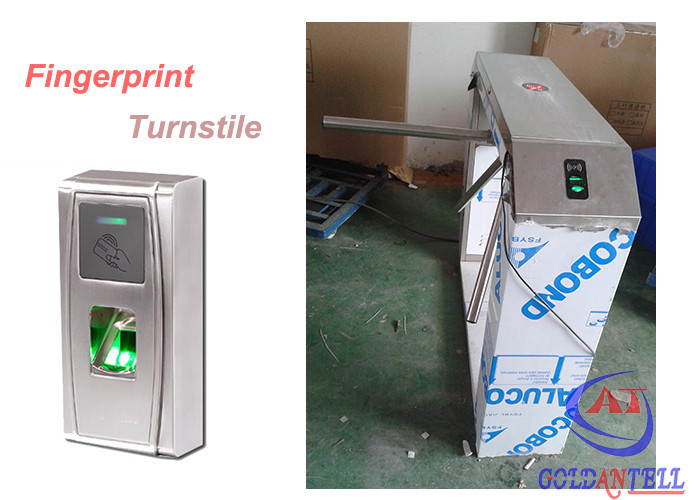

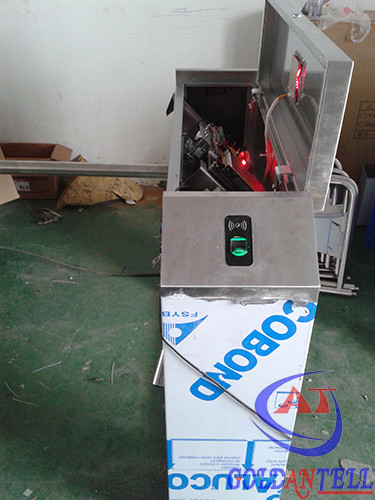

Details show
All of our turnstile can support Fingerprint control system. it is very easy for you to use and operate our product.
Feature & functions
- The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile).
- Turnstile can setting the working condition by press the button of main control board.
- Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you).
- The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
- Once an open signal is give, the arms will rotate automatically to a certain angle,and prompt the pedestrian to pass the gate.
- LED indicator light
- Auto- drop- arm function: the arm can drop down automatically (default) (or free passing) when the power is off.
- Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
Package
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.
