Biometrics turnstyle gates , tripod Half Height Turnstiles Access Control System
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-301 |
| Document | Goldantell Turnstile & Faci...og.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T, Western Union, L/C,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Pulic Toilelt, Park, Office Building, Club, Etc. | Net Weight | 65KG |
|---|---|---|---|
| Gross Weight | 70KG | Product Name | Biometrics Fingerprint Access Control Turnstile Gate |
| Material | 304 Stainless Steel/316 Stainless Steel | Type | Semi Automatic/full Automatic |
| Package Size | 1280mm (L) * 380mm (W) * 1080mm (H) | Compatible | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Size Of Product | 1200mm (L) * 280mm (W) * 1000mm (H) | Communication Port | RS485 ,TCP/IP |
| Highlight | turnstile security gates,pedestrian security gates |
||
Product Description

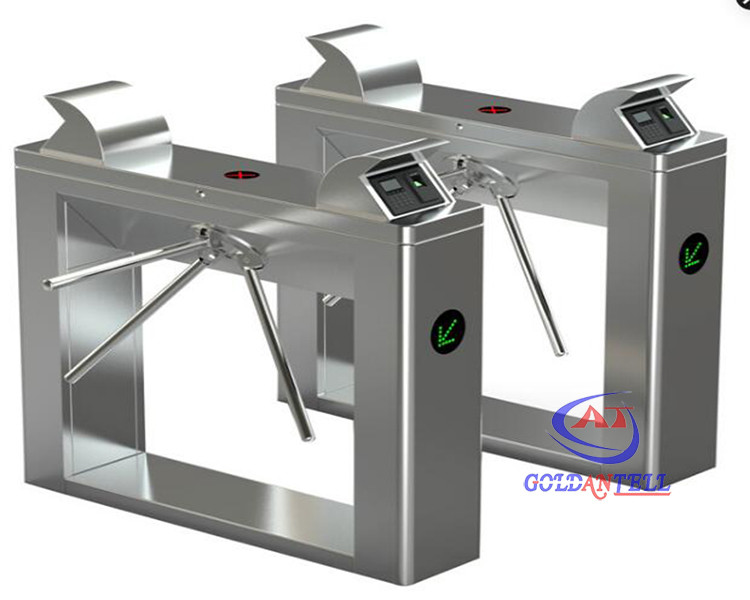

Biometrics turnstyle gates , turnstile tripod With Fingerprint Access Control System
Specifications:
| Technical Parameters | |

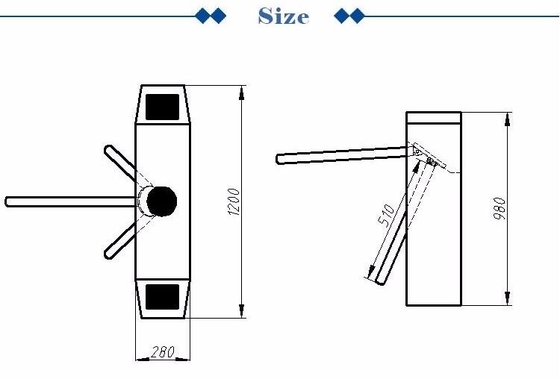

| Size |
1200 mm (L) * 280 mm (W) * 1000 mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Arm width: | 510 mm |
| Support force of arm: | 60 kg |
| Passage width: |
≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: |
When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Housing material |
domestic standard 304# stainless steel |
| Working movement | DC 24V solenoid valve |
| Input interface: |
+12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
Feature & function:
1. Auto replacement function, reposition after person pass by
2. Anti tail function auto-lock once turn 120° .
3. Arms auto drop when power off , insure unblocked when accident
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work
5. Diverse control mode optional, changeable due to varying, convenient for your manage
6. Auto alert error function, comfort for user maintain and operate
7. Manual button or remote control ,Bio-directional passage
8. Open signal with memory or with out set function
9. Red and green light to show pass or stop, leisure to exit and entrance
Application:
1. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
2. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
Attendance.
Competitive Advantage:
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear
any fee.
