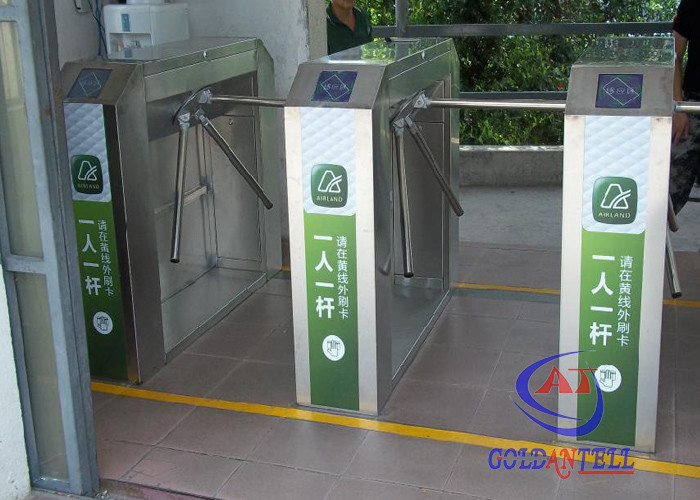

Bidirectional all electric mechanical Tripod Turnstile Gate for scenic spot school station

Bidirectional all electric mechanical Tripod Turnstile Gate for scenic spot school station
Bidirectional all electric mechanical Tripod Turnstile Gate for scenic spot school station

Large Image :  Bidirectional all electric mechanical Tripod Turnstile Gate for scenic spot school station

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-316
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Inside carton outside wooden case or crate Package
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: Access Control Tripod Turnstile Size: 1200*280*990mm
Material: 304 Stainless Steel Direction: Single Or Double Direction For Optional
Type: Full Automatic , Semi Automatic , Manual For Option Access Control: RFID Card , ESD ,Token , Coin , Bimetric System , Barcose Scanner
Working Temperature: -15~+75 °C Interface: RS485, TCP/IP
Working Environments: Indoor / Outdoor Widht: 600mm
Arm Lenght: 500mm
Highlight:

turnstile security gates

,

pedestrian security gates



Bidirectional all electric mechanical Tripod Turnstile Gate for scenic spot school station





Stainless Steel Tripod Turnstile Brief Introduction



This portable tripod turnstile is intergrated with mechanism,electric and micro-controller and various kinds



of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide



intelligent control and management to flow control.





Made of 304 /316 stainless steel,Goldantell portable tripod turnstile with nice and elegant



shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a



passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.





Technical parameters



Housing material: domestic standard 304# stainless steel

Working voltage:AC220±10%V 50±10%HZ

Working movement :DC24V solenoid valve

Size:1200mm (L) * 280mm (W) * 980mm (H)

Arm width:530 mm

Passage width:≤600 mm

Direction: single or bi-directional (optional)

Normal running life: 3 million

Pass speed: 30 persons/min

Time of opening: 0.2 second

Communication interface: standard RS485 interface, distance ≤1200m

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA





Description:



  • System Integration: This equipment is integrated with mechanism,electric and micro- controller and
  • various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on, to
  • provide intelligent control and management to flow control.
  • Standard features: Made of 304 /316 stainless steel,Goldantell tripod turnstile with nice and elegant
  • shape, anti- rust,durable, Resistant to external damage.
  • Standard Functions: Rectangular box and brake lever to be a passage,provide orderly passage to
  • people. Prevent illegal in and out.Arms off in emergency case.
  • Classification: 1) full automatic 2) semi-automatic 3) manual, the semi-automatic is the most widely used.
  •  Application place: This item is widely used in station,pier,subway,factory,office building,intelligent
  • community, hotel, clubs, enterprise, etc.



Standard Functions & Features





Tripod turnstile function & Features



Fully automatic

Semi automatic

Manual operation



1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.



×

×



2. Turnstile can setting the working condition by press the button of main control board.



×



3. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.



Auto-drop-arm

Auto-drop-arm

NO action



4. Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off.



Auto-lift-arm

manual- lift –arm

NO action



5. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on



×



6. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you)



×



7. LED indicator light



×



8. Once an open signal is give, the arms will rotate automatically to a certain angle, and prompt the pedestrian to pass the gate.



×





Stainless Steel Tripod Turnstile Feature


The Tripod Turnstiles are very robust products able to function inside and outside buildings.

The Tripod Turnstile is a waist-height tripod turnstile in a self-supporting housing (2 Feet).

The Tripod Turnstile with dropping arm to free the walkway in the event of an emergency or for certain

applications



1. The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.

2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.

3. Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board).

4. Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).

5. Automatic-rotation function: once an open signal is given, the arms will rotate automatically.

6. Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off.

7. Auto-lift-arm function: when the power is on again, the arm can also lift automatically

8. Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

9. Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home

10. Optional indication of Mulit LED

11. Optional indication of inside LED counter or outside LED counter

12. With interface of switch of relay, compatible with all the access controller

13. Equipped with free control software for man-machine interface & control command SDK.

14. Through the management computer to realize remote control and management.





Competitive Advantage



1 . More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom

package.



2 . Special service from Goldantell:

For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if

spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any

fee.



3.you dont need to worry about the aftersale service, we got good aftersale service for you to do replacement and whole lifetime repair.



4. you dont need to worry about the installation and technical problems, we got 8 year expericed engineer always stand-by for your service.



5.you dont need to worry about that we will cheat you about the money. you got alibaba trade assurance, you can totally rely on alibaba.
