Office Building electronic Tripod Half Height Turnstiles Gate With RFID Fingerprint Reader
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/SGS/IS9001 |
| Model Number | GAT-302 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Inside carton outside wooden case or crate Package |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Tripiod Turnstile | Size | 1200mm (L) * 280mm (W) * 980mm (H) |
|---|---|---|---|
| Material | 304 Stainless Steel | LED Light | Direction Arrow |
| Power Supply | AC220±10%V 50±10%HZ | Compatible | -10℃～70℃ |
| Arm Width | 510 Mm | Passage Width | 550--600 Mm |
| Highlight | pedestrian security gates,stainless steel turnstiles |
||
Product Description

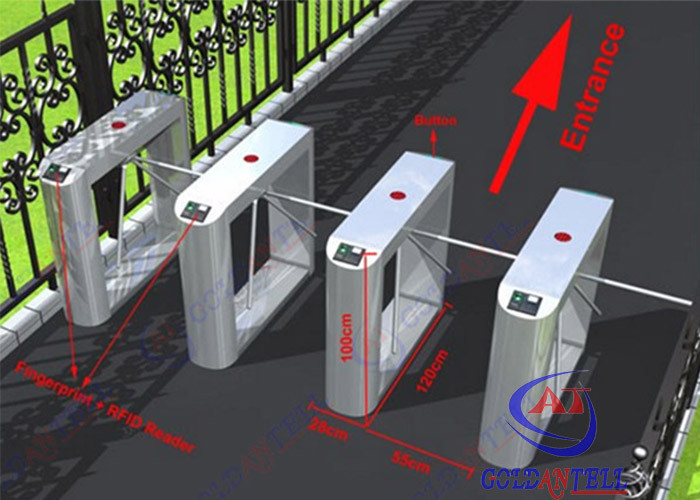

Office Building Access Control electronic Tripod Turnstile Gate With RFID Fingerprint Reader
Technical parameters
| Housing material | domestic standard 304# stainless steel |
| Working voltag | AC220±10%V 50±10%HZ |
| Size | 1200mm (L) * 280mm (W) * 980mm (H) |
| Arm width | 510 mm |
| Passage width | ≤600 mm |
| Communication interfac | standard RS485 interface, distance ≤1200m |
| Direction | single or bi-directional (optional) |
| Time of opening | 0.2 second |
| Pass speed | 30 persons/min |
| Input interfac |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
System Integration
This equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.
The feature of turnstile barrier
1 . Running stablely without noise and mechanical impact
2 . The passing person number of the persons can be set
3 . Several ways of working molds for your demand chosen
4 . Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
5 . The electrical interface connected with various kinds of reader and writer equipment
6 . Direction-guide lights in the turnstile to tell you whether the direction to go or not
7 . All the functions realized in one integration machine and controlled and managed by the computer in the far distance
8 . Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
9 . The number of the persons passed by can be counted automatically which can also be displayed in LED
10 . Beam can be lifted and fall when power is cut-off
11 . The function with or without card-reading memory cab be set according to your demand
Application
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence
Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special
Access Control
The package of turnstile barrier
1 . Inside with a carton package.
2 . Outside,there are 2 kinds of packages for your choice:
crate package and closed wooden package
