Automatically Tripod Turnstile Gate , Rotary drop arm barrier Fingerprint Recognition Controlled

  • Automatically Tripod Turnstile Gate , Rotary drop arm barrier Fingerprint Recognition Controlled
  • Automatically Tripod Turnstile Gate , Rotary drop arm barrier Fingerprint Recognition Controlled
  • Automatically Tripod Turnstile Gate , Rotary drop arm barrier Fingerprint Recognition Controlled
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-303
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Of Product 1200mm (L) * 280mm (W) * 1000mm (H) Compatible ESD Testing System
Communication Port RS485 ,TCP/IP Application Pulic Toilelt, Park, Office Building, Club, Etc.
Net Weight 45KG Gross Weight 50KG
Product Name Esd Testing Turnstile Material 304 Stainless Steel
Highlight

tripod access system

,

tripod barrier
Leave a Message
Product Description

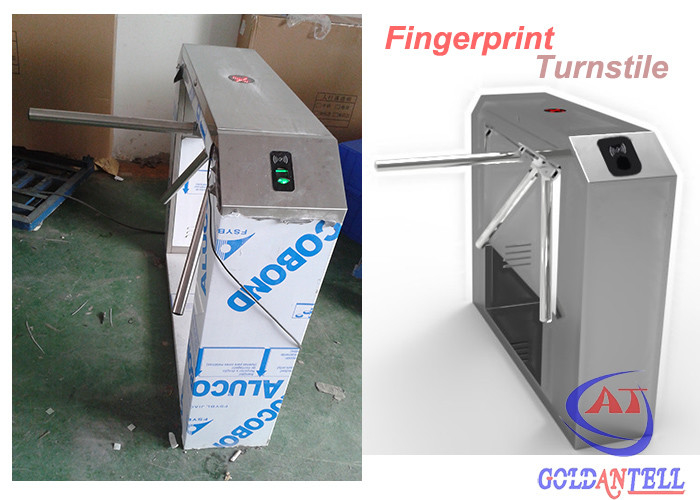

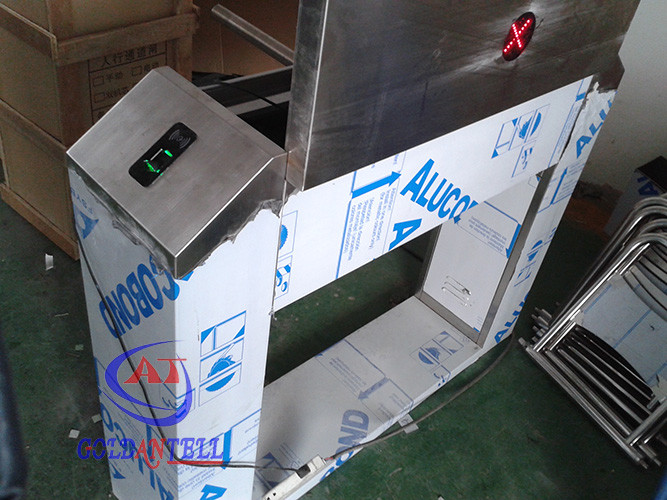

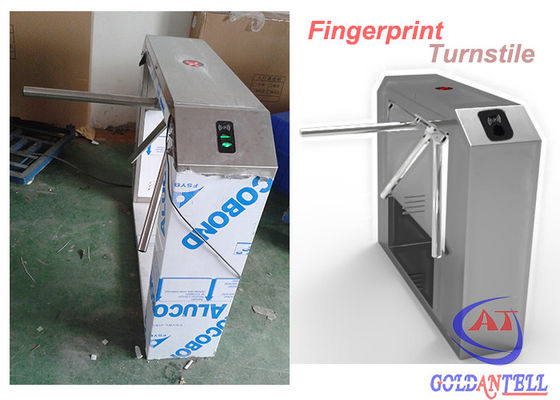

Automatically Tripod Turnstile Gate with Rotary Drop Arm Barrier and Fingerprint Recognition Control
Product Overview

Our turnstile gates support fingerprint control systems for easy operation and management. The system combines security with convenience for efficient access control.

Automatically Tripod Turnstile Gate , Rotary drop arm barrier Fingerprint Recognition Controlled 0
Turnstile Specifications
Specification Details
Turnstile Size 1200 mm (L) * 280 mm (W) * 1000 mm (H)
Working Voltage AC220±10%V 50±10%HZ
Arm Width 510 mm
Passage Width ≤600 mm
Opening Time 0.2 second
Pass Speed 30 persons/min
Emergency Feature Arm opens automatically when power is off
Normal Running Life 3 million cycles
LED Light Direction arrow indicator
Direction Single or bi-directional (optional)
Working Environment Indoor/outdoor (with tent) -10℃～70℃
Relative Humidity ≤90% (non-condensing)
Communication Interface Standard RS485 interface, distance ≤1200m
Housing Material 304# stainless steel
Input Interface +12V level signal or pulse width >100 ms 12V pulse

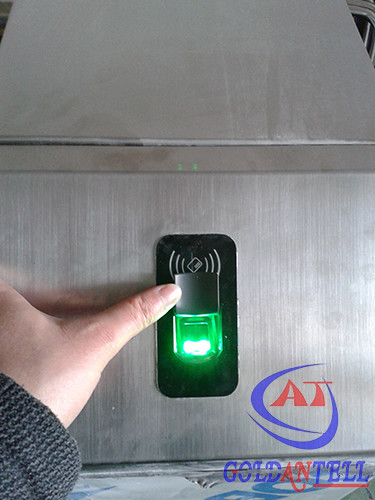

Fingerprint Reader Specifications
Automatically Tripod Turnstile Gate , Rotary drop arm barrier Fingerprint Recognition Controlled 1
  • Fingerprint Capacity: 1500pcs
  • Card Capacity: 10000pcs
  • Record Capacity: 100000 pcs
  • Access Port: Door sensor, alarm, electric lock, door switch
  • Networking: TCP/IP port, RS485 network communications
  • USB Interface: For data upload/download
  • High-resolution fingerprint collector (500 dpi)
  • Recognition Time: ≤2 seconds
  • Misjudgment Rate: ≤0.0001%
  • False Acceptance Rate: ≤0.01%
  • Alarm Processing: Tamper detection with alarm
  • Algorithm: Latest high-speed twin-engine fingerprint recognition
  • Power: 12V DC, standby current <500 mA, working current <400 mA
  • Operating Temperature: 0℃ - 45℃
  • Operating Humidity: 20% to 80%
  • Dimensions: 73 * 148 * 34.5 mm
Key Features & Functions
  • Automatic Reset: System cancels access authority if gate isn't used within adjustable time (1-60s)
  • System Integration: Works with access control, biometric, ESD, and consumption systems
  • Automatic Operation: Arms rotate to allow passage when valid access is detected
  • LED Indicators: Clear visual status indication
  • Bi-directional: Supports entry and exit through same gate
  • Configurable Settings: Adjustable via main control board
  • Power Failure Protection: Arms drop automatically when power is off
  • Power Restoration: Arms lift automatically with alert when power returns
Packaging Options
  • With access control system: Closed wooden case packing
  • Without access control system: Choice of crate or closed wooden box
Competitive Advantages
  • ODM/OEM Capability: 10+ years experience in custom designs, logos, and packaging
  • Professional Support: 16-hour customer service response
  • Complete Solutions: Product + system software management to save time and costs
  • Efficient Repairs: Video-based troubleshooting with free spare parts replacement within warranty
