Security Detector Metal Swing Turnstile Gate Automatic Access System For Metro

Security detector metal swing turnstile gate automatic access system for metro/airport/school/hospital

Product Description

1. This solution provides passengers double security protection for the passing.

2. Type: a) Metal detection door can be integrated with Turnstile gate, so if a pedestrian is detected to be carrying metal, no matter if he swipes a valid card or a barcode on the gate, the gate will not open to allow him to pass. b) Metal Detection door work stand.

3. Accuracy: The tallest intelligent degree is in the door exact center can examine a thumbtack or time type needle, can attain to walk to 100 times examine 100 times, can't fail to report with string. The influence that can expel buckle, shoes, and text chest...etc.

4. Application: Indoor or outdoor, widely used for metro, library, school, airport, amusement parks, stadiums, etc.

5. Direction: bi-direction ( or single direction), can be sett-up freely.

Technology Parameters Of Metal Detection Door

(1) The sign is up to standard:the nation is standard.
(2) Probe into procedure:100 class the intelligent degree regulate, can satisfy a different situation demand respectively.
(3) Basic safety:Satisfy GB4793 requests.
(4) Human body safety:Satisfy NILECJ-0601.
(5) The personnel passes a rate:More than 60 people/every minute.
(6) The power:220 V AC, 50|60 Hzs.
(7) The achievement consumes:35 Vas.The conveyance is all heavy:About 85 kgs
(8) Work environment:-30 ℃ ~45 ℃ , the ≤ is 95% RHs.
(9) Shape size:2220 H × 820 W × 550(deep) (MM)
(10) Passage size:2000 H × 700 W × 550(deep) (MM)

Technology Parameters Of Tripod Turnstile

Size	1200mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V , 50±10%HZ
Working movement	DC24V solenoid valve
Arm width:	510 mm
Support force of arm:	60kg
Passage width:	≤600 mm
Time of opening:	0.2 second
Pass speed:	30 persons/min
Emergence:	When power off, arm open automatically
Normal running life:	3 million
LED light:	direction arrow
Direction:	single or bi-directional (optional)
Working environment:	indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA



Feature & Function

1. Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.

2. Turnstile can setting the working condition by press the button of main control board.

3. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.

4. Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off.

5. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you).



Photos & Projects

1) Only Metal Detection Door

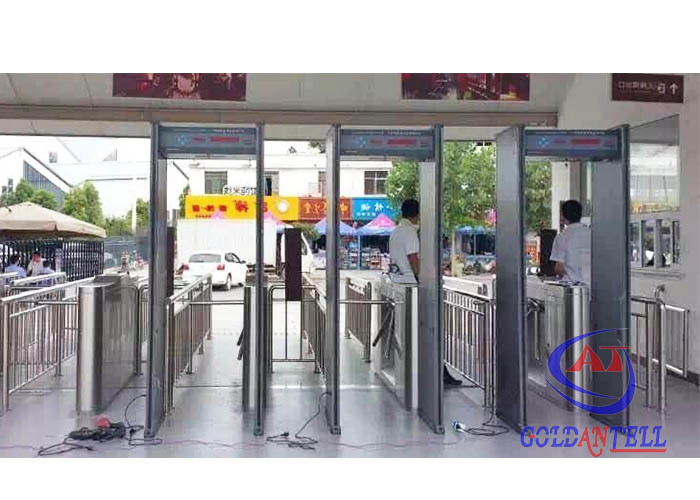

2) Metal Detection Door + Access controlled turnstile gate



Packing Details

1. With an access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.



Why Choose Us
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,ifspare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.



FAQ

1.What is your MOQ?

Vivian: Any quantity is acceptable.

2.payment term?

Vivian: 50% by T/T, 50% by T/T before delivery.

3. Can your machines be used outside?

Vivian: With waterproof function, could be used outside

4. What is the warranty for the machine?

Vivian: Within 1 year, if any quality problems, we will offer the accessories

5.How does your factory control the quality?

Vivian: Quality controlling from the beginning to the ending. And normally provide the testing video and detailed product photos for each order to let customer confirm before shipment.
