Heavy Duty Three Arm Tripod Turnstile Gate Half Height Vertical Turnstile Security Systems

  • Heavy Duty Three Arm Tripod Turnstile Gate Half Height Vertical Turnstile Security Systems
  • Heavy Duty Three Arm Tripod Turnstile Gate Half Height Vertical Turnstile Security Systems
  • Heavy Duty Three Arm Tripod Turnstile Gate Half Height Vertical Turnstile Security Systems
  • Heavy Duty Three Arm Tripod Turnstile Gate Half Height Vertical Turnstile Security Systems
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-301
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-10 working days after received your payment
Payment Terms T/T, Western Union, L/C,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Half Height Tripod Turnstile Application Place Amusement Park , Stadium , Pulic Area , Park , Office Building , Club, Etc
Gross Weight 70KG Material 304 Stainless Steel
Size Of Product 1200mm (L) * 280mm (W) * 980mm (H) Package Size 1280mm (L) * 360mm (W) * 1070mm (H)
Compatible RFID Reader & Fingerprint Reader , Coin Acess , QR Code Reader,Bar Code System ,ESD Tester Access Contro L, Remote Button Communication Port RS485 ,TCP/IP
Highlight

tripod access system

,

tripod barrier gate
Leave a Message
Product Description





Heavy Duty Three Arm Tripod Turnstile Gate Half Height Vertical Turnstile



Security Systems





 Half Height Turnstile Technical Parameters　



Technical Parameters
Size 1200 mm (L) * 280 mm (W) * 980 mm (H)
Working voltage AC220±10%V 50±10%HZ
Arm width: 510 mm
Support force of arm: 60 kg
Passage width: ≤600 mm
Time of opening: 0.2 second
Pass speed: 30 persons/min
Emergence: When power off, arm open
automatically
Normal running life: 3 million
LED light: direction arrow
Direction: single or bi-directional
(optional)
Working environment: indoor/outdoor (with a tent
over)
-10℃～70℃
Relative humidity: ≤90% coagulation free
Communication interface: standard RS 485 interface,
distance ≤1200m
Housing material domestic standard 304#
stainless steel
Working movement DC 24V solenoid valve
Input interface:

+12V level signal or pulse

width>100 ms

12V pulse,

drive current>10 mA

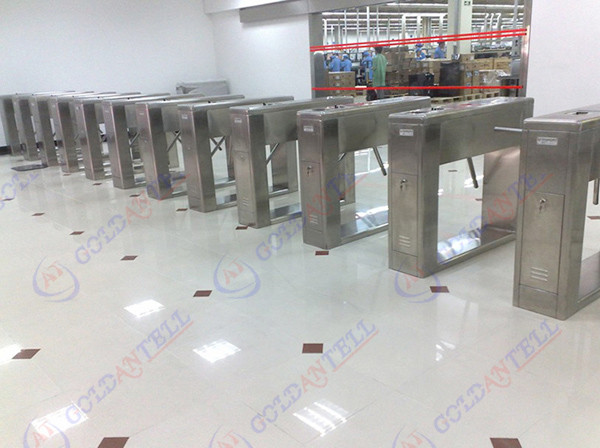

 Half Height Tripod Turnstile Product Pictures



Heavy Duty Three Arm Tripod Turnstile Gate Half Height Vertical Turnstile Security Systems 0

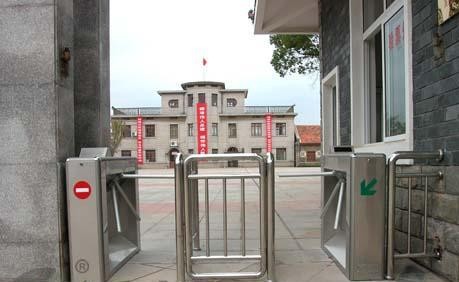

Half height turnstile with different access control system



Heavy Duty Three Arm Tripod Turnstile Gate Half Height Vertical Turnstile Security Systems 1



FAQ:



1 - Can you install RFID card reader on the turnstile?



Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd



system,etc.



2 - How about the guarantee and after sale service?



We have 24 months quality guarantee, We own well-tranied and passional sales & after- sale services who



can speak fluent Engligh language



3 - How long is the leading time?



For standard item


10-50 sets:5 working days


50-100 sets:7-10 working days


200-500 sets:10-15 working days


For special item, or need custom design package or logo, need 3-10 working days longer



4 - How about the payment terms?



TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order



security.



5 - How do you send the product to me,how long?



For sample,normaly send by air or express,about 3-5 days



For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.



6 - What is the package of the turnstile?



Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:crate



package and closed wooden package.



7 - Can you do OEM service?



We offer below OEM services:



1 ) we can make custom design tursntile,or you tell us your requirements,we can make a design for you.



2 ) Can print your logo on turnstiles, can customize the retail box packing and other things.
