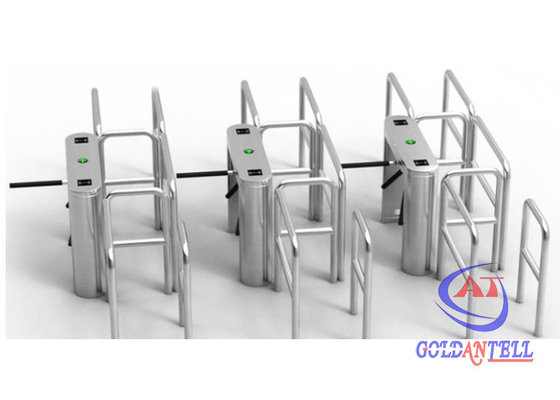

Bi-Directional mechanical ir sensor waist height tripod turnstile For Subway Station

Quick Description

1. It is suitable for areas with high traffic, such as airport/railway/metro/bus/park entrance or exit.
2. Type: full automatic ( arms auto on work status when power on); Semi-automatic; manual.
3. Tripod turnstile gate is ideal for indoor and outdoor settings, compact and cost-effective entrance solutions.
4. It can be integrated with any kind of access controller system (covering: face recognition terminal, QR code scanner, RFID device, Push button, Fingerprint and Bio-metric device).
6. Safety protection function: the tripod turnstile gate will drop down automatically when power off in case of emergency

7. The body is made of brushed stainless steel which is robust, rigid, anti-rust, and durable.

Technology Parameters

Size	1200/1400mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V, 50±10%HZ
Working movement	DC24V solenoid valve
Arm width:	510 mm
Support force of arm:	60kg
Passage width:	≤600 mm
Time of opening:	0.2 second
Pass speed:	30 persons/min
Emergence:	When power off, arms open automatically
Normal running life:	3 million
LED light:	direction arrow
Direction:	single or bi-directional (optional)
Working environment:	indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA



Feature & Function

1. Auto replacement function, re-position after person pass by.
2  Anti -tail function auto-lock once turn120° or 60°.
3. Arms auto drop when power off, ensure unblocked when accident.
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work.
5. Diverse control mode optional, changeable due to varying, convenient for your manage.



Application Location

♦ Exhibition halls

♦ Stadium

♦ Museums, Apartments

♦ Residence Area

♦ Movie theaters

♦ Fitness Gym.

♦ Factory

♦ Hospital



Application Design



FAQ

Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q. What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q. Do you test all your goods before delivery?
A: Yes, we have the 100% test before delivery, and will provide a testing video for your confirmation before shipment.
