Home ProductsTripod Turnstile Gate

Workshop turnstile entrance gates , esd turnstile security systems with Test Device

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Javier Torregrosa in Chile

Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Michael Fusco in USA

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Timmothy Mussared in Australia

I'm Online Chat Now

Workshop turnstile entrance gates , esd turnstile security systems with Test Device

Workshop turnstile entrance gates , esd turnstile security systems with Test Device
Workshop turnstile entrance gates , esd turnstile security systems with Test Device
video play

Large Image :  Workshop turnstile entrance gates , esd turnstile security systems with Test Device

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-302
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 2,000pcs per month
Detailed Product Description
Size Of Product: 1200mm (L) * 280mm (W) * 1000mm (H) Compatible: ESD Testing System
Communication Port: RS485 ,TCP/IP Application: Pulic Toilelt, Park, Office Building, Club, Etc.
Net Weight: 45KG Gross Weight: 50KG
Product Name: Esd Testing Turnstile Material: 304 Stainless Steel
High Light:

tripod access system

,

tripod barrier

Workshop turnstile entrance gates , esd turnstile security systems with Test Device



Specifications

Size

1200 mm (L) * 280 mm (W) * 1000 mm (H)

Working voltage AC220±10%V 50±10%HZ
Arm width: 510 mm
Passage width:

≤600 mm

Time of opening: 0.2 second
Pass speed: 30 persons/min
Emergence:

When power off, arm open automatically

Normal running life: 3 million
LED light: direction arrow
Direction:

single or bi-directional (optional)

Working environment:

indoor/outdoor (with a tent over)       -10℃~70℃

Relative humidity: ≤90% coagulation free
Communication interface:

standard RS 485 interface, distance ≤1200m

Housing material

domestic standard 304# stainless steel

Input interface:

+12V level signal or pulse width>100 ms

12V pulse, drive current>10 mA

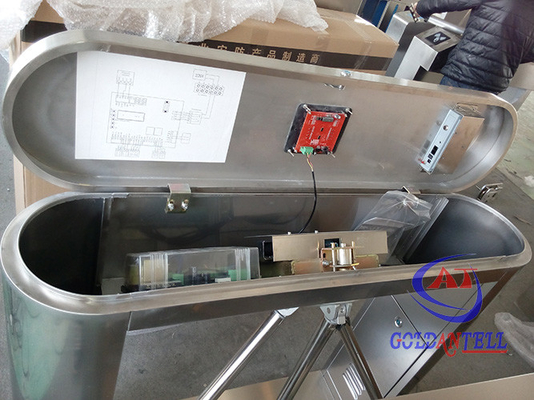

Details show

All of our turnstile can support ESD testing system. it is very easy for you to use and operate our product.



Workshop turnstile entrance gates , esd turnstile security systems with Test Device 0

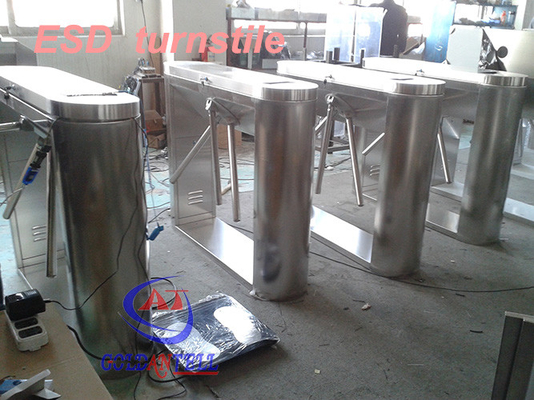

More Options For "ESD System Turnstile"

Workshop turnstile entrance gates , esd turnstile security systems with Test Device 1


Feature & functions

  • Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you).
  • The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
  • Once an open signal is give, the arms will rotate automatically to a certain angle,and prompt the pedestrian to pass the gate.
  • LED indicator light
  • The turnstile is bidirectional (pedestrian can enter and exit from one set of turnstile).
  • Turnstile can setting the working condition by press the button of main control board.
  • Auto- drop- arm function: the arm can drop down automatically (default) (or free passing) when the power is off.
  • Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.

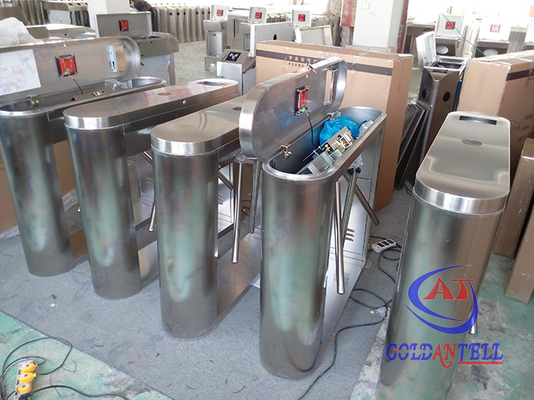

Accessories

Workshop turnstile entrance gates , esd turnstile security systems with Test Device 2



Package
1. With access control system, need the closed wooden case packing.
2. Without the access control system, two ways for your choice: crate and closed wooden box.





Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.

2. Friendly and professional customer service people help you in 16 hours.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear

any fee.
