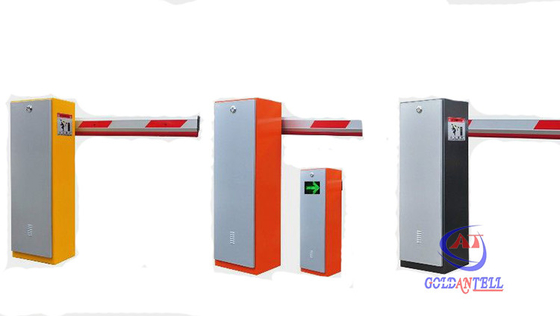

Automatic traffic LED straight Arm parking lot barriers Motor speed 30 r / min

Automatic traffic LED straight Arm parking lot barriers Motor speed 30 r / min

Technical parameters

1 . Power supply:AC220V±10%50HZ AC110V±10%50HZ/60HZ
2 . Working temperature:-40℃～85℃
3 . Control ways:push button/remote control/access control system like charging
system or RFID card reader
4 . Boom Type:straight/grid/folding
5 . Housing color:orange / blue/ yellow / red
6 . Usage time:≥5,000,000 times


Functions & Features

1) Manual release

2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3) Die-casting aluminum alloy motor, precision and good at thermal radiating

4) Motor cooling fan, solving the problem of heat-protection

5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)

6) Reversing on obstacle

7) Auto-closing

8) Support the INFRARER PHTOCELL for anti-bumping function (optional)

9) Support the external and internal VEHICLE LOOP DETECTOR (optional)

10) Traffic light interface

Use & operation safety notes

1. During arm going down, do not place anything under the booms; and no body is allowed to standing or walking under the boom.

3. When power cuts, first, turn off the power connection; then adjust the boom to vertical position by turning the manual swing manually.

4. Normally, users can not change the wire layout inside barrier gate. Please just connect the gate with 220V power supply.

5. The power supply system should be equipped with leakage breaker (≥10A).

6. Normally, do not increase or decrease the length or weight of the boom, to avoid losing balance. If necessary, professional staff is required.

7. During running, do not open the case-cover or case-door, to avoid accident.

Packing list of stardard configuration include
1 . Main case--1 set
2 . Boom--1 pcs
3 . Boom cover-plate--1 pcs
4 . M10*65 bolts,M10 nuts,Φ10 spring washer--4 pcs for each
5 . Control system (mounted inside main case)--1 set
6 . Remote controller--2 pcs
7 . Bracket (optional)--1 pcs
8 . Key--2 pcs
9 . Manual button--1 pcs
10 . Wire connection drawing--1 pcs
11 . Identification card--1 pcs
12 . Operation manual--1 pcs
13 . Certificate of qualification--1 pcs

More style to choice

Operation place of the LED boom Barrier Gate

1. Except the product, also offer the RFID card reader control system.

2. Only the boom barrier gate, you can use the button or remote controller to control it.

3. We offer a complete set of the tolling parking system, including barrier gate, ballot boxes, vehicle detector,Entrance control system main board, System special switching power supply, parking lot system management software with dongle , etc.
