Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Up Or Down Time: | 3 To 6 Seconds(can Be Adjustable) | Protection Grade: | IP54 |
|---|---|---|---|
| Material: | A3 Steel,anti- Rust Paint | Communication Distance: | ≤1200m |
| Communication Port: | RS485 ,TCP/IP | System Power:: | 1.5KW/2.2KW/3.7KW/5.5kw(heavy Duty) |
| Power: | AC220C/380V | Application: | Entrance Of The Hotel, Buildings, Main Street ,etc. |
| Rise Height: | 450mm | Operating Temperature: | -50°C~75°C |
| Highlight: | retractable barrier gate,car park boom gates |
||

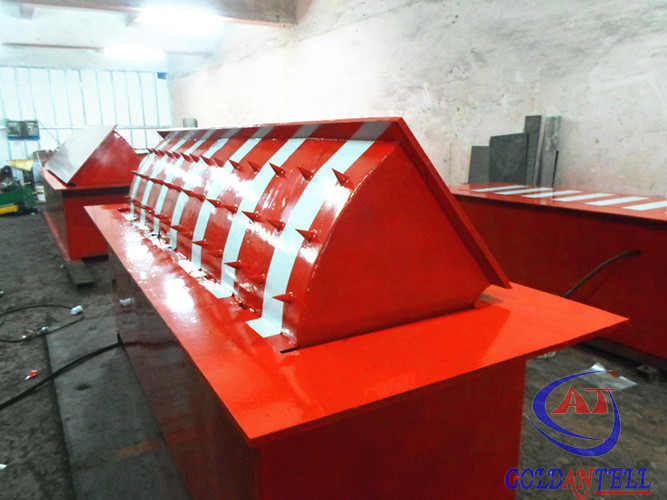

Traffic Automatic Remote Control Security Road Blocker Under Hydraulic System And A3 Steel With Rustproof Lacquer
Description:
1. The Duty issue commands through the control system, hydraulic transmission device make the
roadblocks. rise and fall quickly, after the vehicle pass, through the inductor to detect device automatically, or manual operate the button to make the roadblocks movements;in order to effectively prevent the
vehicle force pass, the Duty need to control the lane, open or close the door.
2. The product uses the hydraulic drive technology and mandatory blocking, with load- bearing, anti-
collision capability, simple operate, flexible, hydraulic drive,smooth motion, fast, low noise, high capacity,
secure and reliable, strong bearing capacity, smooth movements functions and so on.
3. Road blocker can be used with barrier gates, smart card and attendance management systems, which
supporting the composition. (According to user requests for additional)
Specifications:
| Product specification | |
| Size | L 2500* W 920* H 760 mm |
| Rise height | 450 mm |
| Power supply | AC 110 V ~ 240 V 50 Hz |
| Storage Environment | -40 ℃ ~ 75 ℃, rain and moisture and dust |
| Color |
stainless steel color, multiple colors or adding reflective tape LED (optional) |
| Material |
304 stainless steel, 316 stainless steel, carbon steel electrophoresis optional spray paint |
| Parts of Blockers |
1,Blocker Body
2,Automatic Control Board 3,Hydraulic Pressure Integration |
| Communication Distance | ≤1200M |
| Thickness size | thickness can be customized 6-12 mm |
| Communication Connection | RS 485 interface |
| Weight | ± 100-150 kg |
| Control(optional) |
remote control, manual, card, license plate recognition and access control linkage, remote control |
| Applications |
Highway Charging,Airport,Gov. Military Area,Banks,Ports&Embassy |
| System Dynamic Power(w) | 2.2KW / 380 V |
| Rising Time | 2 ~ 4S (adjustable) |
| Falling Time | 2 ~ 4S (adjustable) |
Feature and function:
1. Customized for different users requests.
2. Controller display : LCD and LED.
3. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down.
4. Micro control technology makes blocker work stable and reliable,Easy integrate to other systems.
5. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control.
6. Advanced mature Hydraulic pressure technologies.
7. Remote control system realize wireless control up&down within 30 meters range.
8. Swiping card system: built-in card reader to control blocker up&down.
9 .Road barrier integrate with Blocker: built-in access control realize road barrier,A/C and blocker in
one-card.
10. Connected with Computer Management OR Charging Systems.
Especially, Roadblocks can be used with barrier gates, smart card and attendance management systems,
which supporting the composition. (According to user requests for additional)
Application:
Road blocker are widely used in Subway Station, Hoverport,Tourism,Sports,Exhibition, Swimming Hall,
Hotel,Residence,Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge,Management,
Special Access Control.
Package details:
|
one set needs two packages:
Part 1: the control box & the hydraulic system used the wooden package.
Part 2: the main product part used the crate package. |
 |

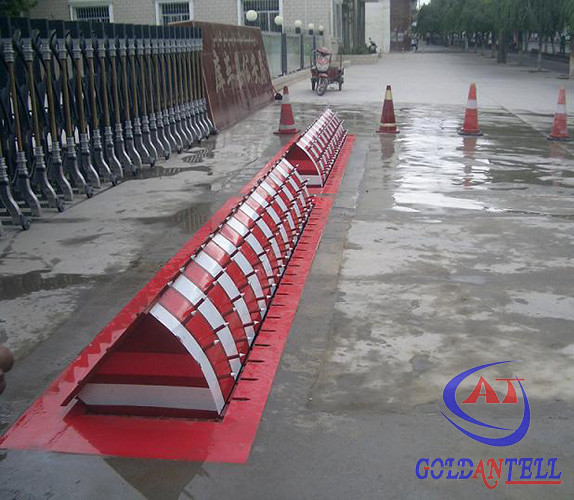

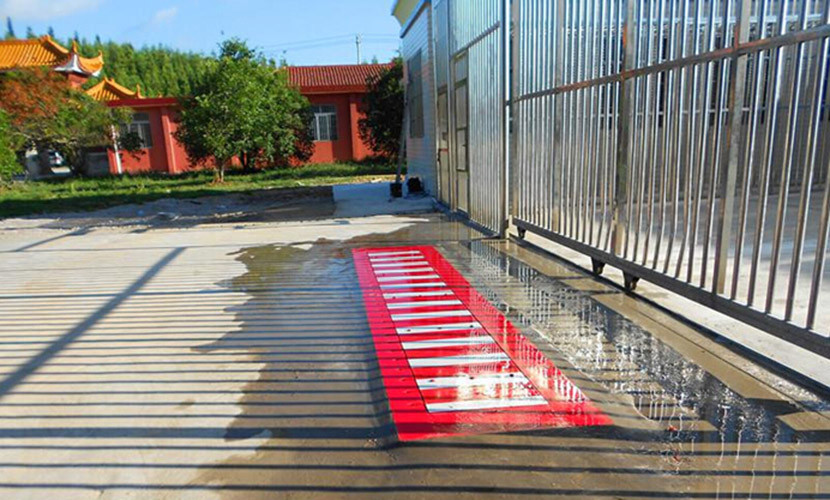

Project show:
