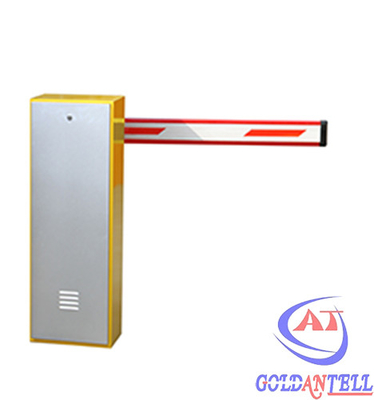

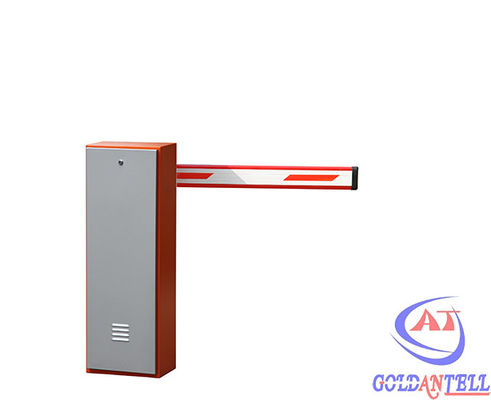

Access Control System Automatic Over Heat Protection Boom Barrier Gate With Long Life And Card Reader

Access Control System Automatic Over Heat Protection Boom Barrier Gate With Long Life And Card Reader

Descriptions:

1. Characteristics: Special movement mechanism, with no gear or belt; no need for maintenance; stable

performance and long life- span. Only 90 degree running for the boom, to avoid the accident of 360

degree running caused by abnormal failures.

2. Main functions: This equipment is controlled in wireless method, which makes its operation safe &

convenient. What you need to do is to connect the equipment with 220 V power supply and earth the

exterior case; then the system could start working without any wire arrangement or matching.

Specifications:

Usually supplied schemes:

1. Only the boom barrier gate, you can use the button or remote controller to control it.

2. Except the product, also offer the RFID card reader control system.

3. We offer a complete set of the tolling parking system, including barrier gate, ballot boxes, vehicle

detector, Entrance control system main board, System special switching power supply, parking lot system

management software with dongle , etc.

Safety notes:

1. During running, do not open the case-cover or case-door, to avoid accident.

2. Normally, users can not change the wire layout inside barrier gate. Please just connect the gate with

220 V power supply.

3. The power supply system should be equipped with leakage breaker (≥10A).

4. During arm going down, do not place anything under the booms; and no body is allowed to standing or

walking under the boom.

5. When power cuts, first, turn off the power connection; then adjust the boom to vertical position by

turning the manual swing manually.

6. Normally, do not increase or decrease the length or weight of the boom, to avoid losing balance. If

necessary, professional staff is required.

7. Normally, do not adjust positions of mechanical limit switch or photo electric limit switch.

Functions and features:

1. Special movement mechanism, with no gear or belt; no need for maintenance;stable performance and long life-span.

2. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.

3. Avoid vibrating caused by boom’s running;

4. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by abnormal failures.

5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick heat-radiation;

6. Intelligent over-heat protection system for driving mechanism, to control motor’s temperature and avoid damaging easily during frequent usage.

7. This equipment is controlled in wireless method, which makes its operation safe & convenient. What you need to do is to connect the equipment with 220 V power supply and earth the exterior case; then the system could start working without any wire arrangement or matching.

8. The gate is equipped with multiple communication interfaces. It could be connected with vehicle-detector, IR co-irradiator or other accessories, to meet the safety requirement; and charging system could also be connected to realize automatic management (optional).

Different kinds of the rod:

1. Plastic strips rod
2. Telescopic/ extendable rod
3. Connecting rod
4. Luxury rod

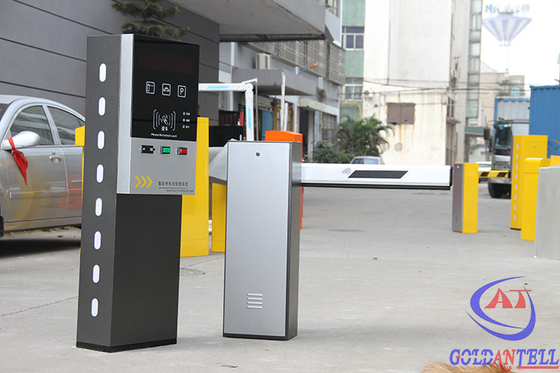

Project show:
