Remote Control Electronic Barrier Gates 1 - 4 Meter Length Barriers For Advertising
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-P47 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | AC220V±10%50HZ AC110V±10%50HZ/60HZ | Type | Advertising Paper Barrier Gate |
|---|---|---|---|
| Material | Cold Rolled Mild Steel/stainless Steel | Rail Lifting Time | 3S(fast) / 6S(ordinary) |
| Size Of Product | 540*465*1200mm | Package Size | 550*450*1290mm |
| Net Weight | 75KG | Gross Weight | 80KG |
| Highlight | retractable barrier gate,car park boom gates |
||
Product Description
Remote Control Advertising Barrier Gate With 1 - 4 Meter Length And Fashionable Shape
Technology specificaion:
| 1. Arm type | Arm: Max 4 meters, Arm size 500*2500*4000mm with advertising on it. |
| 2. Housing color | orange / blue/ yellow / red |
| 3. Housing box material | cold rolled mild steel/stainless steel |
| 4. Rail material | Aluminum Alloy |
| 5. Motor speed | 30r/min |
| 6. MCBF | ≥5,000,000 times |
| 7. Working environments | indoor, outdoor |
| 8. Relative humidity | ≤90% no condensing |
| 9. Traffic light | optional |
| 10.Control ways |
push button/remote control/access control system like charging system or RFID card reader |
| 11. Bumping bounce back | N/A |
Features & functions:
1. Special movement mechanism, with no gear or belt; no need for maintenance;stable performance and
long life-span.
2. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
3. Avoid vibrating caused by boom’s running;
4. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by abnormal
failures.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat- radiation;
6. Intelligent over- heat protection system for driving mechanism, to control motor’s temperature and
avoid damaging easily during frequent usage.
Main functions:
1. This equipment is controlled in wireless method, which makes its operation safe & convenient. What
you need to do is to connect the equipment with 220 V power supply and earth the exterior case; then the system could start working without any wire arrangement or matching.
2. The gate is equipped with multiple communication interfaces. It could be connected with vehicle-
detector, IR co- indicator or other accessories, to meet the safety requirement; and charging system could also be connected to realize automatic management (optional).
Package details
Two ways for your choice: 1. Crate package 2. Closed wooden case
Characteristics
1. Special movement mechanism, with no gear or belt; no need for maintenance; stable performance and
long life-span.
2. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
3. Avoid vibrating caused by boom’s running;
4. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by
abnormal failures.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat-radiation;
6. Intelligent over- heat protection system for driving mechanism, to control motor’s temperature and
avoid damaging easily during frequent usage.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.

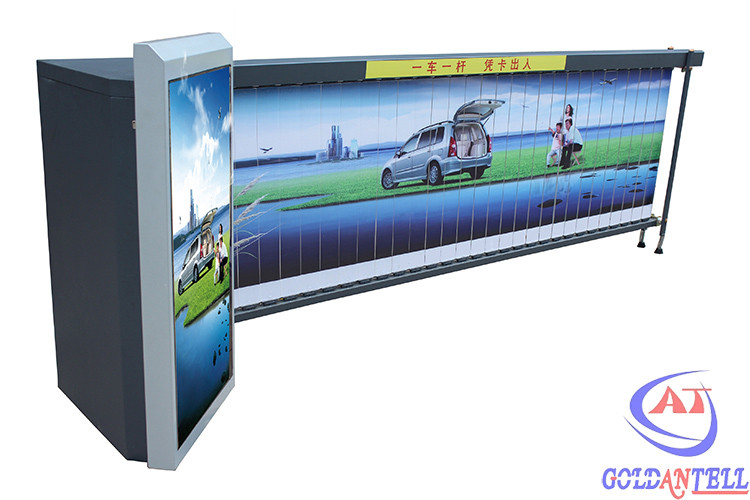

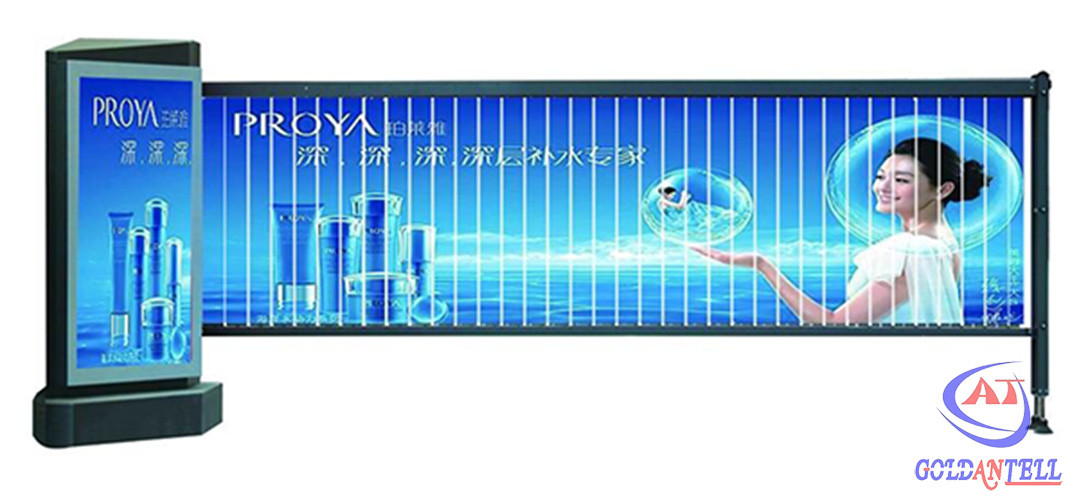

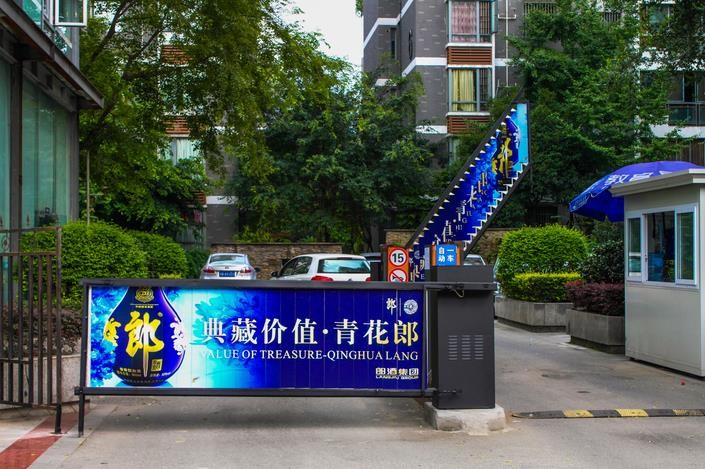

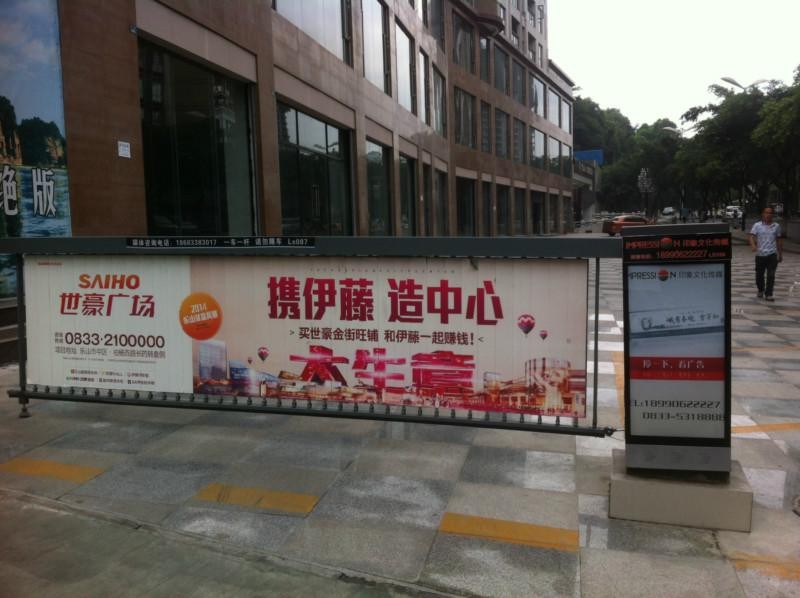

Barriers For Advertising Picture
